4730-00-727-5897
Tube To Boss Elbow
4730007275897 007275897 SAE-AS4841 AS1034 AS4841 AS1034J16 MS24401J16 AN821-16C AN821-16J

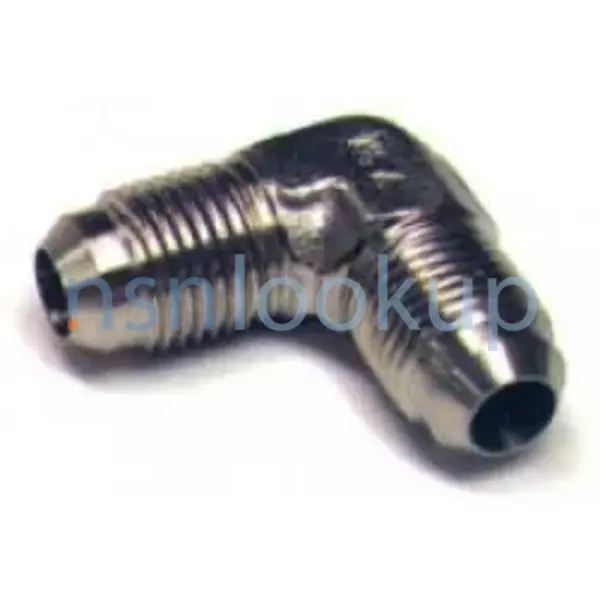

A fitting that forms an angle of less that 180 degrees (3.141 radians) from a straight flow. One connecting end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like, to form a seal at the boss. It may have side or heel inlet(s). It is designed to connect a tube or tube fitting to a boss or boss fitting on items such as tanks, housings, valve fittings, or the like. View more Tube To Boss Elbow
November 2023
24
Marketplace 4730-00-727-5897
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-727-5897 5+ Documents (More...)
MS24401J16 ELBOW,TUBE TO BOSS 150 EA NS Request Quotation AN821-16J ELBOW,TUBE TO BOSS 71 EA NS Request
TO BOSS 71 EA NS Request AS1034K0808 AS4841 AN821-8J AS1034 MS24401K8 https//www.nsnlookup.com /fsg-
Tube To Boss Elbow 4730007275897 007275897 $1 a day Upgrade your Account Upgrade 4730-00-727-5897Tube
To Boss Elbow4730007275897 007275897 SAE-AS4841 Tube To Boss Elbow 4730015162479015162479 $1 a day Upgrade
https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-727-5897 Tube To Boss Elbow 4730007275897 007275897
$1 a day Upgrade your Account Upgrade 4730-00-727-5897Tube To Boss Elbow4730007275897 007275897 SAE-AS4841
Restrictions 4730-00-727-5897
4730-00-727-5897 is a Tube To Boss Elbow that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-727-5897
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-727-5897
- US Army (A920)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- BD
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- NASA (G170)
- Effective Date:
- 1 Apr 1991
- NASA (G940)
- Effective Date:
- 1 Oct 1993
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTKEHD
- Poland (WP01)
- Effective Date:
- 1 Oct 2006
- Brazil (YA01)
- Effective Date:
- 1 Sep 2000
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 4730-00-727-5897
- Part Number
- Manufacturer
- Status
- SAE-AS4841
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- AS1034J16
- 0U583 - Sae International (Active)
- Primary Buy
- Primary Buy
- AS1034
- 0U583 - Sae International (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- AS4841
- 0U583 - Sae International (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- MS24401J16
- 96906 - Military Standards (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AN821-16C
- 88044 - Aeronautical Standards Group (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AN821-16J
- 88044 - Aeronautical Standards Group (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4730-00-727-5897
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Connection Style [AHNC]
- Connection Type [AWLS]
- Threaded External Tube All Ends
- Flow Angle [CRFY]
- 90.0 Degrees
- Material [MATT]
- Steel Comp 304 Overall
- Nominal Outside Diameter Tube Accommodated [CWFD]
- 1.000 Inches All Ends
- Nominal Thread Size [CQJX]
- 1.312 Inches All Ends
- Leg Length [AHSJ]
- 1.938 Inches Nominal All Ends
- Material Document And Classification [MDCL]
- 66 Fed Std Single Material Response Overall
- Seat Angle [CQRB]
- 37.0 Degrees All Ends
- Specification/Standard Data [ZZZK]
- 96906-Ms24401 Government Standard
- Surface Treatment [SFTT]
- Passivate Overall
- Thread Class [AAJD]
- 3A All Ends
- Thread Series Designator [THSD]
- Unj All Ends
- Thread Quantity Per Inch [CMLP]
- 12 All Ends
