4730-00-701-3921

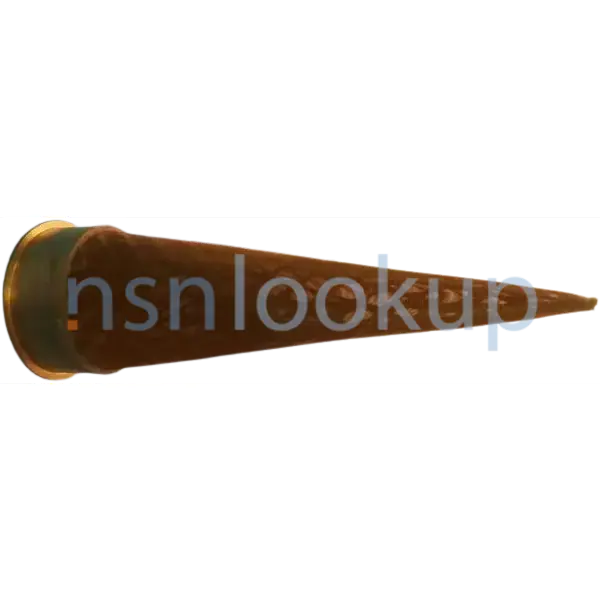

Sediment Strainer Element
4730007013921 007013921 10933071 FL 41 756 4710007013921 2910007013921 4730PL1506554
A replaceable device designed to remove solid particles from flowing liquids. The removal of particles is accomplished by porous material (metallic or non-metallic), wire mesh, perforated metal, or the like, constructed so the liquid can flow through the device while the solid particles are retained. It is designed to fit into a STRAINER, SEDIMENT (or similar cavity). It may have a reinforcement to prevent collapsing, distorting or rupturing. The degree of particles removed must be nominally rated at 50 microns, or more, or absolutely rated at 75 microns, or more. See also FILTER ELEMENT, FLUID. View more Sediment Strainer Element
March 2025
51
Marketplace 4730-00-701-3921
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-701-3921 5+ Documents (More...)
Photo 1/2 NSN 4730-00-701-3921 (Identification) 2/2 - - 1.
Updated Every Day 4730-00-701-3921 RQST Updated Every Day 4730-00-701-3921 RQST NE Related Documents
Restrictions 4730-00-701-3921
4730-00-701-3921 is a Sediment Strainer Element that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 4730-00-701-3921
- US Army (A920)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AJAZ
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXAX
- US Marine Corps (MC40)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Lithuania (WI01)
- Effective Date:
- 1 Feb 2001
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Feb 2015
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Malaysia (YW01)
- Effective Date:
- 1 Sep 2005
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Nov 2010
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 2006
- Turkey (ZW01)
- Effective Date:
- 1 Feb 2001
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Apr 1991
Approved Sources 4730-00-701-3921
- Part Number
- Manufacturer
- Status
- 10933071
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 10933071
- A9271 - Goriziane Group Spa (Active)
- Secondary Buy
- Secondary Buy
- FL 41 756
- A004J
- Secondary Buy
- Secondary Buy
- 4710007013921
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 2910007013921
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 4730PL1506554
- 9009H - Jednolity Indeks Materialowy - (Active)
- NATO Reference
- NATO Reference
- 4730007013921
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 2910007013921
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
- 10933071
- T0720 - Fnss Savunma Sistemleri Anonim (Active)
- NATO Reproduction
- NATO Reproduction
Datasheet 4730-00-701-3921
- Characteristic
- Specifications
- FIIG
- Specifications
- A523H0
- Element Outside Diameter [CSKZ]
- 2.937 Inches Nominal
- End Connection Type [AWZY]
- Flanged All Ends
- Filtering Media Design [CRXW]
- Mesh
- First End Flange Thickness [ACKU]
- 0.078 Inches Minimum And 0.108 Inches Maximum
- Mesh Size [AKSX]
- 4.0
- Length [ABRY]
- 11.125 Inches Minimum And 11.375 Inches Maximum
- Second End Flange Thickness [ACLZ]
- 0.187 Inches Nominal
- Wire Diameter [AGCW]
- 0.01000 Inches Nominal
- Style Designator [STYL]
- Conical
Weapon Systems (WSDC) 4730-00-701-3921
DLA Procurement Analysis 4730-00-701-3921
- Last Stock Position:
- 788 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-00-701-3921
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 4730-00-701-3921
Freight Information 4730-00-701-3921
4730-00-701-3921 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052440. A Sub NMFC of X. It has a NMFC Description of STRAINERS PIPE LINE I/S BODY. 4730-00-701-3921 is rated as class 60 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30350 which rates the freight between FCL and LCL. 4730-00-701-3921 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-00-701-3921 is not classified as a special type of cargo when transported by water. 4730-00-701-3921 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-00-701-3921
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 4.0" H x 4.0" W x 4.0" L
- --
- --
- Physical Protection
- Any Suitable Process
- 4.0" H x 4.0" W x 4.0" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Procurement History 4730-00-701-3921 11 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE7M418V4382
- 10 Apr 2018
- Subscribe
- 798
- Subscribe
- Subscribe
- Subscribe
- SPE7M318V0437
- 09 Nov 2017
- Subscribe
- 698
- Subscribe
- Subscribe
- Subscribe
- SPE7M317P3573
- 26 Jun 2017
- Subscribe
- 749
- Subscribe
- Subscribe
- Subscribe
- SPE7M313D50020006
- 28 Sep 2015
- Subscribe
- 668
- Subscribe
- Subscribe
- Subscribe
- SPE7M313D50020005
- 18 Sep 2015
- Subscribe
- 672
- Subscribe
- Subscribe
- Subscribe
- SPE7M313D50020004
- 08 Oct 2013
- Subscribe
- 1404
- Subscribe
- Subscribe
- Subscribe
- SPE7M313D50020003
- 04 Oct 2013
- Subscribe
- 150
- Subscribe
- Subscribe
- Subscribe
- SPE7M313D50020002
- 02 Oct 2013
- Subscribe
- 732
- Subscribe
- Subscribe
- Subscribe
- SPE7M313D50020001
- 24 Sep 2013
- Subscribe
- 405
- Subscribe
- Subscribe
- Subscribe
- SPE7M313V3095
- 19 Jul 2013
- Subscribe
- 1114
- Subscribe
- Subscribe
- Subscribe
- SPE7M313V2485
- 20 Jun 2013
- Subscribe
- 1524
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 4730-00-701-3921 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
