4730-00-690-1174

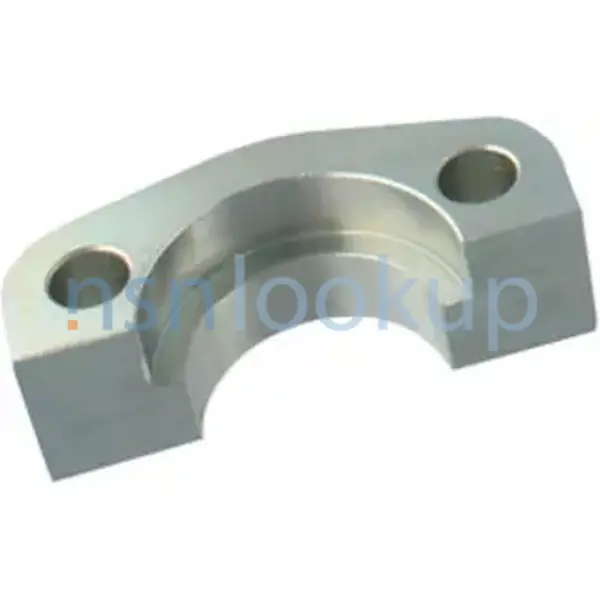

Pipe Flange
4730006901174 006901174 8395525 663096 LF216-6 32SF2 32SF-2 3H3669
An item solid or split into halves, having a threaded or unthreaded hole for the purpose of connecting or retaining a pipe, tube, or hose fitting. The face of the flange may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. If the item is unthreaded, the pipe or tube may be retained by welding, brazing, compression, or the like. Excludes FLANGE, PIPE, BLIND; FERRULE, GROOVED CLAMP COUPLING; and ADAPTER (as modified). View more Pipe Flange
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
November 2023
November 2023
NATO Update Count
62
62
NATO Data Quality
Marketplace 4730-00-690-1174
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-690-1174 5+ Documents (More...)
SleeveEnd Item Identification [AGAV] 2420-01-059-0090 https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-690-1174
Pipe Flange 4730006901174 006901174,8395525 Nsn: 2420-01-059-0090.Style Designator [STYL]Rectangular
Pipe Flange 4730006901174 006901174,8395525 Nsn: 2420-01-059-0090.Style Designator [STYL]Rectangular
CharacteristicSpecificationsFIIGA23900End Item Identification [AGAV] 2420-00-088-9384 https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-690-1174
Pipe Flange 4730006901174 006901174,8395525 Features: Supports Clark Model 290M; Tractor, Wheeled
Pipe Flange 4730006901174 006901174,8395525 Features: Supports Clark Model 290M; Tractor, Wheeled
6153 https//www.nsnlookup.com /cage Anchor Flange Company (CAGE Code 63383) DAC: 5 17 Apr 1968 4730-00-690-1174
Mechanicsville 6. 32SF2 Mlp Enterprises Inc is an Active Commercial Supplier with the Cage Code 32SF2
What is CAGE Code 32SF2?
32SF2 refers to Mlp Enterprises Inc located at 41930 Rodney Way, Mechanicsville MD 20659-3727, United
What is CAGE Code 32SF2?
32SF2 refers to Mlp Enterprises Inc located at 41930 Rodney Way, Mechanicsville MD 20659-3727, United
1967 4730-00-922-2308 Swivel Retaining Pipe Flange 16SF2RNCC: 5 | RNVC: 9 | DAC: 5 17 Apr 1968 4730-00-690-1174
Restrictions 4730-00-690-1174
4730-00-690-1174 is a Pipe Flange that does not have a nuclear hardened feature, but does have another critical feature or features such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-690-1174
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-690-1174
- US Army (A920)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZBF
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- US Marine Corps (MC40)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
- Austria (WB01)
- Effective Date:
- 1 Aug 2006
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Kuwait (YK01)
- Effective Date:
- 1 Feb 2015
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Jun 2015
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 4730-00-690-1174
- Part Number
- Manufacturer
- Status
- 8395525
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 663096
- 77237 - Dana Off Highway Products, Llc (Active)
- Secondary Buy
- Secondary Buy
- LF216-6
- 46717 - Pettibone Llc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 32SF2
- 63906 - Contitech Usa, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 32SF-2
- 63383 - Anchor Flange Company (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 3H3669
- 11083 - Caterpillar Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 663096
- 12603 - Clark Equipment Co (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 4730006901174
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 32SF2
- 70434 - Anchor Swan Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4730-00-690-1174
- Characteristic
- Specifications
- FIIG
- Specifications
- A23300
- End Item Identification [AGAV]
- Field Artillery Ammunition Support Vehicle (Faagv) (M992). Forrestal Class Cv, Nimitz Class Cvn. M-109 Series Howitzer. (Rt41aa) Crane. M-88 Series Recovery Vehicle.
- Bolt Hole Quantity [AECS]
- 4
- Bolt Hole Diameter [AHNX]
- 0.531 Inches Nominal
- Center To Center Distance Between Bolt Holes Along Width [ADUY]
- 1.844 Inches Nominal
- Center To Center Distance Between Bolt Holes Along Length [ADUZ]
- 3.062 Inches Nominal
- Criticality Code Justification [CRTL]
- Feat
- Face Seating Surface Condition [AKWE]
- Machined
- Flange Length [AFQN]
- 3.750 Inches Nominal
- Flange Width [AGFF]
- 1.859 Inches Nominal
- Flange Section Style [AJEM]
- Recessed Face, Raised Neck
- Material [MATT]
- Steel
- Neck Height [AJEG]
- 0.422 Inches Nominal
- Recess Diameter [ABMD]
- 2.844 Inches Nominal
- Recess Depth [ABMH]
- 0.355 Inches Nominal
- Outside Edge To Bolt Hole Center Distance Along Length [ADVE]
- 0.953 Inches Nominal
- Outside Edge To Bolt Hole Center Distance Along Width [ADVD]
- 0.468 Inches Nominal
- Special Features [FEAT]
- Weapon System Essential. Features: Supports Clark Model 290M; Tractor, Wheeled, Ind., Diesel Driven; Med Dbp, Nsn: 2420-00-088-9384, W/Rops. Nsn: 2420-01-059-0090.
- Style Designator [STYL]
- Rectangular, With Bolt Holes
- Surface Treatment [SFTT]
- Cadmium Or Oxide
- Thickness [ABNM]
- 0.625 Inches Nominal
