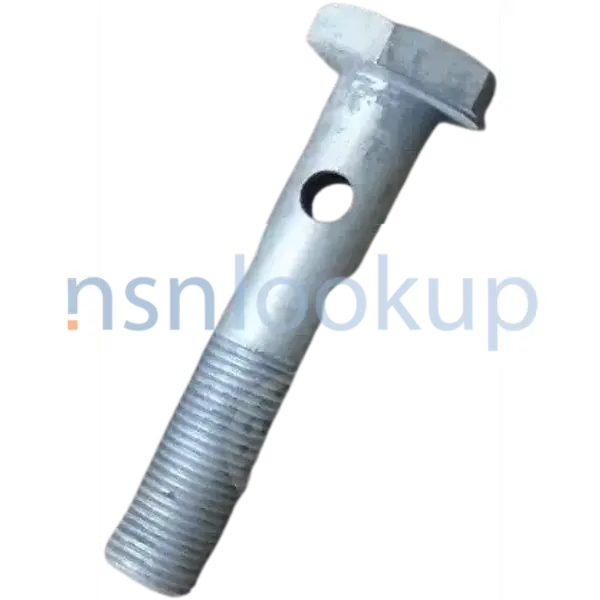

Fluid Passage Bolt
4730006795682 006795682 8761091 587198
A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE. View more Fluid Passage Bolt
June 2025
30
Marketplace 4730-00-679-5682
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-679-5682 5+ Documents (More...)
Photo 1/4 NSN 4730-00-679-5682 (Identification) 2/4 NSN 4730-00-679-5682 (Identification) 3/4 NSN
RQST NE Updated Every Day 4730-00-679-5682 RQST Updated Every Day 4730-00-679-5682 RQST NE Related
Restrictions 4730-00-679-5682
4730-00-679-5682 is a Fluid Passage Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4730-00-679-5682
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-679-5682
- US Army (A920)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZ
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- US Marine Corps (MC40)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Brazil (YA01)
- Effective Date:
- 1 Mar 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Australia (ZA01)
- Effective Date:
- 1 Aug 2011
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
- Turkey (ZW01)
- Effective Date:
- 1 Jul 2003
Approved Sources 4730-00-679-5682
- Part Number
- Manufacturer
- Status
- 8761091
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 8761091
- 14351 - Teledyne Continental Motors (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 587198
- 02978 - Renk America Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 4730006795682
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4730-00-679-5682
- Characteristic
- Specifications
- FIIG
- Specifications
- A121A0
- Distance From Bolt End To Hole Center [BBKK]
- 2.840 Inches Nominal
- Distance From First Radial Hole Center To End Of Bolt [BBLB]
- 2.060 Inches Nominal
- Distance From Second Radial Hole Center To End Of Bolt [BBLC]
- 1.620 Inches Nominal
- Body Style [AAQL]
- Plain
- Concentric Hole Depth [AAWX]
- 2.240 Inches Minimum And 2.300 Inches Maximum
- Concentric Hole Diameter [AAXC]
- 0.280 Inches Nominal
- Cotter Pin Hole Diameter [ADDV]
- 0.070 Inches Nominal
- First Diameter From Wrenching Feature [BBKL]
- 0.491 Inches Minimum And 0.499 Inches Maximum
- First End Connection Type [ACKM]
- Threaded External Tube
- First End Style Designator [ACKN]
- Plain
- First End Nominal Thread Size [CQYM]
- 0.500 Inches
- First End Thread Direction [ACLL]
- Right-Hand
- First End Thread Class [ACLK]
- 2A
- First End Thread Length [ATKZ]
- 1.120 Inches Nominal
- First End Thread Quantity Per Inch [CQKK]
- 20
- First End Thread Series Designator [CQMM]
- Unf
- First Radial Fluid Hole Diameter [BBKY]
- 0.250 Inches Nominal
- Hardness Rating [CQFM]
- 26.0 Rockwell C Nominal
- Material Document And Classification [MDCL]
- Qq-S-633,C1137 Thru C1141 Fed Spec Single Material Response
- Material [MATT]
- Steel
- Length From Bearing Surface Of Wrenching Feature To End Of First Diameter [BBKR]
- 1.560 Inches Nominal
- Length From Bearing Surface Of Wrenching Feature To Bolt End [BBLD]
- 2.680 Inches Nominal
- Second Radial Fluid Hole Diameter [BBKZ]
- 0.250 Inches Nominal
- Overall Length [ABHP]
- 2.940 Inches Nominal
- Width Across Flats [ASDB]
- 0.850 Inches Minimum And 0.875 Inches Maximum
- Wrenching Feature Height [BBLF]
- 0.260 Inches Nominal
- Wrenching Feature Style [BBDF]
- Hexagon
- Surface Treatment [SFTT]
- Cadmium
