4730-00-639-9654

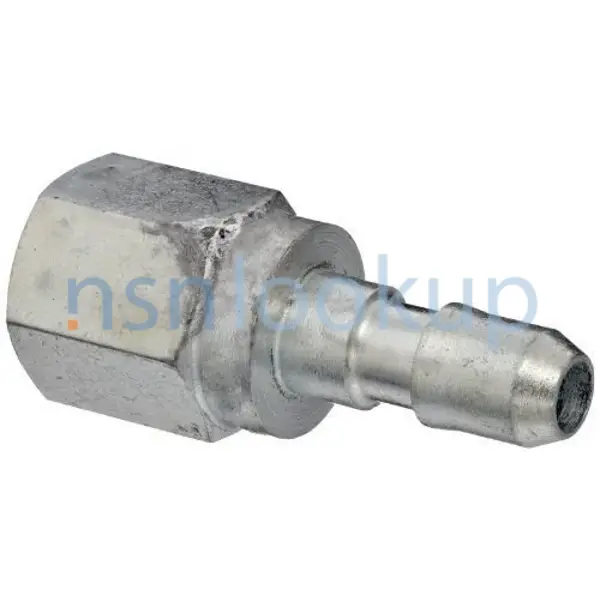

Quick Disconnect Coupling Half
4730006399654 006399654 A2303-12-52PC118 6355 CP16 307116
A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE. View more Quick Disconnect Coupling Half
November 2023
18
Marketplace 4730-00-639-9654
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-639-9654 5+ Documents (More...)
CP16 COUPLING HALF,QUICK DISCONNECT 11 EA NS Request Quotation Subscribe to View Vendor Details... 6355
Subscribe to View Vendor Details... 6355 Updated Every Day 4730-00-639-9654 RQST Updated Every Day 4730
/www.nsnlookup.com /fsg-53/fsc-5340/it 5340-15-113-4432 Butt Hinge Leaf 5340151134432151134432 68-307116
Quick Disconnect Coupling Half 4730006399654 Subscribe to View Vendor Details... 6355 COUPLING
/www.nsnlookup.com /fsg-53/fsc-5340/it 5340-15-113-4433 Butt Hinge Leaf 5340151134433151134433 68-307116
Quick Disconnect Coupling Half 4730006399654 113-4432 Part NumberManufacturerStatus68-307116 https
HALF,QUICK DISCONNECT 45 EA NS Request Quotation Subscribe to View Vendor Details... 6355 COUPLING HALF
,QUICK DISCONNECT 99 EA NS Request Quotation Subscribe to View Vendor Details... 6355 COUPLING HALF,QUICK
Restrictions 4730-00-639-9654
4730-00-639-9654 is a Quick Disconnect Coupling Half that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-639-9654
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-639-9654
- US Army (A920)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZ
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTHD
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 4730-00-639-9654
- Part Number
- Manufacturer
- Status
- A2303-12-52PC118
- Manufacturer
- 81996 - Us Army Aviation And Missile Command (Active)
- Primary Buy
- Primary Buy
- 6355
- 58499 - 893 Mfg, Llc (Active)
- Secondary Buy
- Secondary Buy
- CP16
- 70270 - Stewart-Warner Alemite Sales Co Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 307116
- 95879 - Stewart-Warner Alemite Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- CP16
- 95879 - Stewart-Warner Alemite Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4730-00-639-9654
- Characteristic
- Specifications
- FIIG
- Specifications
- A531T0
- Connection Style [AHNC]
- Plain All Ends
- Connection Type [AWLS]
- External Quick Disconnect All Ends
- Connection Type [AWLS]
- Threaded Internal Pipe First Fluid End Connection
- Features Provided [CBBL]
- Self-Sealing
- Material [MATT]
- Steel Body
- Nominal Thread Size [CQJX]
- 0.250 Inches All Ends
- Leg Length [AHSJ]
- 0.406 Inches Nominal
- Quick Disconnect Method [ADLN]
- Twist-Lock All Ends
- Quick Disconnect Nominal Size [ADLP]
- 0.375 Inches All Ends
- Overall Length [ABHP]
- 1.688 Inches Minimum And 1.750 Inches Maximum
- Style Designator [STYL]
- Male Coupling Half
- Surface Treatment [SFTT]
- Cadmium Body
- Thread Series Designator [THSD]
- Nptf All Ends
