4730-00-627-6094

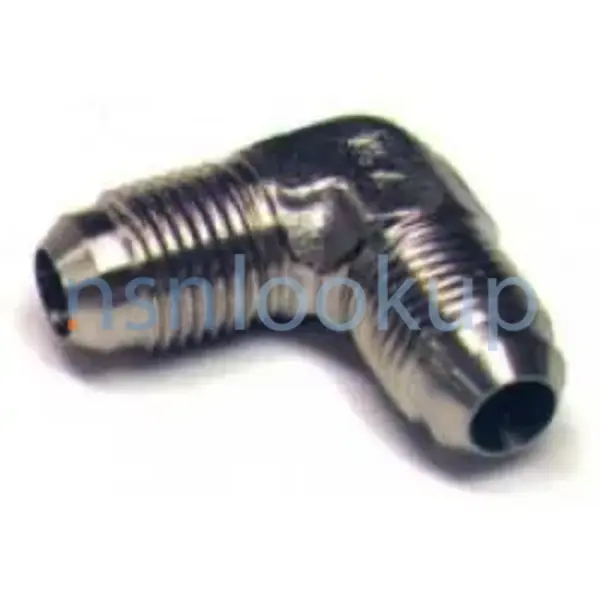

Tube To Boss Elbow

4730006276094 006276094 SAE-AS4841 6EBTXSS 2039-6-6 259-2039-6-6 6EBTX-SS AS1034J0606 AS4841 9026272 AN821-6J AS1034 MS24401J6

A fitting that forms an angle of less that 180 degrees (3.141 radians) from a straight flow. One connecting end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like, to form a seal at the boss. It may have side or heel inlet(s). It is designed to connect a tube or tube fitting to a boss or boss fitting on items such as tanks, housings, valve fittings, or the like. View more Tube To Boss Elbow

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
November 2023

NATO Update Count
37

NATO Data Quality

4730-00-627-6094 ELBOW,TUBE TO BOSS 4730006276094 006276094 1/1 — 4730-00-627-6094 Photo 1/1

Marketplace 4730-00-627-6094

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

AS1034 ELBOW,TUBE TO BOSS 4 EA NS

AS4841 ELBOW,TUBE TO BOSS 33 EA NS

Subscribe to View Vendor Details...

AS4841 ELBOW,TUBE TO BOSS 9 EA NS

Subscribe to View Vendor Details...

AN821-6J ELBOW,TUBE TO BOSS 11 EA NS

Subscribe to View Vendor Details...

MS24401J6 ELBOW,TUBE TO BOSS 5 EA NS

Subscribe to View Vendor Details...

9026272 ELBOW,TUBE TO BOSS 105 EA NS

AN821-6J ELBOW,TUBE TO BOSS 62 EA NS

AS1034J0606 ELBOW,TUBE TO BOSS 87 EA NS

MS24401J6 ELBOW,TUBE TO BOSS 67 EA NS

Subscribe to View Vendor Details...

AN821-6J ELBOW,TUBE TO BOSS 2 EA NS

Subscribe to View Vendor Details...

AN821-6J ELBOW,TUBE TO BOSS 3 EA NS

Subscribe to View Vendor Details...

AN821-6J ELBOW,TUBE TO BOSS 22 EA NS

MS24401J6 ELBOW,TUBE TO BOSS 70 EA NS

Subscribe to View Vendor Details...

AS4841 ELBOW,TUBE TO BOSS 55 EA NS

Subscribe to View Vendor Details...

AS4841 ELBOW,TUBE TO BOSS 2 EA NS

Updated Every Day

4730-00-627-6094 RQST NE

Updated Every Day

4730-00-627-6094 RQST

Updated Every Day

4730-00-627-6094 RQST NE

Restrictions 4730-00-627-6094

4730-00-627-6094 is a Tube To Boss Elbow that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.

Import and Export 4730-00-627-6094

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 4730-00-627-6094

US Army (A920)
Effective Date:: 1 Apr 2005
Former MOE Rule:: A181
Supplementary Receivers:: AZBD; AMC 1 AMSC T IMC Z IMCACTY CD

US Air Force (FXGC)
Effective Date:: 1 Apr 2005
Former MOE Rule:: FXAX; AMC 1 AMSC T IMC Z IMCACTY SX

NASA (G170)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

NASA (G880)
Effective Date:: 1 Apr 1991; AMC 0 AMSC 0 AAC C

US Marine Corps (MC40)
Effective Date:: 1 Apr 2005
Former MOE Rule:: MC01; AMC 1 AMSC T IMC Z IMCACTY PA

US Navy (N9BC)
Effective Date:: 1 Apr 2005
Former MOE Rule:: N9CD
Supplementary Collaborators:: GTKEHD; AMC 1 AMSC T IMC Z IMCACTY GH

Poland (WP01)
Effective Date:: 1 Oct 2006

Brazil (YA01)
Effective Date:: 1 Mar 2010

Spain (YB01)
Effective Date:: 1 Apr 1991

Columbia (YC01)
Effective Date:: 1 Jul 2015

Israel (YD01)
Effective Date:: 1 Aug 2016

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Malaysia (YW01)
Effective Date:: 1 Apr 1991

Canada (ZC01)
Effective Date:: 1 Apr 1991

Germany (ZG01)
Effective Date:: 1 Apr 1991

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Jun 1997

Norway (ZT01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 2008

Turkey (ZW01)
Effective Date:: 1 Nov 2005

Approved Sources 4730-00-627-6094

Part Number
Manufacturer
Status
SAE-AS4841: 0U583 - Sae International (Active); Incomplete Reference; RNCC 3 RNVC 1 DAC E
AS1034J0606: 0U583 - Sae International (Active); Primary Buy; RNCC 3 RNVC 2 DAC E
AS4841: 0U583 - Sae International (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
9026272: 18876 - Us Army Aviation And Missile Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC X
AS4841: 81343 - Society Of Automotive Engineers Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
AN821-6J: 17341 - Tech Aero Inc (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
AN821-6J: 22995 - Crown Fitting Co Inc (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
AS1034: 0U583 - Sae International (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
AS1034J0606: 81343 - Society Of Automotive Engineers Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
AS1034: 81343 - Society Of Automotive Engineers Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
MS24401J6: 96906 - Military Standards (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
AN821-6J: 88044 - Aeronautical Standards Group (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
6EBTXSS: 50948 - Parker Hannifin Corp Stratoflex Div (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
2039-6-6: 01276 - Danfoss Power Solutions Ii, Llc (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
259-2039-6-6: 01276 - Danfoss Power Solutions Ii, Llc (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
6EBTX-SS: 4N161 - Western Fluid Components Inc (Active); Advisory Reference; RNCC C RNVC 1 DAC 6

Datasheet 4730-00-627-6094

Characteristic
Specifications
FIIG: A080B0
Material [MATT]: Steel Comp 304 Overall
Material Document And Classification [MDCL]: 66 Fed Std Single Material Response Overall
Surface Treatment [SFTT]: Passivate Overall
Surface Treatment Document And Classification [STDC]: Mil-S-5002 Mil Spec Single Treatment Response Inside
Surface Treatment Document And Classification [STDC]: Mil-F-14072,E300,Ty2 Mil Spec Single Treatment Response Outside
Connection Type [AWLS]: Threaded External Tube All Ends
Connection Style [AHNC]: Flared (Tube) All Ends
Seat Angle [CQRB]: 37.0 Degrees All Ends
Nominal Outside Diameter Tube Accommodated [CWFD]: 0.375 Inches All Ends
Thread Series Designator [THSD]: Unf All Ends
Nominal Thread Size [CQJX]: 0.562 Inches All Ends
Thread Class [AAJD]: 3A All Ends
Leg Length [AHSJ]: 1.062 Inches Nominal All Ends
Flow Angle [CRFY]: 90.0 Degrees
