4730-00-618-5372

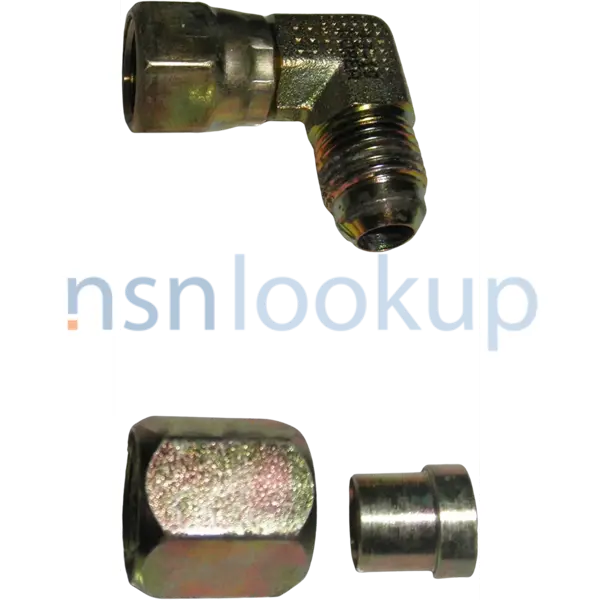

Tube Elbow
4730006185372 006185372 MIL-DTL-18866 MS51521A6 2071A-6-6S 9958585 6-6 070221CA 826-6B 6C6XS RAS2000-6CAD 6 C6X-S 11K5 00711-K-5 3500SW6 53677C3 C5506X6 06051500 347/20927 6SW6153 LA-690-13 MIL-F-18866 RAS2006 6C6BXS 4730006783494 J514 10086148
A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE. View more Tube Elbow
November 2023
120
Marketplace 4730-00-618-5372
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-618-5372 5+ Documents (More...)
) Secondary Buy RNCC 5 RNVC 2 DAC 5 6 C6X-S https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-618-
5372 Tube Elbow 4730006185372 006185372 Elbow4730006185372 006185372 MIL-DTL-18866 MS51521A6 2071A-6-
Tube Elbow 4730006185372 006185372 RAS2000-6CAD 6 C6X-S 11K5 00711-K-5 3500SW6 53677C3 C5506X6
06051500 347/20927 6SW6153 LA-690-13 MIL-F-18866 MS51521A6 ELBOW,TUBE 65 EA NS Request Quotation MILF18866
MS51521A6 ELBOW,TUBE 99 EA NS Request Quotation Subscribe to View Vendor Details...
MS51521A6 ELBOW,TUBE 65 EA NS Request Quotation 6C6BX-S ELBOW,TUBE 36 EA NS Request Quotation MILF18866
MILF18866 ELBOW,TUBE RQST NS Request Quotation MS51521A6 ELBOW,TUBE 65 EA NS Request Quotation MIL-F-
ELBOW,TUBE RQST NS Request Quotation J514 ELBOW,TUBE 640 EA NS Request Quotation MIL-F-18866 ELBOW,TUBE
MS51521A6 ELBOW,TUBE 99 EA NS Request Quotation Subscribe to View Vendor Details...
MILF18866 ELBOW,TUBE RQST NS Request Quotation J514 ELBOW,TUBE 640 EA NS Request Quotation 6C6BX-S ELBOW
Restrictions 4730-00-618-5372
4730-00-618-5372 is a Tube Elbow that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4730-00-618-5372
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-618-5372
- US Army (A920)
- Effective Date:
- 1 Apr 2006
- Supplementary Receivers:
- AJCLBFBDAZ
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2006
- US Marine Corps (MC40)
- Effective Date:
- 1 Apr 2006
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2006
- Supplementary Collaborators:
- GTKEHD
- Austria (WB)
- Austria (WB01)
- Effective Date:
- 1 Feb 2005
- Finland (WF)
- Finland (WF01)
- Effective Date:
- 1 Feb 2008
- Lithuania (WI)
- Lithuania (WI01)
- Effective Date:
- 1 Feb 2001
- Poland (WP)
- Poland (WP01)
- Effective Date:
- 1 Oct 2006
- Brazil (YA)
- Brazil (YA01)
- Effective Date:
- 1 Sep 2000
- Spain (YB)
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ)
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Morocco (YP)
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Australia (ZA)
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB)
- Belgium (ZB01)
- Effective Date:
- 1 Feb 2008
- France (ZF)
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG)
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH)
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK)
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP)
- Portugal (ZP01)
- Effective Date:
- 1 Feb 2013
- Italy (ZR)
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS)
- Greece (ZU)
- Greece (ZU01)
- Effective Date:
- 1 Jul 1995
- Turkey (ZW)
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
- NATO Maintenance and Supply Agency (ZX)
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Apr 1991
- United States of America (ZZ)
Approved Sources 4730-00-618-5372
- Part Number
- Manufacturer
- Status
- MS51521A6
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-18866
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- MS51521A6
- 22031 - Air-Way Manufacturing Company (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- MS51521A6
- 98660 - Lube Devices Inc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 2071A-6-6S
- 01276 - Danfoss Power Solutions Ii, Llc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- MS51521A6
- 00624 - Eaton Aeroquip Llc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 9958585
- 18876 - Us Army Aviation And Missile Command (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- MS51521A6
- 01276 - Danfoss Power Solutions Ii, Llc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 6-6 070221CA
- 0U583 - Sae International (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 347/20927
- KC8A3 - Jcb Service (Active)
- Secondary Buy
- Secondary Buy
- MS51521A6
- R1120 - Satair A/S (Active)
- Secondary Buy
- Secondary Buy
- 6SW6153
- 59257 - Jm Fittings, Llc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- LA-690-13
- 46717 - Pettibone Llc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- MS51521A6
- 30780 - Parker-Hannifin Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MIL-F-18866
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- RAS2006
- 98660 - Lube Devices Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 6C6BXS
- 45681 - Parker-Hannifin Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MS51521A6
- 30327 - Imperial (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 4730006185372
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 4730006783494
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 6-6 070221CA
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- J514
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- MS51521A6
- 93188 - L And L Mfg Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- MS51521A6
- 98441 - Parker Hannifin Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MS51521A6
- 79470 - Dana Corp (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- MS51521A6
- 13174 - Parker Hannifin Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 10086148
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
- 826-6B
- 54214 - Bowes Mfg Inc (Active)
- Advisory Reference
- Advisory Reference
- 6C6XS
- 98441 - Parker Hannifin Corp (Active)
- Advisory Reference
- Advisory Reference
- RAS2000-6CAD
- 98660 - Lube Devices Inc (Active)
- Advisory Reference
- Advisory Reference
- 6 C6X-S
- 36621 - Parker Hannifin Canada (Active)
- Advisory Reference
- Advisory Reference
- 11K5
- 77237 - Dana Off Highway Products, Llc (Active)
- Advisory Reference
- Advisory Reference
- 00711-K-5
- 16662 - Lift Parts Mfg Co Inc (Replaced)
- Advisory Reference
- Advisory Reference
- 11K5
- 12603 - Clark Equipment Co (Replaced)
- Advisory Reference
- Advisory Reference
- 3500SW6
- 97576 - Lenz Inc (Active)
- Advisory Reference
- Advisory Reference
- 53677C3
- 78640 - Mitsubishi Caterpillar Forklift (Active)
- Advisory Reference
- Advisory Reference
- 6C6XS
- 45681 - Parker-Hannifin Corporation (Active)
- Advisory Reference
- Advisory Reference
- C5506X6
- 79470 - Dana Corp (Replaced)
- Advisory Reference
- Advisory Reference
- 06051500
- 54217 - Terex Aerials Inc (Obsolete)
- Advisory Reference
- Advisory Reference
Datasheet 4730-00-618-5372
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Connection Style [AHNC]
- Flared (Tube) 2Nd End
- Connection Style [AHNC]
- Swivel Nut, Flare (Tube) Style 3 Optional End 1St End
- Connection Type [AWLS]
- Threaded External Tube 2Nd End
- Connection Type [AWLS]
- Threaded Internal Tube 1St End
- Furnished Items And Quantity [TMQY]
- 1 Tube Coupling Nut W/Sleeve
- End Item Identification [AGAV]
- Used On Continental Diesel Engine
- Flow Angle [CRFY]
- 90.0 Degrees
- Material [MATT]
- Steel Comp 12L14 Overall Or Steel Comp 1010 Overall
- Maximum Operating Temp [AEHZ]
- 400.0 Deg Fahrenheit Single Response
- Maximum Operating Pressure [CQGM]
- 3000.0 Pounds Per Square Inch Single Response
- Media For Which Designed [MEDA]
- Air 2Nd Response
- Media For Which Designed [MEDA]
- Hydraulic Fluid 1St Response
- Nominal Outside Diameter Tube Accommodated [CWFD]
- 0.375 Inches All Ends
- Nominal Thread Size [CQJX]
- 0.562 Inches All Ends
- Nondefinitive Spec/Std Data [ZZZT]
- 8C Figure
- Leg Length [AHSJ]
- 1.062 Inches Nominal 2Nd End
- Leg Length [AHSJ]
- 1.250 Inches Nominal 1St End
- Material Document And Classification [MDCL]
- 66,Carbon Steel,0.20 Percent Max Fed Std Single Material Response Overall
- Seat Angle [CQRB]
- 37.0 Degrees All Ends
- Special Features [FEAT]
- Grumman Aircraft Corp. A-10 Aircraft Model
- Specification/Standard Data [ZZZK]
- 81343-J514 Professional/Industrial Association Standard And 81349-Mil-F-1866 Government Specification And 96906-Ms51521 Government Standard
- Surface Treatment Document And Classification [STDC]
- J514 Assn Std Single Treatment Response Overall And Qq-P-416, Ty 2, Cl 3 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall
- Thread Class [AAJD]
- 2A 2Nd End
- Thread Class [AAJD]
- 2B 1St End
- Thread Series Designator [THSD]
- Unf All Ends
Weapon Systems (WSDC) 4730-00-618-5372
DLA Procurement Analysis 4730-00-618-5372
- Last Stock Position:
- 1371 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-00-618-5372
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- 0
- Reversal Of Phrase Code Z 4730-00-914-7312
- 0
- US Marine Corps (DM)
- M
- 0
- Reversal Of Phrase Code Z 4730-01-042-9044
- 0
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
NATO Stock Numbers Related to 4730-00-618-5372
Freight Information 4730-00-618-5372
4730-00-618-5372 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052190. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FITTI. 4730-00-618-5372 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30000 which rates the freight between FCL and LCL. 4730-00-618-5372 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-00-618-5372 is not classified as a special type of cargo when transported by water. 4730-00-618-5372 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Procurement History 4730-00-618-5372 7 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE7M523FZ086
- 01 May 2023
- Subscribe
- 235
- Subscribe
- Subscribe
- Subscribe
- SPE7M523FZ086P00001
- 01 May 2023
- Subscribe
- 21
- Subscribe
- Subscribe
- Subscribe
- SPE7M321P3828
- 19 May 2021
- Subscribe
- 2556
- Subscribe
- Subscribe
- Subscribe
- SPE7L318V8084
- 08 Jun 2018
- Subscribe
- 445
- Subscribe
- Subscribe
- Subscribe
- SPE7L317V8740
- 25 Jul 2017
- Subscribe
- 283
- Subscribe
- Subscribe
- Subscribe
- SPE7L317V5460
- 28 Mar 2017
- Subscribe
- 1872
- Subscribe
- Subscribe
- Subscribe
- SPM7L313M4497
- 30 Apr 2013
- Subscribe
- 1000
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 4730-00-618-5372 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
