4730-00-596-3947
Packing Nut
4730005963947 005963947 51449B 7800192 117491EPC36
An item having internal and/or external machine thread(s) (threads other than pipe or hose series), specifically designed to retain, by means or groove(s), shoulder(s), and the like, packing and/or a packing gland within a stuffing box. See also BUSHING, MACHINE THREAD; INVERTED NUT, TUBE COUPLING; and NUT, TUBE COUPLING. Excludes PACKING NUT, STUFFING TUBE; and use with electrical cable, and LOCKNUT, PIPE. View more Packing Nut
November 2023
7
Marketplace 4730-00-596-3947
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-596-3947 1+ Documents (More...)
United States (US) 4. 4730-00-596-3947 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 4730-00-596-3947 RQST Updated Every Day 4730-00-596-3947 RQST NE Related
Restrictions 4730-00-596-3947
4730-00-596-3947 is a Packing Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-596-3947
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-596-3947
- US Navy (N9BC)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTHD
- Greece (ZU01)
- Effective Date:
- 1 Jun 2005
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 4730-00-596-3947
- Part Number
- Manufacturer
- Status
- 7800192
- Manufacturer
- 58529 - The Babcock & Wilcox Company (Replaced)
- Original Design
- Original Design
- 51449B
- 05073 - Babcock & Wilcox Co (Active)
- Secondary Buy
- Secondary Buy
- 117491EPC36
- 05073 - Babcock & Wilcox Co (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 7800192
- 05073 - Babcock & Wilcox Co (Active)
- Advisory Reference
- Advisory Reference
Datasheet 4730-00-596-3947
- Characteristic
- Specifications
- FIIG
- Specifications
- T385-E
- Casehardening Indicator [AASG]
- Not Casehardened
- Material [MATT]
- Steel Corrosion Resisting
- Largest Inside Diameter [AGRU]
- 1.812 Inches Nominal
- Length To Shoulder [BRQL]
- 0.625 Inches Nominal
- Screw Thread Series Designator [AJYP]
- Un
- Screw Thread Location [BBMM]
- External
- Smallest Inside Diameter [BSPX]
- 1.510 Inches Nominal
- Overall Length [ABHP]
- 1.000 Inches Nominal
- Width Across Flats [ASDB]
- 2.250 Inches Nominal

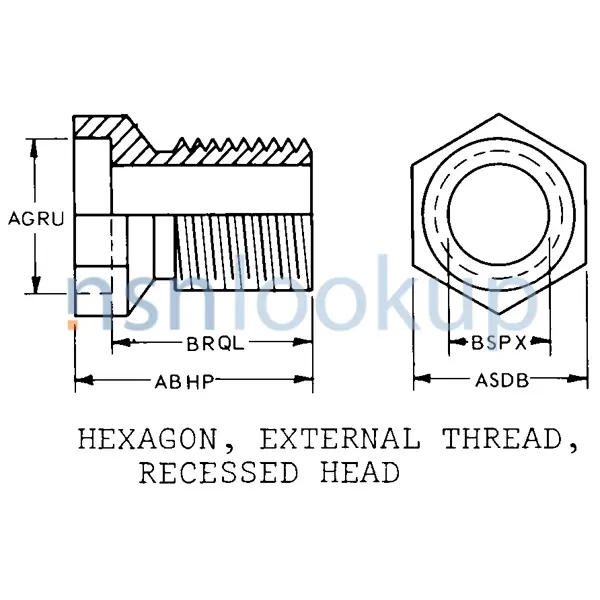

- Style Designator [STYL]
- Hexagon, External Thread, Recessed Head
- Thread Class [AAJD]
- 2A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.406 Inches Nominal
- Thread Size [ABUJ]
- 2.125In-16
Weapon Systems (WSDC) 4730-00-596-3947
DLA Procurement Analysis 4730-00-596-3947
- Last Stock Position:
- 12 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-00-596-3947
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Mar 2023
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Feb 2020
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Navy (DN)
- N
- X
- Formerly 4520
- X
- Defense Logistics Agency (DS)
- I
- X
- Formerly 4520
- X
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4730-00-596-3947
Freight Information 4730-00-596-3947
4730-00-596-3947 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 4730-00-596-3947 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 4730-00-596-3947 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-00-596-3947 is not classified as a special type of cargo when transported by water. 4730-00-596-3947 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-00-596-3947
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- No Requirement
- Not Applicable
- MIL-DTL-117, Type III, Class C, Style 1, Medium Duty, Waterproof, Greaseproof, Opaque Bag
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Procurement History 4730-00-596-3947 1 Records
Contracting Technical Data File (CTDF) 4730-00-596-3947 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- T
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
