4730-00-595-4417

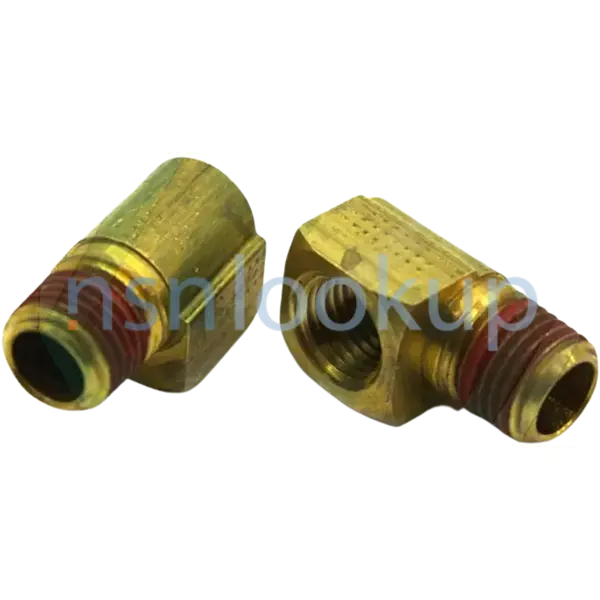

Pipe Elbow
4730005954417 005954417 8924168 PC190367 190367 MM-51.107A
A fitting that forms an angle of less than 180 degrees (3.141 radians) from the straight flow. Both connecting ends have standard pipe threads or are unthreaded and designed to accommodate a pipe. It may have side or heel inlet(s). See also ELBOW, TUBE; and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE. Excludes BEND, SOIL PIPE. View more Pipe Elbow
