4730-00-554-7831

Tube To Hose Straight Adapter

4730005547831 005547831 MIL-DTL-8789 MS28760-6 MIL-F-8789C 313-6 R28760-6 4730PL0732888

An adapter having machine threads (straight threads other than pipe or hose series) designed to accommodate a tube on one end or an unthreaded end designed to accommodate a tube. The other end has standard hose threads, an incomplete part of a threaded end connection that grips the hose directly, or is unthreaded and designed to accommodate a hose. It is designed to join a tube or tube fitting to a hose or hose fitting. View more Tube To Hose Straight Adapter

4730-00-554-7831 ADAPTER,STRAIGHT,TUBE TO HOSE 4730005547831 005547831

Managed by United States
NSN Created on 1 Jan 1961
Data Last Changed
November 2023
NATO Update Count
59
NATO Data Quality
4730-00-554-7831 ADAPTER,STRAIGHT,TUBE TO HOSE 4730005547831 005547831 1/1

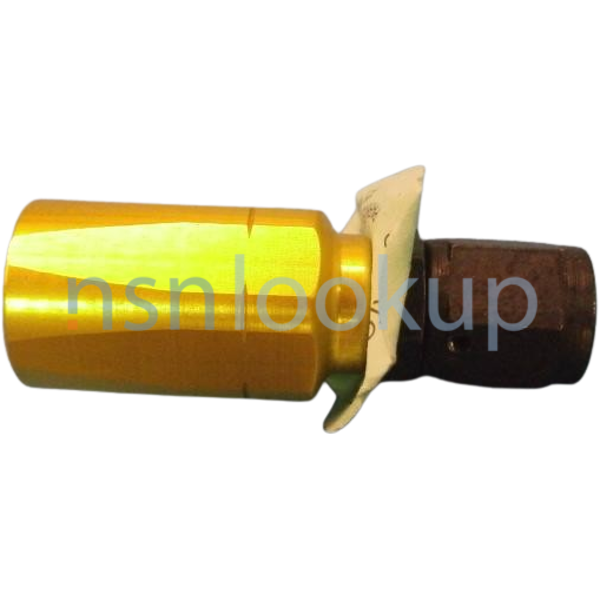

NSN 4730-00-554-7831 (Generic Image) 1/1

4730-00-554-7831 Stock and Availability Marketplace 4730-00-554-7831

Need Help?
Request a Quotation from participating marketplace vendors
FindItParts.com Updated Every Day
313-6 RQST NE FindItParts
eBay Updated Every Day
4730-00-554-7831 RQST NE eBay
eBay Updated Every Day
4730-00-554-7831 RQST eBay
Amazon Updated Every Day
4730-00-554-7831 RQST NE Amazon

4730-00-554-7831 Related Documents Related Documents 4730-00-554-7831 5+ Documents (More...)

ADAPTER,STRAIGHT,TUBE TO HOSE 3 EA NS Request Quotation MIL-DTL-8789 ADAPTER,STRAIGHT ,TUBE MIL-DTL
https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-554-7831 Tube To Hose Straight Adapter 4730005547831
Upgrade your Account Upgrade 4730-00-554-7831Tube To Hose Straight Adapter4730005547831 005547831 MIL-DTL
ADAPTER,STRAIGHT,TUBE TO HOSE 3 EA NS Request Quotation MIL-DTL-8789 ADAPTER,STRAIGHT ,TUBE MIL-DTL
https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-554-7831 Tube To Hose Straight Adapter 4730005547831
Upgrade your Account Upgrade 4730-00-554-7831Tube To Hose Straight Adapter4730005547831 005547831 MIL-DTL
ADAPTER,STRAIGHT,TUBE TO HOSE 3 EA NS Request Quotation MIL-DTL-8789 ADAPTER,STRAIGHT ,TUBE MIL-DTL
https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-554-7831 Tube To Hose Straight Adapter 4730005547831
Upgrade your Account Upgrade 4730-00-554-7831Tube To Hose Straight Adapter4730005547831 005547831 MIL-DTL
ADAPTER,STRAIGHT,TUBE TO HOSE 3 EA NS Request Quotation MIL-DTL-8789 ADAPTER,STRAIGHT ,TUBE MIL-DTL
https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-554-7831 Tube To Hose Straight Adapter 4730005547831
Upgrade your Account Upgrade 4730-00-554-7831Tube To Hose Straight Adapter4730005547831 005547831 MIL-DTL
ADAPTER,STRAIGHT,TUBE TO HOSE 3 EA NS Request Quotation MIL-DTL-8789 ADAPTER,STRAIGHT ,TUBE MIL-DTL
https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-554-7831 Tube To Hose Straight Adapter 4730005547831
Upgrade your Account Upgrade 4730-00-554-7831Tube To Hose Straight Adapter4730005547831 005547831 MIL-DTL

4730-00-554-7831 Demil Restrictions 4730-00-554-7831

DEMIL: A | DEMILI: 1 | CRITICALITY: X | HMIC: N | PMIC: A | EDC: | ADPEC:

4730-00-554-7831 is a Tube To Hose Straight Adapter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

4730-00-554-7831 End Users End Users 4730-00-554-7831

US Army (A920)
Effective Date:
1 Apr 2006
Former MOE Rule:
A181
Supplementary Receivers:
AZBF
US Air Force (FXGC)
Effective Date:
1 Apr 2006
Former MOE Rule:
FXAX
US Marine Corps (MC40)
Effective Date:
1 Apr 2006
Former MOE Rule:
MC01
US Navy (N9BC)
Effective Date:
1 Apr 2006
Former MOE Rule:
NICD
Supplementary Collaborators:
GTKEHD
Austria (WB01)
Effective Date:
1 Feb 2005
Poland (WP01)
Effective Date:
1 Oct 2006
Brazil (YA01)
Effective Date:
1 Sep 2000
Spain (YB01)
Effective Date:
1 Apr 1991
Singapore (YJ01)
Effective Date:
1 Apr 1991
Kuwait (YK01)
Effective Date:
1 Feb 2015
Saudi Arabia (YS01)
Effective Date:
1 Feb 2015
Malaysia (YW01)
Effective Date:
1 Aug 1997
Thailand (YY01)
Effective Date:
1 Feb 2015
Belgium (ZB01)
Effective Date:
1 Apr 1991
Canada (ZC01)
Effective Date:
1 Apr 1991
New Zealand (ZE01)
Effective Date:
1 Apr 1991
France (ZF01)
Effective Date:
1 Apr 1991
Republic of Korea (ZH01)
Effective Date:
1 Apr 1991
Netherlands (ZN01)
Effective Date:
1 Apr 1991
Portugal (ZP01)
Effective Date:
1 Aug 1997
Denmark (ZS01)
Effective Date:
1 Apr 1991
Norway (ZT01)
Effective Date:
1 Apr 1991
Greece (ZU01)
Effective Date:
1 Apr 1991
Turkey (ZW01)
Effective Date:
1 Nov 1998

4730-00-554-7831 Manufacturers Approved Sources 4730-00-554-7831

4730-00-554-7831 Technical Data Datasheet 4730-00-554-7831

Characteristic
Specifications
FIIG
A080B0
End Item Identification [AGAV]
Aircraft; Galaxy C-5
Connection Style [AHNC]
Gripping Nipple (Nose) 2Nd End
Connection Style [AHNC]
Swivel Nut, Flare (Tube) Style 3 Optional End 1St End
Connection Type [AWLS]
Threaded External Hose Gripping 2Nd End
Connection Type [AWLS]
Threaded Internal Tube 1St End
Furnished Items And Quantity [TMQY]
1 Hose Coupling Nut
Material [MATT]
Aluminum Socket
Material [MATT]
Steel Nipple
Material [MATT]
Steel Nut
Nominal Inside Diameter Hose Accommodated [CWDW]
0.344 Inches 2Nd End
Nominal Outside Diameter Hose Accommodated [CWDZ]
0.766 Inches 2Nd End
Nominal Outside Diameter Tube Accommodated [CWFD]
0.375 Inches 1St End
Nominal Overall Length [CWFR]
3.281 Inches
Nominal Thread Size [CQJX]
0.562 Inches 1St End
Seat Angle [CQRB]
37.0 Degrees 1St End
Specification/Standard Data [ZZZK]
96906-Ms28760-6 Government Standard
Surface Treatment [SFTT]
Anodize Nipple
Surface Treatment [SFTT]
Anodize Nut
Surface Treatment [SFTT]
Cadmium Socket
Thread Class [AAJD]
3B 1St End
Thread Series Designator [THSD]
Unf 1St End

4730-00-554-7831 Weapon Systems (WSDC) Weapon Systems (WSDC) 4730-00-554-7831

4730-00-554-7831 Stock, Inventory and Procurement DLA Procurement Analysis 4730-00-554-7831

Last Stock Position:
498 In Stock
DLA Administrative Lead Time:
Subscribe
DLA Production Lead Time:
Subscribe
Subscribe to View DLA Inventory and Forecast...

4730-00-554-7831 Management Data Management Data 4730-00-554-7831

Effective Date
Organization
Unit of Issue
Unit Price
Qty Unit Pack
Oct 2022
Department of the Navy (DN)
EA
Subscribe
1
Oct 2021
Department of the Navy (DN)
EA
Subscribe
1
Oct 2020
Defense Logistics Agency (DS)
EA
Subscribe
1
Oct 2019
Department of the Air Force (DF)
EA
Subscribe
1

Army Army

Materiel Category and Inventory Manager:
J
Ground Forces Support Materiel (DLA/GSA Items)
Appropriation and Budget Activity:
2
Stock Fund Secondary Items
Management Inventory Segment:
2
Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
Weapons System / End Item / Homogeneous Group:
00
DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
Accounting Requirements:
X
Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force Air Force

Fund:
SF
Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
Budget:
9
57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
Aggregation Code:
SX
SICA RESIDUAL MMAC-OC-ALC
Price Validation Code:
V
The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
Expendability
Recoverability
Repairability:
N
Expendable. Condemn at User. Stock Fund (except Munitions).

Navy Navy

Cognizance:
9B
Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

4730-00-554-7831 Related Items NATO Stock Numbers Related to 4730-00-554-7831

4730-00-554-7831 Freight Data Freight Information 4730-00-554-7831

4730-00-554-7831 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052190. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FITTI. 4730-00-554-7831 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30000 which rates the freight between FCL and LCL. 4730-00-554-7831 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-00-554-7831 is not classified as a special type of cargo when transported by water. 4730-00-554-7831 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

4730-00-554-7831 Packaging Data Packaging Data 4730-00-554-7831

Responsible Activity
Packaging Data Source
Primary Inventory Control Activity (PICA)
--

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation
--
--
Bare Metal Item
Over 10lb
Less than 85G
No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying
1
--
--
--
Physical Protection
Any Suitable Process
Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking
No Requirement
--
No Requirement
Not Applicable
Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container
Any Suitable Fiber Box

4730-00-554-7831 Procurement History Procurement History 4730-00-554-7831 1 Records

Contract
Date
CAGE
Quantity
Net Price
Std Price
SPE7M422P2780
20 Apr 2022
Subscribe
267
Subscribe
Subscribe

4730-00-554-7831 Contracting Technical Data File (CTDF) Contracting Technical Data File (CTDF) 4730-00-554-7831 October 2021

Criticality and Quality

Critical Item Code:
X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):
F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:
N
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:
