4730-00-542-5906

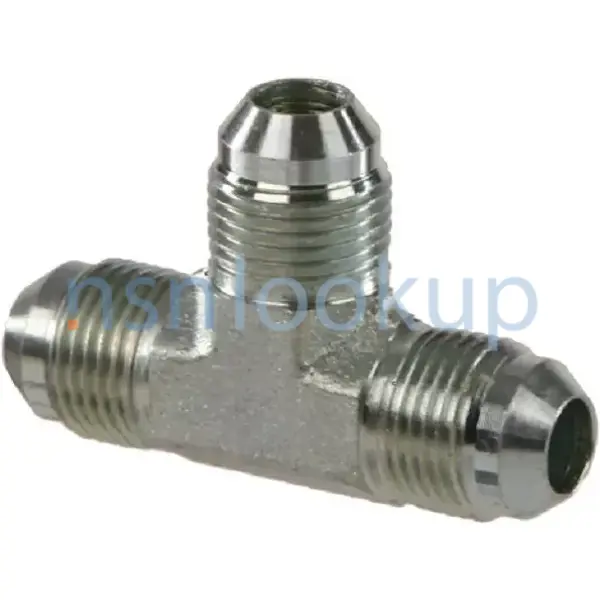

Tube Tee
4730005425906 005425906 MIL-DTL-18866 14558 HCE-769 MS51510A4 SB-2417-4 4-4 070401CA C5705X4 033T-4-4 MILF18866 844-FS J514 4JBTXS 10086143 72532768
A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The connections have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube, or are unthreaded and designed to accommodate a tube. It may have side inlet(s). It is used as a junction at the intersection of a tube or tube fitting. View more Tube Tee
November 2023
80
Marketplace 4730-00-542-5906
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-542-5906 5+ Documents (More...)
MILF18866 ADAPTER,STRAIGHT,TUBE TO BOSS 7 EA NS Request Quotation J514 ADAPTER,STRAIGHT,TUBE TO BOSS
Tube Tee 4730005425906 005425906 14558 HCE-769 MS51510A4 SB-2417-4 4-4 070401CA C5705X4 033T-4-
MILF18866 ELBOW,PIPE TO TUBE 7 EA NS Request Quotation MIL-F-18866 ELBOW,PIPE TO TUBE 12 EA NS Request
/fsg-47/fsc-4730/us 4730-00-542-5906 Tube Tee 4730005425906 005425906 Upgrade for $1 a day Upgrade your
5906Tube Tee4730005425906 005425906 MIL-DTL-18866 Quotation MILF18866 TEE,TUBE RQST NS Request Quotation
J514 TEE,TUBE 640 EA NS Request Quotation MIL-F-18866 MILF18866 TEE,TUBE 7 EA NS Request Quotation MIL-F
TEE,TUBE 3 EA NS Request Quotation Subscribe to View Vendor Details... 14558 TEE,TUBE 2 EA NS Request
MILF18866 TEE,TUBE RQST NS Request Quotation J514 TEE,TUBE 640 EA NS Request Quotation MS51510B4 TEE,
MILF18866 ELBOW,TUBE 7 EA NS Request Quotation MIL-F-18866 ELBOW,TUBE 12 EA NS Request Quotation Updated
Tube Tee 4730005425906 005425906 Upgrade for $1 a day Upgrade your Account Upgrade 4730-00-542-
Restrictions 4730-00-542-5906
4730-00-542-5906 is a Tube Tee that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4730-00-542-5906
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-542-5906
- US Army (A920)
- Effective Date:
- 1 Apr 2005
- Supplementary Receivers:
- AZBFBD
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- US Marine Corps (MC40)
- Effective Date:
- 1 Apr 2005
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Supplementary Collaborators:
- GTHD
- Finland (WF)
- Finland (WF01)
- Effective Date:
- 1 Feb 2008
- Poland (WP)
- Poland (WP01)
- Effective Date:
- 1 Oct 2006
- Brazil (YA)
- Brazil (YA01)
- Effective Date:
- 1 Sep 2000
- Spain (YB)
- Spain (YB01)
- Effective Date:
- 1 May 1997
- Morocco (YP)
- Morocco (YP01)
- Effective Date:
- 1 Dec 2011
- Australia (ZA)
- Australia (ZA01)
- Effective Date:
- 1 Aug 2011
- France (ZF)
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG)
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH)
- Republic of Korea (ZH01)
- Effective Date:
- 1 Aug 1998
- United Kingdom (ZK01)
- Effective Date:
- 1 Feb 2016
- Portugal (ZP)
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR)
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS)
- Denmark (ZS01)
- Effective Date:
- 1 Sep 1997
- Greece (ZU)
- Greece (ZU01)
- Effective Date:
- 1 May 2006
- Turkey (ZW)
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
- NATO Maintenance and Supply Agency (ZX)
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Apr 1991
- United States of America (ZZ)
Approved Sources 4730-00-542-5906
- Part Number
- Manufacturer
- Status
- MS51510A4
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-18866
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- SB-2417-4
- 51227 - Control Systems Co (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 4-4 070401CA
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- C5705X4
- 79470 - Dana Corp (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 033T-4-4
- 30780 - Parker-Hannifin Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 033T-4-4
- 98441 - Parker Hannifin Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MILF18866
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 844-FS
- 30327 - Imperial (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 4730005425906
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- J514
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 72532768
- 64678 - Daimler Truck North America Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 4JBTXS
- 45681 - Parker-Hannifin Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 10086143
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
- 14558
- 30076 - Hyster-Yale Group, Inc. (Active)
- Advisory Reference
- Advisory Reference
- HCE-769
- 30076 - Hyster-Yale Group, Inc. (Active)
- Advisory Reference
- Advisory Reference
- 72532768
- 54209 - Iowa Mold Tooling Co Inc (Active)
- Informational Drawing
- Informational Drawing
Datasheet 4730-00-542-5906
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Connection Style [AHNC]
- Flared (Tube) All Ends
- Connection Type [AWLS]
- Threaded External Tube All Ends
- Furnished Items And Quantity [TMQY]
- 3 Tube Coupling Nut W/Sleeve
- Material [MATT]
- Steel Comp 12L14 Overall
- Maximum Operating Temp [AEHZ]
- 400.0 Deg Fahrenheit Single Response
- Maximum Operating Pressure [CQGM]
- 3000.0 Pounds Per Square Inch Single Response
- Media For Which Designed [MEDA]
- Air 1St Response
- Media For Which Designed [MEDA]
- Hydraulic Fluid 2Nd Response
- Nominal Outside Diameter Tube Accommodated [CWFD]
- 0.250 Inches All Ends
- Nominal Thread Size [CQJX]
- 0.438 Inches All Ends
- Nondefinitive Spec/Std Data [ZZZT]
- 5B Figure
- Leg Length [AHSJ]
- 0.891 Inches Nominal All Ends
- Material Document And Classification [MDCL]
- 66 Fed Std Single Material Response Overall
- Seat Angle [CQRB]
- 37.0 Degrees All Ends
- Specification/Standard Data [ZZZK]
- 93906-Ms51510 Government Standard And 81349-Mil-F-18866 Government Specification And 81343-J514 Professional/Industrial Association Standard
- Surface Treatment Document And Classification [STDC]
- J514 Assn Std Single Treatment Response Overall And Qq-P-416, Ty 2, Cl 3 Fed Spec Single Treatment Response Overall
- Thread Class [AAJD]
- 2A All Ends
- Thread Series Designator [THSD]
- Unf All Ends
Weapon Systems (WSDC) 4730-00-542-5906
DLA Procurement Analysis 4730-00-542-5906
- Last Stock Position:
- 24 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-00-542-5906
- Effective Date
