4730-00-457-1984

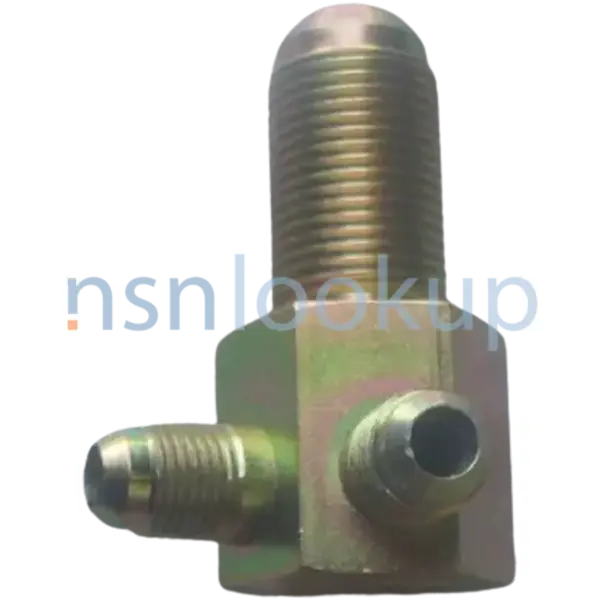

Tube Elbow
4730004571984 004571984 8761449
A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE. View more Tube Elbow
September 2024
26
Marketplace 4730-00-457-1984
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-457-1984 4+ Documents (More...)
RQST NE Updated Every Day 4730-00-457-1984 RQST Updated Every Day 4730-00-457-1984 RQST NE Related
Documents 4730-00-457-1984 4+ Documents ( More... ) https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730
Restrictions 4730-00-457-1984
4730-00-457-1984 is a Tube Elbow that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
