4730-00-439-6033
Quick Disconnect Coupling Half
4730004396033 004396033 5SP13 FMSP13-5 H52RKC43Q
A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE. View more Quick Disconnect Coupling Half
November 2023
12
Marketplace 4730-00-439-6033
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-439-6033 5+ Documents (More...)

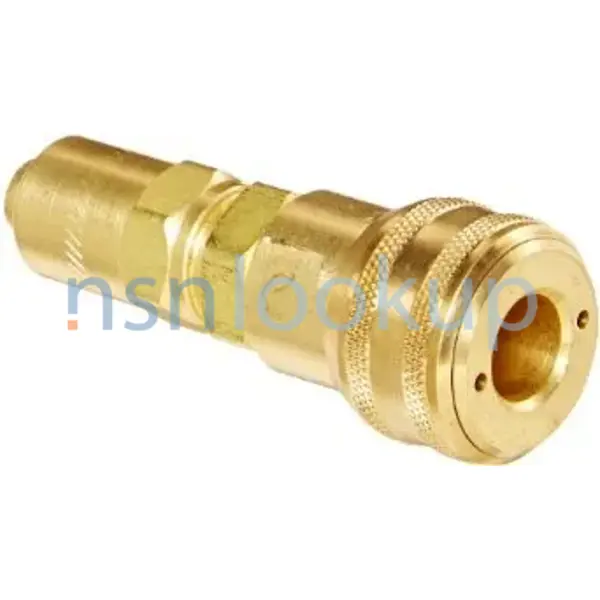

Photo 1/2 NSN 4730-00-439-6033 (Identification) 2/2 - - 1.
United States (US) 4. 4730-00-439-6033 Marketplace Restrictions Approved Sources Datasheet Management
Half 9999991469033 Items to 9999-99-146-9033 4730-00-435-6886 4730-00-184-9288 4730-00-432-4887 4730-00-439-6033
Half 9999996012947 Items to 9999-99-601-2947 4730-00-435-6886 4730-00-184-9288 4730-00-432-4887 4730-00-439-6033
Restrictions 4730-00-439-6033
4730-00-439-6033 is a Quick Disconnect Coupling Half that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-439-6033
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-439-6033
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HD
- Poland (WP01)
- Effective Date:
- 1 Sep 2006
- Portugal (ZP01)
- Effective Date:
- 1 Jul 1996
- Greece (ZU01)
- Effective Date:
- 1 Apr 2008
Approved Sources 4730-00-439-6033
- Part Number
- Manufacturer
- Status
- 5SP13
- Manufacturer
- 73992 - Tuthill Corp Hansen Coupling Div (Active)
- Primary Buy
- Primary Buy
- FMSP13-5
- 14127 - Foster Manufacturing Co, Inc. (Active)
- Secondary Buy
- Secondary Buy
- H52RKC43Q
- 14233 - Hofmann Engineering Co Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4730-00-439-6033
- Characteristic
- Specifications
- FIIG
- Specifications
- A531T0
- Connection Style [AHNC]
- Hose Gripping Nipple All Ends
- Connection Type [AWLS]
- Internal Quick Disconnect All Ends
- Connection Type [AWLS]
- Threaded External Hose Gripping First Fluid End Connection
- Furnished Items And Quantity [TMQY]
- 1 Seal
- Features Provided [CBBL]
- Self-Sealing
- Material [MATT]
- Copper Alloy And Steel Body
- Nominal Inside Diameter Hose Accommodated [CWDW]
- 0.500 Inches All Ends
- Leg Length [AHSJ]
- 1.430 Inches Minimum
- Quick Disconnect Method [ADLN]
- Spring Push-Pull All Ends
- Quick Disconnect Nominal Size [ADLP]
- 0.656 Inches All Ends
- Overall Length [ABHP]
- 3.578 Inches Minimum And 4.094 Inches Maximum
- Style Designator [STYL]
- Male Coupling Half
- Surface Treatment [SFTT]
- Chromate Zinc Body
Weapon Systems (WSDC) 4730-00-439-6033
DLA Procurement Analysis 4730-00-439-6033
- Last Stock Position:
- 9 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-00-439-6033
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4730-00-439-6033
Freight Information 4730-00-439-6033
4730-00-439-6033 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052185. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FIT. 4730-00-439-6033 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29950 which rates the freight between FCL and LCL. 4730-00-439-6033 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-00-439-6033 is not classified as a special type of cargo when transported by water. 4730-00-439-6033 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Contracting Technical Data File (CTDF) 4730-00-439-6033 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Y
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
