4730-00-431-9307

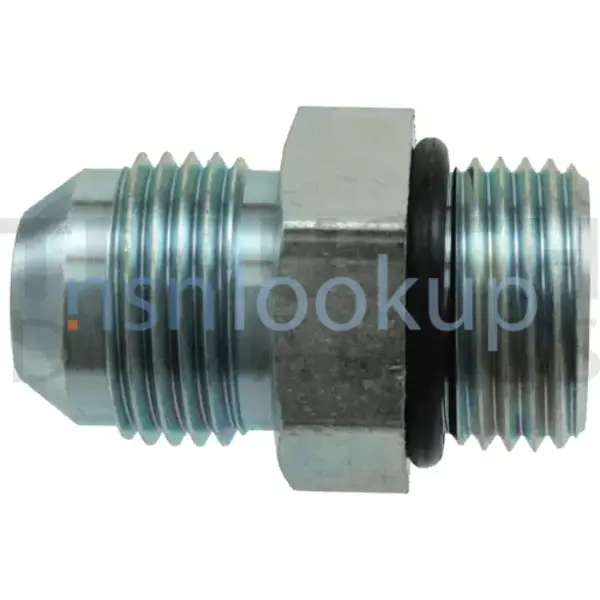

Tube To Boss Straight Adapter

4730004319307 004319307 MIL-DTL-18866 J514 MS51525A5 5F5BX-S 5-5 070120CA 705LV13 C5315X5 1040-5-5 5F5XS 218-5045 7253-467 79183 5-8SA2 0930802-4 705LV14 MS51525A5Z 9410201

An adapter having machine threads (straight threads other than pipe or hose series) designed to accommodate a tube on one end or an unthreaded end designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. It is designed to join a tube or tube fitting to a boss or boss fitting in a straight line on items such as tanks, housings, valve fittings, and the like. See also COUPLING, TUBE and NIPPLE, TUBE. View more Tube To Boss Straight Adapter

Managed by United States

NSN Created on 14 May 1974

Data Last Changed
November 2023

NATO Update Count
55

NATO Data Quality

4730-00-431-9307 ADAPTER,STRAIGHT,TUBE TO BOSS 4730004319307 004319307 1/1 — NSN 4730-00-431-9307 (Generic Image) 1/1

Marketplace 4730-00-431-9307

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

J514. ADAPTER,STRAIGHT,TUBE TO BOSS 3 EA NS

J5-14 ADAPTER,STRAIGHT,TUBE TO BOSS 6 EA NS

Subscribe to View Vendor Details...

MS51525A5Z ADAPTER,STRAIGHT,TUBE TO BOSS 9 EA NS

Subscribe to View Vendor Details...

J514 ADAPTER,STRAIGHT,TUBE TO BOSS 640 EA NS

MS51525A5Z ADAPTER,STRAIGHT,TUBE TO BOSS 75 EA NS

MS51525A5 ADAPTER,STRAIGHT,TUBE TO BOSS 472 EA NS

Subscribe to View Vendor Details...

4730-00-431-9307 ADAPTER,STRAIGHT,TUBE TO BOSS RQST NS

Subscribe to View Vendor Details...

J514 ADAPTER,STRAIGHT,TUBE TO BOSS 416 EA NS

4730-00-431-9307 RQST NE

Updated Every Day

4730-00-431-9307 RQST

Updated Every Day

4730-00-431-9307 RQST NE

Restrictions 4730-00-431-9307

4730-00-431-9307 is a Tube To Boss Straight Adapter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

Import and Export 4730-00-431-9307

Schedule B: Subscribe to View Schedule B
HTS Code: Subscribe to View HTS Code

End Users 4730-00-431-9307

US Army (A920)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A181
Supplementary Receivers:: AZCTBD; AMC 1 AMSC G IMC Z IMCACTY CD

US Air Force (FXGC)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXAX; AMC 1 AMSC G IMC Z IMCACTY SX

US Marine Corps (MC40)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC01; AMC 1 AMSC G IMC Z IMCACTY PA

US Navy (N9BC)
Effective Date:: 1 Apr 2006
Former MOE Rule:: NICD
Supplementary Collaborators:: GTHD; AMC 1 AMSC G IMC Z IMCACTY GH

Lithuania (WI01)
Effective Date:: 1 Feb 2001

Brazil (YA01)
Effective Date:: 1 Aug 2000

Spain (YB01)
Effective Date:: 1 May 1997

Morocco (YP01)
Effective Date:: 1 Dec 2011

Australia (ZA01)
Effective Date:: 1 Jun 1995

Republic of Korea (ZH01)
Effective Date:: 1 Sep 2011

Portugal (ZP01)
Effective Date:: 1 Feb 2013

Greece (ZU01)
Effective Date:: 1 Jul 1995

Turkey (ZW01)
Effective Date:: 1 Oct 1999

Approved Sources 4730-00-431-9307

Part Number
Manufacturer
Status
MS51525A5Z: 96906 - Military Standards (Active); Definitive Standard; RNCC 2 RNVC 2 DAC E
MIL-DTL-18866: 81349 - Military Specifications (Active); Incomplete Standard; RNCC 4 RNVC 1 DAC E
J514: 0U583 - Sae International (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 3
MS51525A5: 00624 - Eaton Aeroquip Llc (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 3
MS51525A5: 22031 - Air-Way Manufacturing Company (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 3
5F5BX-S: 30780 - Parker-Hannifin Corporation (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC E
5-5 070120CA: 0U583 - Sae International (Active); Incomplete Secondary Reference; RNCC 5 RNVC 1 DAC 3
MS51525A5: R1120 - Satair A/S (Active); Secondary Buy; RNCC 5 RNVC 2 DAC 6
J514: 81343 - Society Of Automotive Engineers Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
MS51525A5: 30780 - Parker-Hannifin Corporation (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
5F5BX-S: 98441 - Parker Hannifin Corp (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
MS51525A5: 30327 - Imperial (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
4730004319307: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
9410201: 29510 - Komatsu American Intl Co (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC A
MS51525A5: 79470 - Dana Corp (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
5-5 070120CA: 81343 - Society Of Automotive Engineers Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
4730004319307: A00AM - E.C.A Etablissement Central Des (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9
MS51525A5: 01276 - Danfoss Power Solutions Ii, Llc (Active); Advisory Reference; RNCC C RNVC 1 DAC 5
705LV13: 05415 - Linde Lift Truck Corp. (Replaced); Advisory Reference; RNCC C RNVC 1 DAC 5
C5315X5: 01276 - Danfoss Power Solutions Ii, Llc (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
1040-5-5: 36621 - Parker Hannifin Canada (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
5F5XS: 45681 - Parker-Hannifin Corporation (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
218-5045: 10988 - Cnh Industrial America Llc (Active); Advisory Reference; RNCC C RNVC 1 MEDALS DAC E
7253-467: 24161 - Gates Corporation (Active); Advisory Reference; RNCC C RNVC 1 DAC E
79183: 30076 - Hyster-Yale Group, Inc. (Active); Advisory Reference; RNCC C RNVC 1 DAC 6
5-8SA2: 59257 - Jm Fittings, Llc (Obsolete); Advisory Reference; RNCC C RNVC 1 DAC A
0930802-4: 0AHU0 - Kalmar Ac Inc (Active); Advisory Reference; RNCC C RNVC 1 DAC E
705LV14: 05415 - Linde Lift Truck Corp. (Replaced); Advisory Reference; RNCC C RNVC 1 DAC E

Datasheet 4730-00-431-9307

Characteristic
Specifications
FIIG: A080B0
Connection Style [AHNC]: External Seat For Gasket Seal (Boss) 2Nd End
Connection Style [AHNC]: Flared (Tube) 1St End
Connection Type [AWLS]: Threaded External Boss 2Nd End
Connection Type [AWLS]: Threaded External Tube 1St End
Furnished Items And Quantity [TMQY]: 1 Coupling Sleeve And 1 Preformed Packing And 1 Tube Coupling Nut
Material [MATT]: Steel Overall
Maximum Operating Pressure [CQGM]: 3000.0 Pounds Per Square Inch Single Response
Maximum Operating Temp [AEHZ]: 107.2 Deg Celsius Single Response
Media For Which Designed [MEDA]: Hydraulic Fluid Single Response
Nominal Outside Diameter Tube Accommodated [CWFD]: 0.312 Inches 1St End
Nominal Overall Length [CWFR]: 1.234 Inches
Nominal Thread Size [CQJX]: 0.500 Inches All Ends
Nondefinitive Spec/Std Data [ZZZT]: 6B Figure
Seat Angle [CQRB]: 37.0 Degrees 1St End
Specification/Standard Data [ZZZK]: 81343-J514 Professional/Industrial Association Standard
Surface Treatment Document And Classification [STDC]: Qq-P-416,Type 2,Class 3 Fed Spec Single Treatment Response Overall
Surface Treatment [SFTT]: Zinc Overall
Thread Class [AAJD]: 2A All Ends
Thread Series Designator [THSD]: Unf All Ends

Weapon Systems (WSDC) 4730-00-431-9307

Subscribe
View WSDC

Subscribe to View Weapon System Codes...

Subscribe
View Data

DLA Procurement Analysis 4730-00-431-9307

Last Stock Position:: 73 In Stock
DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 4730-00-431-9307

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Department of the Navy (DN); EA; Subscribe; 1
Oct 2021: Defense Logistics Agency (DS); EA; Subscribe; 1
Feb 2021: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2019: Department of the Army (DA); EA; Subscribe; 1

Army

Materiel Category and Inventory Manager:

J: Ground Forces Support Materiel (DLA/GSA Items)

Appropriation and Budget Activity:

2: Stock Fund Secondary Items

Management Inventory Segment:

2: Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.

Weapons System / End Item / Homogeneous Group:

00: DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item

Accounting Requirements:

X: Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.

Air Force

Fund:

SF: Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point

Budget:

9: 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors

Aggregation Code:

SX: SICA RESIDUAL MMAC-OC-ALC

Price Validation Code:

V: The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.

Expendability Recoverability Repairability:

N: Expendable. Condemn at User. Stock Fund (except Munitions).

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

Marine Corps

Stores Account:

1: Stock Fund Account Item

Combat Essentiality:

5: Critical Repair Part to a Combat Essential End Item

Echelon Management:

B2

Operational Test:

: No Special Procedures

NATO Stock Numbers Related to 4730-00-431-9307

4730-14-353-8196 4730-14-409-7210 4730-12-336-3156 4730-12-305-4143 4730-17-105-6712 4730-14-485-0024 4730-15-145-0513 4730-15-195-0629 4730-14-518-5119 4730-14-515-4416 4730-14-529-4222 4730-15-153-5965 4730-14-492-1474 4730-14-357-0597 4730-12-394-3571 4730-12-379-2674 4730-15-157-7770 4730-14-304-6288

Freight Information 4730-00-431-9307

4730-00-431-9307 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052190. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FITTI. 4730-00-431-9307 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30000 which rates the freight between FCL and LCL. 4730-00-431-9307 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-00-431-9307 is not classified as a special type of cargo when transported by water. 4730-00-431-9307 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 4730-00-431-9307

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; Over 10lb; Less than 85G; No Requirement

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Physical Protection; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: No Requirement; --; No Requirement; Not Applicable; Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: ASTM-D5118, Type CF, Class Domestic, Corrugated Fiberboard Box

Procurement History 4730-00-431-9307 Most Recent 75 Records

Subscribe
View Prices

Contract: Date; CAGE; Quantity; Net Price; Std Price
SPE7M023P2078: 28 Feb 2023; Subscribe; 878; Subscribe; Subscribe
SPE7MC17V3472: 06 Feb 2017; Subscribe; 1538; Subscribe; Subscribe
SPE7MC16VA682: 04 Aug 2016; Subscribe; 527; Subscribe; Subscribe
SPM7LX10D9W06044V: 22 Jun 2016; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W06044P: 22 Jun 2016; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W06042S: 15 Jun 2016; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W06042D: 14 Jun 2016; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W06042B: 14 Jun 2016; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W06036G: 01 Jun 2016; Subscribe; 7; Subscribe; Subscribe
SPM7LX10D9W06019M: 21 Apr 2016; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W06019N: 21 Apr 2016; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W06015G: 15 Apr 2016; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W06012E: 07 Apr 2016; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W069777: 17 Feb 2016; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W069471: 13 Jan 2016; Subscribe; 6; Subscribe; Subscribe
SPM7LX10D9W069467: 13 Jan 2016; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W069447: 12 Jan 2016; Subscribe; 13; Subscribe; Subscribe
SPM7LX10D9W069432: 11 Jan 2016; Subscribe; 6; Subscribe; Subscribe
SPM7LX10D9W069367: 05 Jan 2016; Subscribe; 100; Subscribe; Subscribe
SPM7LX10D9W069370: 05 Jan 2016; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W069369: 05 Jan 2016; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W069331: 28 Dec 2015; Subscribe; 6; Subscribe; Subscribe
SPM7LX10D9W069299: 24 Dec 2015; Subscribe; 6; Subscribe; Subscribe
SPM7LX10D9W069136: 07 Dec 2015; Subscribe; 6; Subscribe; Subscribe
SPM7LX10D9W069008: 23 Nov 2015; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W068638: 13 Oct 2015; Subscribe; 2; Subscribe; Subscribe
SPM7LX10D9W068531: 25 Sep 2015; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W068372: 08 Sep 2015; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W068332: 03 Sep 2015; Subscribe; 100; Subscribe; Subscribe
SPM7LX10D9W068334: 03 Sep 2015; Subscribe; 100; Subscribe; Subscribe
SPM7LX10D9W068331: 03 Sep 2015; Subscribe; 100; Subscribe; Subscribe
SPM7LX10D9W068333: 03 Sep 2015; Subscribe; 100; Subscribe; Subscribe
SPM7LX10D9W068251: 25 Aug 2015; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W068239: 24 Aug 2015; Subscribe; 28; Subscribe; Subscribe
SPM7LX10D9W068237: 24 Aug 2015; Subscribe; 2; Subscribe; Subscribe
SPM7LX10D9W068200: 20 Aug 2015; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W068101: 10 Aug 2015; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W068102: 10 Aug 2015; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W068074: 05 Aug 2015; Subscribe; 2; Subscribe; Subscribe
SPM7LX10D9W068054: 04 Aug 2015; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W068045: 03 Aug 2015; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W067761: 30 Jun 2015; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W067638: 15 Jun 2015; Subscribe; 9; Subscribe; Subscribe
SPM7LX10D9W067617: 10 Jun 2015; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W067528: 02 Jun 2015; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W067335: 13 May 2015; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W067320: 08 May 2015; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W067207: 24 Apr 2015; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W067192: 22 Apr 2015; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W066965: 27 Mar 2015; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W066880: 17 Mar 2015; Subscribe; 12; Subscribe; Subscribe
SPM7LX10D9W066820: 11 Mar 2015; Subscribe; 2; Subscribe; Subscribe
SPM7LX10D9W066782: 07 Mar 2015; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W066318: 14 Jan 2015; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W066036: 02 Dec 2014; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W065946: 14 Nov 2014; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W065912: 12 Nov 2014; Subscribe; 5; Subscribe; Subscribe
SPM7LX10D9W065573: 22 Sep 2014; Subscribe; 10; Subscribe; Subscribe
SPM7LX10D9W065151: 10 Aug 2014; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W065137: 07 Aug 2014; Subscribe; 5; Subscribe; Subscribe
SPM7LX10D9W065042: 03 Jul 2014; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W064969: 12 Jun 2014; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W064909: 03 Jun 2014; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W064713: 05 May 2014; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W064696: 03 May 2014; Subscribe; 21; Subscribe; Subscribe
SPM7LX10D9W064687: 03 May 2014; Subscribe; 23; Subscribe; Subscribe
SPM7LX10D9W064551: 14 Apr 2014; Subscribe; 2; Subscribe; Subscribe
SPM7LX10D9W064467: 03 Apr 2014; Subscribe; 5; Subscribe; Subscribe
SPM7LX10D9W064366: 17 Mar 2014; Subscribe; 12; Subscribe; Subscribe
SPM7LX10D9W064327: 10 Mar 2014; Subscribe; 17; Subscribe; Subscribe
SPM7LX10D9W064202: 10 Feb 2014; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W064185: 09 Feb 2014; Subscribe; 2; Subscribe; Subscribe
SPM7LX10D9W063987: 06 Jan 2014; Subscribe; 1; Subscribe; Subscribe
SPM7LX10D9W063958: 23 Dec 2013; Subscribe; 5; Subscribe; Subscribe
SPM7LX10D9W063797: 21 Nov 2013; Subscribe; 66; Subscribe; Subscribe

Contracting Technical Data File (CTDF) 4730-00-431-9307 October 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: F

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 4730-00-431-9307

Related Documents 4730-00-431-9307 5+ Documents (More...)

Restrictions 4730-00-431-9307

Import and Export 4730-00-431-9307

End Users 4730-00-431-9307

Approved Sources 4730-00-431-9307

Datasheet 4730-00-431-9307

Weapon Systems (WSDC) 4730-00-431-9307

DLA Procurement Analysis 4730-00-431-9307

Management Data 4730-00-431-9307

Army

Air Force

Navy

Marine Corps

NATO Stock Numbers Related to 4730-00-431-9307

Freight Information 4730-00-431-9307

Packaging Data 4730-00-431-9307

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Procurement History 4730-00-431-9307 Most Recent 75 Records

Contracting Technical Data File (CTDF) 4730-00-431-9307 October 2021

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
