4730-00-401-8291
Pipe To Gas Fitting Straight Adapter
4730004018291 004018291 15-8 646A078H09 332-1061-030
An adapter having standard pipe threads on one end or an unthreaded end designed to accommodate a pipe. The other end has external and/or internal recognized National Gas Outlet Threads. It is designed to join a pipe or pipe fitting to a gas fitting. View more Pipe To Gas Fitting Straight Adapter
November 2023
13
Marketplace 4730-00-401-8291
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 4730-00-401-8291 2+ Documents (More...)

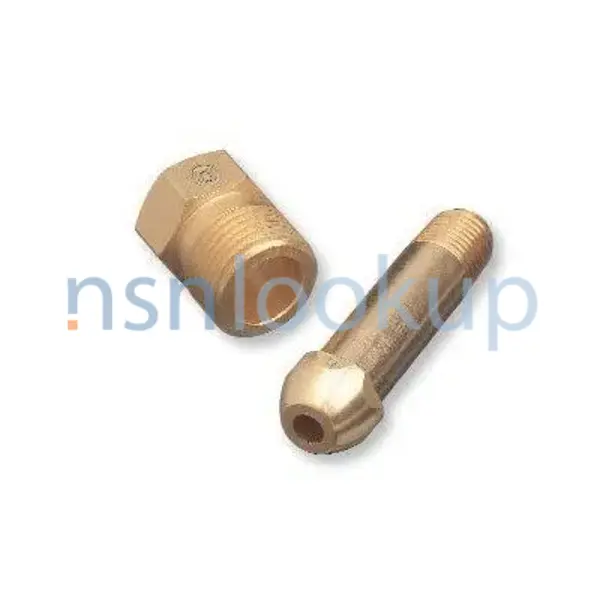

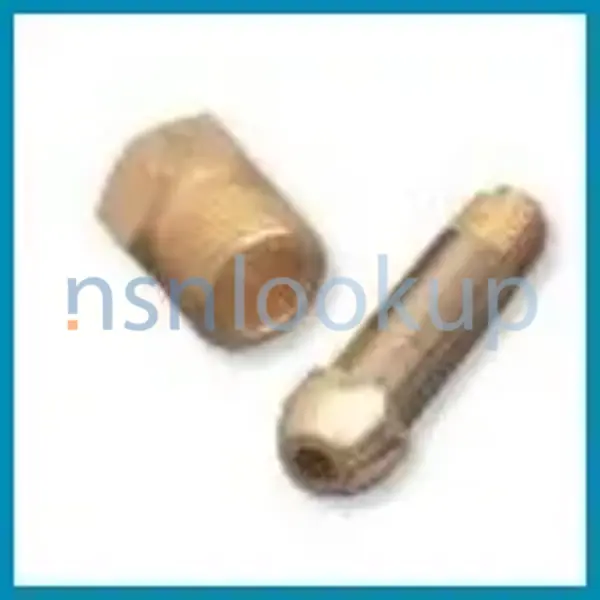

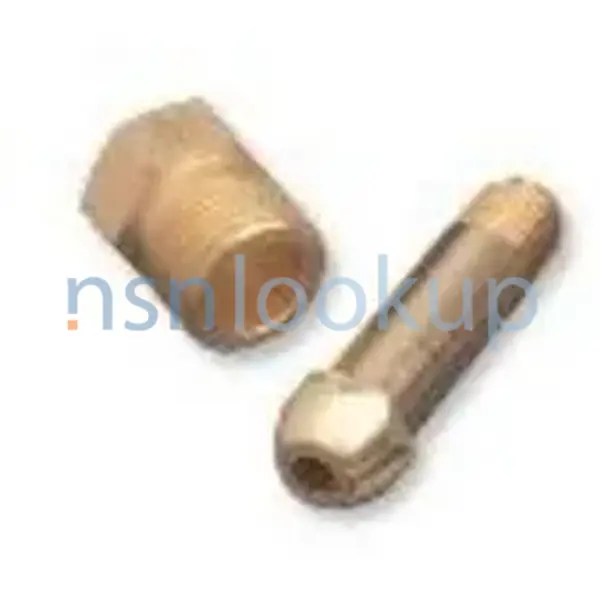

Photo 1/3 4730-00-401-8291 Photo 2/3 4730-00-401-8291 Photo 3/3 - - - 1.
RQST NE Updated Every Day 4730-00-401-8291 RQST Updated Every Day 4730-00-401-8291 RQST NE Related
Pipe To Gas Fitting Straight Adapter,15-8 Updated Every Day 4730-00-401-8291 RQST NE Related https
)NAConsolidated With 4730-00-401-8291Federal Aviation Administration (GE)IAConsolidated With 4730-00-401-8291
Restrictions 4730-00-401-8291
4730-00-401-8291 is a Pipe To Gas Fitting Straight Adapter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-401-8291
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-401-8291
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- NASA (G860)
- Effective Date:
- 1 Jun 1998
- US Marine Corps (MC40)
- Effective Date:
- 1 Jan 2010
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 4730-00-401-8291
- Part Number
- Manufacturer
- Status
- 15-8
- Manufacturer
- 16166 - Western Enterprises Div Of Scott And (Active)
- Primary Buy
- Primary Buy
- 646A078H09
- 97942 - Northrop Grumman Systems Corporation (Active)
- Primary Buy
- Primary Buy
- 332-1061-030
- 95105 - Rockwell Collins, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 332-1061-030
- 13499 - Rockwell Collins, Inc. (Active)
- Vendor Drawing
- Vendor Drawing
Datasheet 4730-00-401-8291
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Material [MATT]
- Copper Alloy Overall
- Material Document And Classification [MDCL]
- Qq-B-626 Fed Spec Single Material Response Overall
- Media For Which Designed [MEDA]
- Air Single Response
- Maximum Operating Pressure [CQGM]
- 2200.0 Pounds Per Square Inch Single Response
- Connection Type [AWLS]
- Threaded External Pipe 1St End
- Connection Type [AWLS]
- Threaded External Gas Fitting 2Nd End
- Thread Series Designator [THSD]
- Npt 1St End
- Nominal Thread Size [CQJX]
- 0.562 Inches 1St End
- Nominal Overall Length [CWFR]
- 2.594 Inches
Weapon Systems (WSDC) 4730-00-401-8291
DLA Procurement Analysis 4730-00-401-8291
- Last Stock Position:
- 33 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-00-401-8291
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 4730-00-401-8291
Freight Information 4730-00-401-8291
4730-00-401-8291 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052190. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FITTI. 4730-00-401-8291 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30000 which rates the freight between FCL and LCL. 4730-00-401-8291 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-00-401-8291 is not classified as a special type of cargo when transported by water. 4730-00-401-8291 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-00-401-8291
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 3.0" H x 1.0" W x 1.0" L
- --
- --
- --
- Any Suitable Process
- 3.0" H x 1.0" W x 1.0" L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- --
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM-D5118, Type CF, Class Domestic, Corrugated Fiberboard Box
Contracting Technical Data File (CTDF) 4730-00-401-8291 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- T
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
