4730-00-394-9743
Quick Disconnect Coupling Half
4730003949743 003949743 LL3-K21 10293007 ML3-K21 ML3K21 ML3K21S
A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE. View more Quick Disconnect Coupling Half
November 2023
27
Marketplace 4730-00-394-9743
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-394-9743 5+ Documents (More...)

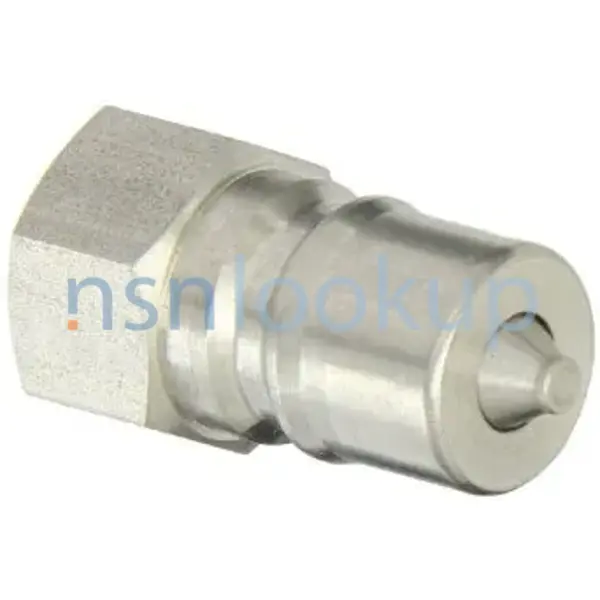

Photo 1/2 NSN 4730-00-394-9743 (Identification) 2/2 - - 1.
COUPLING 53 EA NS Request Quotation Updated Every Day 4730-00-394-9743 RQST NE Updated Every Day 4730
DE) 4. 4730-12-332-3859 Marketplace Restrictions https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-394-9743
Quick Disconnect Coupling Half 4730003949743 5342011347854011347854,LL3-K21 Quick Disconnect Coupling
... ) https//www.nsnlookup.com /fsg-53/fsc-5342/us 5342-01-134-7854 Plug * 5342011347854011347854,LL3-K21
Quick Disconnect Coupling Half 4730003949743 Disconnect Coupling Half4730123323859 123323859 LL3
47/fsc-4730/us 4730-01-219-8191 Quick Disconnect Coupling Half 4730012198191 -47/fsc-4730/us 4730-00-394-9743
Quick Disconnect 01-134-7854Plug *5342011347854 011347854 LL3-K21 https//www.nsnlookup.com /fsg
Updated Every Day 4730-00-247-9189 RQST NE Related https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-394-9743
Quick Disconnect Coupling Half 4730003949743 Upgrade your Account Upgrade 4730-00-394-9743Quick
Restrictions 4730-00-394-9743
4730-00-394-9743 is a Quick Disconnect Coupling Half that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-394-9743
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-394-9743
- US Army (A920)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZ
- US Air Force (FXGC)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- FXAX
- NASA (G860)
- Effective Date:
- 1 Apr 1991
- US Navy (N9BC)
- Effective Date:
- 1 Aug 2006
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTHD
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Feb 2011
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
Approved Sources 4730-00-394-9743
- Part Number
- Manufacturer
- Status
- 10293007
- Manufacturer
- 18876 - Us Army Aviation And Missile Command (Active)
- Source Control
- Source Control
- ML3-K21
- 73992 - Tuthill Corp Hansen Coupling Div (Active)
- Primary Buy
- Primary Buy
- ML3K21
- 73061 - Hansen Mfg Co Inc (Active)
- Original Design
- Original Design
- ML3K21S
- 73061 - Hansen Mfg Co Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- LL3-K21
- 73992 - Tuthill Corp Hansen Coupling Div (Active)
- Advisory Reference
- Advisory Reference
Datasheet 4730-00-394-9743
- Characteristic
- Specifications
- FIIG
- Specifications
- A531T0
- Connection Style [AHNC]
- Plain All Ends
- Connection Type [AWLS]
- External Quick Disconnect All Ends
- Connection Type [AWLS]
- Threaded Internal Pipe First Fluid End Connection
- Features Provided [CBBL]
- Self-Sealing
- Material [MATT]
- Steel Body
- Mating End Identification [ADLT]
- U.S.Army Missile Command Coupling Half,Quick Disconnect,Part No.10293006
- Nominal Pipe Size Accommodated [AAAR]
- 0.375 Inches All Ends
- Nominal Thread Size [CQJX]
- 0.375 Inches All Ends
- Material Document And Classification [MDCL]
- 66 Fed Std Single Material Response Body
- Quick Disconnect Method [ADLN]
- Push-Pull All Ends
- Overall Length [ABHP]
- 1.750 Inches Nominal
- Style Designator [STYL]
- Male Coupling Half
- Surface Treatment Document And Classification [STDC]
- Qq-P-35 Fed Spec Single Treatment Response Body
- Surface Treatment [SFTT]
- Passivate Body
- Thread Series Designator [THSD]
- Npt All Ends
Weapon Systems (WSDC) 4730-00-394-9743
DLA Procurement Analysis 4730-00-394-9743
- Last Stock Position:
- 23 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-00-394-9743
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Mar 2022
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Sep 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
- Special Material Content:
- 9
- Non-Hazardous or Non-Sensitive Item
Similar Supply Items to 4730-00-394-9743
Freight Information 4730-00-394-9743
4730-00-394-9743 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 105200. A Sub NMFC of X. It has a NMFC Description of FITTINGS CABLE/CHAIN/ROPE I/S. 4730-00-394-9743 is rated as class 50 when transported by Less-Than Truckload (LTL) freight. 4730-00-394-9743 is rated as class 50 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 54160 which rates the freight between FCL and LCL. 4730-00-394-9743 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-00-394-9743 is not classified as a special type of cargo when transported by water. 4730-00-394-9743 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-00-394-9743
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- No Requirement
- Not Applicable
- MIL-DTL-117, Type III, Class C, Style 1, Medium Duty, Waterproof, Greaseproof, Opaque Bag
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Procurement History 4730-00-394-9743 2 Records
Contracting Technical Data File (CTDF) 4730-00-394-9743 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
