4730-00-391-8970

Pipe Flange

4730003918970 003918970 A020938-01 3170 A015536

An item solid or split into halves, having a threaded or unthreaded hole for the purpose of connecting or retaining a pipe, tube, or hose fitting. The face of the flange may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. If the item is unthreaded, the pipe or tube may be retained by welding, brazing, compression, or the like. Excludes FLANGE, PIPE, BLIND; FERRULE, GROOVED CLAMP COUPLING; and ADAPTER (as modified). View more Pipe Flange

4730-00-391-8970 FLANGE,PIPE 4730003918970 003918970

Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
May 2023
NATO Update Count
21
NATO Data Quality
AJEM Style 21 for 4730-00-391-8970 1/2
NSN 4730-00-391-8970 (Identification) 1/2
STYL Style 3 for 4730-00-391-8970 2/2
NSN 4730-00-391-8970 (Identification) 2/2

4730-00-391-8970 Stock and Availability Marketplace 4730-00-391-8970

4730-00-391-8970 Related Documents Related Documents 4730-00-391-8970 4+ Documents (More...)

A020938-01 3170 A015536 An item solid or split into halves, having a threaded or unthreaded hole for
(Identification) 1/2 NSN 4730-00-391-8970 (Identification) 2/2 - - 1.
Request Quotation Updated Every Day 4730-00-391-8970 RQST NE Updated Every Day 4730-00-391-8970 RQST
Upgrade your Account Upgrade 4730-01-484-8598Sediment Strainer4730014848598 014848598 036986-001 A020938-01
www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-484-8598 https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-391-8970
Pipe Flange 4730003918970 003918970 Upgrade for $1 a day Upgrade your Account Upgrade 4730-00-391
Upgrade your Account Upgrade 4730-01-484-8598Sediment Strainer4730014848598 014848598 036986 -001 A020938-01
2414O-Ring5331995222414 995222414103667-199-098585330-036986 https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-391-8970
Pipe Flange 4730003918970 003918970 4730014848598 014848598 Upgrade your Account Upgrade 4730-01

4730-00-391-8970 Demil Restrictions 4730-00-391-8970

DEMIL: A | DEMILI: | CRITICALITY: X | HMIC: N | PMIC: U | EDC: | ADPEC:

4730-00-391-8970 is a Pipe Flange that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.

4730-00-391-8970 End Users End Users 4730-00-391-8970

US Navy (N9BC)
Effective Date:
1 Apr 2005
Former MOE Rule:
N9CD
Supplementary Collaborators:
GTHD
Brazil (YA01)
Effective Date:
1 Dec 2001
Spain (YB01)
Effective Date:
1 Apr 1991
Singapore (YJ01)
Effective Date:
1 Apr 1991
Thailand (YY01)
Effective Date:
1 Feb 2015
Republic of Korea (ZH01)
Effective Date:
1 Apr 1991
Greece (ZU01)
Effective Date:
1 Jun 2005
Turkey (ZW01)
Effective Date:
1 Nov 1998

4730-00-391-8970 Manufacturers Approved Sources 4730-00-391-8970

4730-00-391-8970 Technical Data Datasheet 4730-00-391-8970

Characteristic
Specifications
FIIG
A23300
Material [MATT]
Any Acceptable
Style Designator [STYL]
Oval, One Bolt Hole Circle
Bolt Circle Diameter [ABKG]
0.625 Inches Nominal
Flange Length [AFQN]
2.000 Inches Nominal
Flange Width [AGFF]
1.250 Inches Nominal
Bolt Hole Diameter [AHNX]
0.093 Inches Nominal
Flange End Radius [AJDX]
0.500 Inches Nominal
Bolt Hole Quantity [AECS]
2

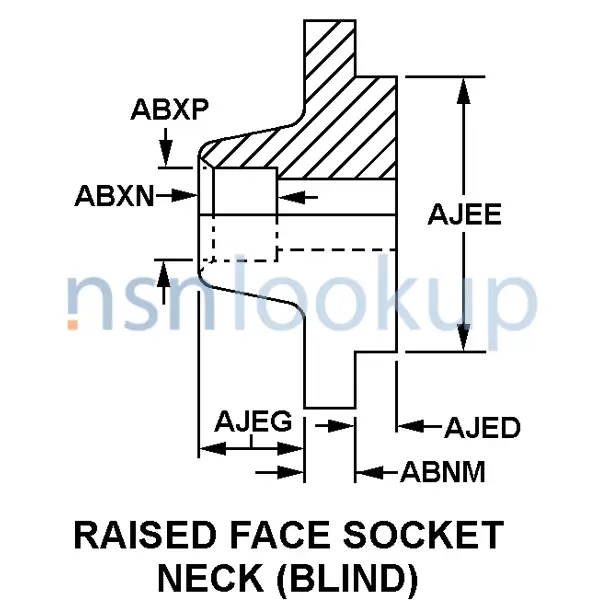

Flange Section Style [AJEM]
Raised Face Socket Neck (Bulk Head)
Thickness [ABNM]
0.219 Inches Nominal
Socket Depth [ABXN]
0.500 Inches Nominal
Socket Diameter [ABXP]
0.219 Inches Nominal
Bore Diameter [ABXV]
0.562 Inches Nominal
Raised Face Height [AJED]
0.093 Inches Nominal
Raised Face Diameter [AJEE]
0.938 Inches Nominal
Neck Height [AJEG]
0.625 Inches Nominal
Screw Thread Series Designator [AJYP]
Un
Nominal Thread Size [CQJX]
0.625 Inches
Thread Quantity Per Inch [CMLP]
16
Thread Class [AAJD]
2B
Face Seating Surface Condition [AKWE]
Machined
