4730-00-363-4099

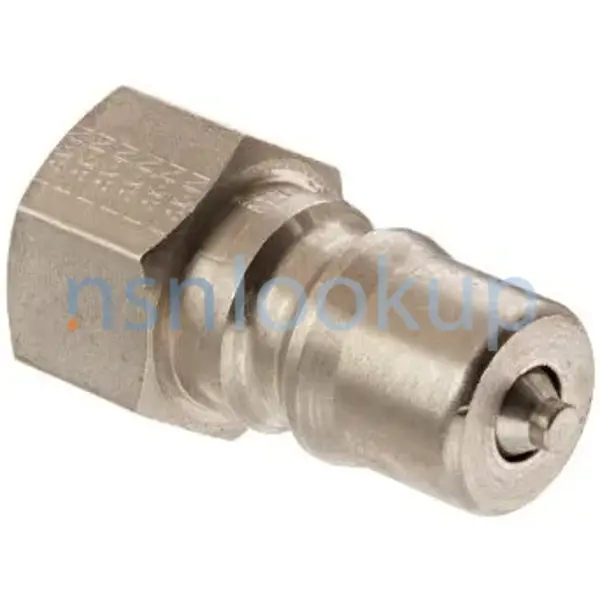

Quick Disconnect Coupling Half
4730003634099 003634099 SH2-63 LL2K16 TK2-16-303 K2S/S FD45-1004-04-04 816169 K2-SS
A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE. View more Quick Disconnect Coupling Half
Managed by United States
NSN Created on 22 Feb 1974
Data Last Changed
November 2023
November 2023
NATO Update Count
36
36
NATO Data Quality
Marketplace 4730-00-363-4099
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-363-4099 5+ Documents (More...)
SH2-63 LL2K16 TK2-16-303 K2S/S FD45-1004-04-04 816169 K2-SS A fluid line fitting having a pipe, tube
NE Updated Every Day 4730-00-363-4099 RQST Updated Every Day 4730-00-363-4099 RQST NE Related Documents
4730-00-363-4099 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-363-4099
NE Updated Every Day 4730-00-363-4099 RQST Updated Every Day 4730-00-363-4099 RQST NE Related Documents
4730-00-363-4099 5+ Documents ( More... ) https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-363-4099
0182 Quick Disconnect Coupling Half 4730017000182 Disconnect Coupling Half4730015928247 015928247 SH2-63
6200 Quick Disconnect Coupling Half 4730144126200 Replaced) Canceled/Obsolete RNCC 5 RNVC 9 DAC 6 SH2-63
Disconnect Coupling Half 4730014758330 4730003634099 https//www.nsnlookup.com /fsg-47/fsc-4730/us
6200 Quick Disconnect Coupling Half 4730144126200 Replaced) Canceled/Obsolete RNCC 5 RNVC 9 DAC 6 SH2-63
Disconnect Coupling Half 4730014758330 4730003634099 https//www.nsnlookup.com /fsg-47/fsc-4730/us
JavaScript in your web browser . 4730-99-753-4928Self-Sealing Coupling Half4730997534928 997534928 LL2K16
JavaScript in your web browser . 4730-99-737-1926Quick Disconnect Coupling Half4730997371926 997371926 LL2K16
www.nsnlookup.com /fsg-47/fsc-4730/uk 4730-99-737-1926 Quick Disconnect Coupling Half 4730997371926 LL2K16
JavaScript in your web browser . 4730-99-737-1926Quick Disconnect Coupling Half4730997371926 997371926 LL2K16
www.nsnlookup.com /fsg-47/fsc-4730/uk 4730-99-737-1926 Quick Disconnect Coupling Half 4730997371926 LL2K16
JavaScript in your web browser . 4730-99-737-1926Quick Disconnect Coupling Half4730997371926 997371926 LL2K16
www.nsnlookup.com /fsg-47/fsc-4730/uk 4730-99-737-1926 Quick Disconnect Coupling Half 4730997371926 LL2K16
JavaScript in your web browser . 4730-99-737-1926Quick Disconnect Coupling Half4730997371926 997371926 LL2K16
www.nsnlookup.com /fsg-47/fsc-4730/uk 4730-99-737-1926 Quick Disconnect Coupling Half 4730997371926 LL2K16
JavaScript in your web browser . 4730-99-737-1926Quick Disconnect Coupling Half4730997371926 997371926 LL2K16
Upgrade your Account Upgrade 4730-01-700-0182Quick Disconnect Coupling Half4730017000182 017000182 SH2-63
www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-700-0182 Quick Disconnect Coupling Half 4730017000182 SH2-63
Every Day 4730-14-412-6200 RQST NE Related Documents (Active) Vendor Drawing RNCC 7 RNVC 2 DAC 1 SH2-63
www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-700-0182 Quick Disconnect Coupling Half 4730017000182 SH2-63
Every Day 4730-14-412-6200 RQST NE Related Documents (Active) Vendor Drawing RNCC 7 RNVC 2 DAC 1 SH2-63
Restrictions 4730-00-363-4099
4730-00-363-4099 is a Quick Disconnect Coupling Half that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-363-4099
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-363-4099
- US Army (A918)
- Effective Date:
- 1 Jun 2012
- Supplementary Receivers:
- AZ
- US Air Force (FXGC)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- FXAX
- NASA (G860)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC40)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Nov 2005
- Former MOE Rule:
- NICD
- Supplementary Collaborators:
- GTKEHD
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Jun 2001
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 4730-00-363-4099
- Part Number
- Manufacturer
- Status
- LL2K16
- Manufacturer
- 73992 - Tuthill Corp Hansen Coupling Div (Active)
- Primary Buy
- Primary Buy
- TK2-16-303
- 28968 - Circor Instrumentation Technologies, (Active)
- Secondary Buy
- Secondary Buy
- K2S/S
- 14127 - Foster Manufacturing Co, Inc. (Active)
- Secondary Buy
- Secondary Buy
- FD45-1004-04-04
- 01276 - Danfoss Power Solutions Ii, Llc (Active)
- Secondary Buy
- Secondary Buy
- 816169
- F0302 - Safran Transmission Systems (Active)
- Secondary Buy
- Secondary Buy
- K2-SS
- F0210 - Airbus Helicopters (Ets De (Active)
- Secondary Buy
- Secondary Buy
- K2-SS
- F0316 - Leach International Gepe (Groupement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- SH2-63
- 97111 - Parker-Hannifin Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- TK2-16-303
- 13330 - Hoke Inc Dba Hoke Controls Houston (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- SH2-63
- 30780 - Parker-Hannifin Corporation (Active)
- Advisory Reference
- Advisory Reference
- SH2-63
- 78JK3 - Parker-Hannifin Corporation (Active)
- Advisory Reference
- Advisory Reference
Datasheet 4730-00-363-4099
- Characteristic
- Specifications
- FIIG
- Specifications
- A531T0
- Connection Style [AHNC]
- Plain All Ends
- Connection Type [AWLS]
- External Quick Disconnect All Ends
- Connection Type [AWLS]
- Threaded Internal Pipe First Fluid End Connection
- Features Provided [CBBL]
- Self-Sealing
- Material [MATT]
- Steel Body And Steel Corrosion Resisting Body
- Nominal Thread Size [CQJX]
- 0.250 Inches All Ends
- Leg Length [AHSJ]
- 0.406 Inches Minimum And 0.578 Inches Maximum
- Material Document And Classification [MDCL]
- 66 Fed Std Single Material Response Body
- Quick Disconnect Method [ADLN]
- Push-Pull All Ends
- Quick Disconnect Nominal Size [ADLP]
- 0.562 Inches All Ends
- Overall Length [ABHP]
- 1.531 Inches Nominal
- Style Designator [STYL]
- Male Coupling Half
- Surface Treatment [SFTT]
- Passivate Body
- Thread Series Designator [THSD]
- Npt All Ends
