4730-00-351-0773

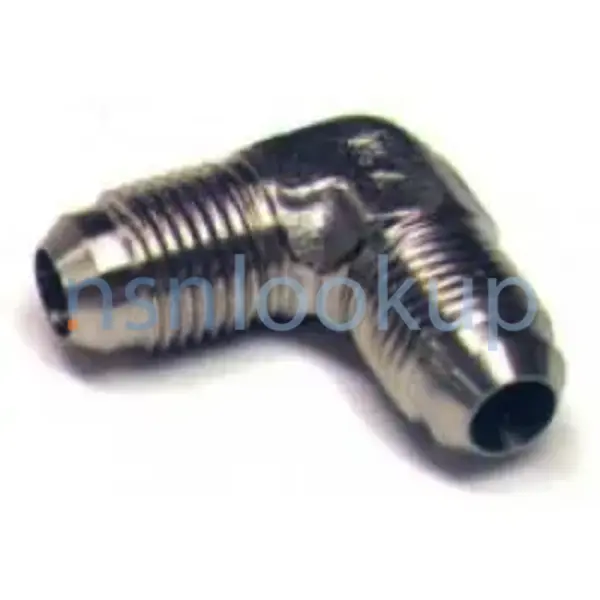

Tube Elbow
4730003510773 003510773 AN821-12K
A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE. View more Tube Elbow
May 2023
5
Marketplace 4730-00-351-0773
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-351-0773 5+ Documents (More...)
Day 4730-00-351-0773 RQST Updated Every Day 4730-00-351-0773 RQST NE Related Documents 4730-00-351-0773
AN821-12K ELBOW,TUBE 978 EA NS Request Quotation Updated Every Day 4730-00-351-0773 RQST NE Updated
Tube Elbow 4730003510773 003510773 Upgrade for $1 a day Upgrade your Account Upgrade 4730-00-351
-0773Tube Elbow4730003510773 003510773 AN821-12K AN821-12K ELBOW,TUBE 978 EA NS Request Quotation Updated
Restrictions 4730-00-351-0773
4730-00-351-0773 is a Tube Elbow that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-351-0773
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-351-0773
- NASA (G930)
- Effective Date:
- 1 Apr 1991
Approved Sources 4730-00-351-0773
- Part Number
- Manufacturer
- Status
- AN821-12K
- Manufacturer
- 88044 - Aeronautical Standards Group (Active)
- Incomplete Standard
- Incomplete Standard
Datasheet 4730-00-351-0773
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Connection Style [AHNC]
- Flared (Tube) 1St End
- Connection Type [AWLS]
- Threaded External Tube 1St End
- Furnished Items And Quantity [TMQY]
- 2 Tube Coupling Nut W/Sleeve
- Flow Angle [CRFY]
- 90.0 Degrees
- Material Document And Classification [MDCL]
- Qq-S-763,Cl 316 Fed Spec Single Material Response Body
- Material [MATT]
- Steel Comp 316 Body
- Nominal Outside Diameter Tube Accommodated [CWFD]
- 0.750 Inches 1St End
- Nominal Thread Size [CQJX]
- 1.063 Inches 1St End
- Leg Length [AHSJ]
- 1.656 Inches Nominal 1St End
- Seat Angle [CQRB]
- 37.0 Degrees 1St End
- Special Features [FEAT]
- Modified By Lewis Spec 103
- Thread Class [AAJD]
- 3A 1St End
- Thread Quantity Per Inch [CMLP]
- 12 1St End
- Thread Series Designator [THSD]
- Un 1St End
Similar Supply Items to 4730-00-351-0773
Freight Information 4730-00-351-0773
4730-00-351-0773 has freight characteristics.. 4730-00-351-0773 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
