4730-00-317-4217

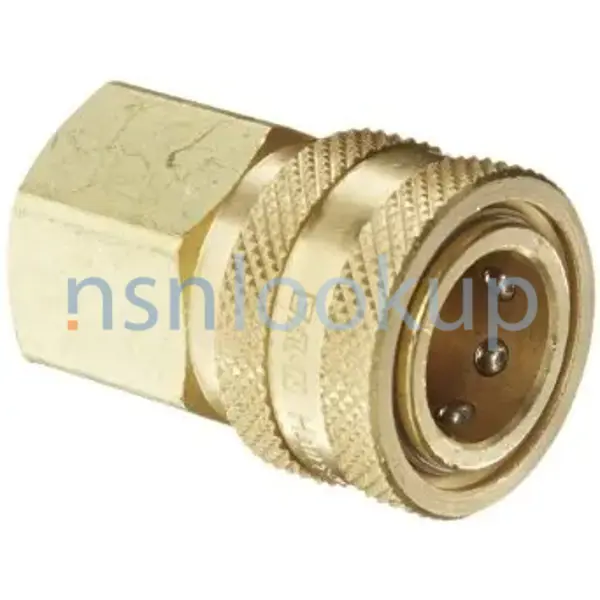

Quick Disconnect Coupling Half
4730003174217 003174217 APP4721 50FS 7746653P63 BST-4 23569 4-F-B 4S26
A fluid line fitting having a pipe, tube or hose connection or a through hole to accommodate a BOLT, FLUID PASSAGE on one end. The other end must have an internal or external quick disconnect feature for connecting a mating part to form a quick disconnect coupling assembly. The fitting may incorporate a self-sealing feature for the purpose of automatically shutting off the flow of fluid when disconnected from its mating half. For self-sealing fittings with an external or internal threaded disconnect end, see COUPLING HALF, SELF-SEALING. See also, CONNECTOR, MULTIPLE, FLUID PRESSURE LINE. View more Quick Disconnect Coupling Half
November 2023
34
Marketplace 4730-00-317-4217
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-317-4217 5+ Documents (More...)
Quick Disconnect Coupling Half 4730003174217 Documents 4730-00-317-4217 5+ Documents ( More... https/
Quick Disconnect Coupling Half 4730003174217 Day 4730-00-317-4217 RQST NE Related Documents https
Every Day 4820-00-861-5547 RQST NE Restrictions https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-317-4217
Quick Disconnect Coupling Half 4730003174217 Day 4730-00-317-4217 RQST NE Related Documents https
https//www.nsnlookup.com /fsg-58/fsc-5895/uk 5895-99-885-0446 Central Unit 5895998850446998850446,DSC 50FS
Quick Disconnect Coupling Half 4730003174217 Part NumberManufacturerStatus650B1-3-4S26 https https
.. ) https//www.nsnlookup.com /fsg-59/fsc-5935/uk 5935-99-746-7135 Tip Jack 5935997467135997467135 50FS
Every Day 5935-99-746-7135 https//www.nsnlookup.com https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-317-4217
Restrictions 4730-00-317-4217
4730-00-317-4217 is a Quick Disconnect Coupling Half that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-317-4217
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-317-4217
- US Army (A920)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AJ
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- NASA (G070)
- Effective Date:
- 1 Apr 1991
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTHD
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Dec 2007
- Denmark (ZS01)
- Effective Date:
- 1 Mar 2002
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 4730-00-317-4217
- Part Number
- Manufacturer
- Status
- 4S26
- Manufacturer
- 73992 - Tuthill Corp Hansen Coupling Div (Active)
- Primary Buy
- Primary Buy
- 50FS
- 14127 - Foster Manufacturing Co, Inc. (Active)
- Secondary Buy
- Secondary Buy
- 7746653P63
- 03538 - Lockheed Martin Corporation (Active)
- Secondary Buy
- Secondary Buy
- 23569
- 58163 - Meggitt (North Hollywood), Inc. (Active)
- Secondary Buy
- Secondary Buy
- BST-4
- 97111 - Parker-Hannifin Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 23569
- 33654 - Howden Fluid Systems (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 4-F-B
- 14233 - Hofmann Engineering Co Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 4S26
- 73061 - Hansen Mfg Co Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- APP4721
- 73992 - Tuthill Corp Hansen Coupling Div (Active)
- Advisory Reference
- Advisory Reference
- BST-4
- 78JK3 - Parker-Hannifin Corporation (Active)
- Advisory Reference
- Advisory Reference
Datasheet 4730-00-317-4217
- Characteristic
- Specifications
- FIIG
- Specifications
- A531T0
- Connection Style [AHNC]
- Plain All Ends
- Connection Type [AWLS]
- Internal Quick Disconnect All Ends
- Connection Type [AWLS]
- Threaded Internal Pipe First Fluid End Connection
- Material [MATT]
- Copper Alloy Body
- Nominal Thread Size [CQJX]
- 0.500 Inches All Ends
- Leg Length [AHSJ]
- 0.469 Inches Minimum And 0.828 Inches Maximum
- Quick Disconnect Method [ADLN]
- Spring Push-Pull All Ends
- Quick Disconnect Nominal Size [ADLP]
- 0.703 Inches All Ends
- Overall Length [ABHP]
- 1.625 Inches Minimum And 1.906 Inches Maximum
- Thread Series Designator [THSD]
- Npt All Ends
- Style Designator [STYL]
- Male Coupling Half
Weapon Systems (WSDC) 4730-00-317-4217
DLA Procurement Analysis 4730-00-317-4217
- Last Stock Position:
- 28 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-00-317-4217
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- V
- The current standard price has been validated.
The item has been analyzed in conjunction with the Zero Overpricing Program and is in the accepted price range.
The item was procured under open competition and under the competitive arena the price is considered fair and reasonable.
ZOP or Standard price challenges are permissible but must be supported by adequate justification.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4730-00-317-4217
Freight Information 4730-00-317-4217
4730-00-317-4217 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052185. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FIT. 4730-00-317-4217 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29950 which rates the freight between FCL and LCL. 4730-00-317-4217 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-00-317-4217 is not classified as a special type of cargo when transported by water. 4730-00-317-4217 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-00-317-4217
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- MIL-DTL-117, Type II, Class C, Style 1, Heavy Duty, Waterproof, Greaseproof, Opaque Bag
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
Procurement History 4730-00-317-4217 4 Records
Contracting Technical Data File (CTDF) 4730-00-317-4217 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- J
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
