4730-00-289-3585
Pipe To Boss Straight Adapter
4730002893585 002893585 305859 123169 124169
An adapter having standard pipe threads on one end or an unthreaded end designed to accommodate a pipe. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like to form a seal at the boss. It is designed to join a pipe or pipe fitting to a boss or boss fitting in a straight line on items such as tanks, housing, valve fittings, or the like. See also ADAPTER BUSHING and COUPLING, PIPE. View more Pipe To Boss Straight Adapter
May 2023
25
Marketplace 4730-00-289-3585
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-289-3585 5+ Documents (More...)

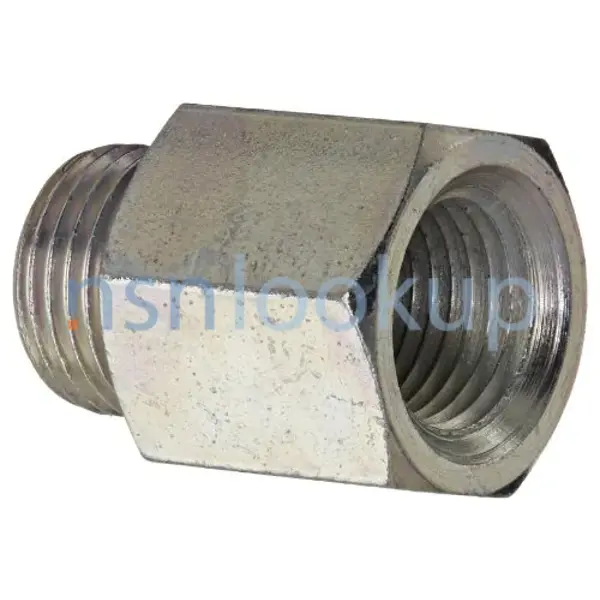

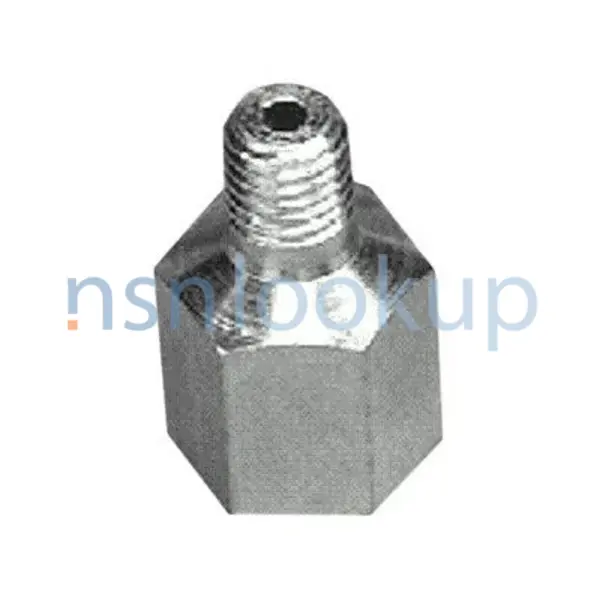

Photo 1/4 4730-00-289-3585 Photo 2/4 4730-00-289-3585 Photo 3/4 4730-00-289-3585 Photo 4/4 - -
Every Day 124169 RQST NE Updated Every Day 4730-00-289-3585 RQST NE Updated Every Day 4730-00-289-3585
Adapter 4730002893585 Account Upgrade 4730-00-289-3585Pipe To Boss Straight Adapter4730002893585 002893585
305859 123169 124169 from participating marketplace vendors Request Updated Every Day 123169 RQST NE
https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-289-3585 Pipe To Boss Straight Adapter 4730002893585
Account Upgrade 4730-00-289-3585Pipe To Boss Straight Adapter4730002893585 002893585 305859 123169 124169
a day Upgrade your Account Upgrade 5998-00-781 -3141Circuit Card Assembly5998007813141 007813141 123169
Pipe To Boss Straight Adapter 4730002893585 -3585Pipe To Boss Straight Adapter4730002893585 https
Ed Fi Orifice 4730007953245 007953245,123169 -231-6226Valvola4820152316226 1523162260-123169 https Ed
) https//www.nsnlookup.com /fsg-48/fsc-4820/it 4820-15 Valvola 4820152316226 152316226,0-123169 Users
Restrictions 4730-00-289-3585
4730-00-289-3585 is a Pipe To Boss Straight Adapter that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-289-3585
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-289-3585
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 4730-00-289-3585
- Part Number
- Manufacturer
- Status
- 305859
- Manufacturer
- 95879 - Stewart-Warner Alemite Corp (Obsolete)
- Original Design
- Original Design
- 123169
- 15434 - Cummins Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 124169
- 15434 - Cummins Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 305859
- 57733 - Stewart-Warner Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4730-00-289-3585
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Material [MATT]
- Steel Body
- Surface Treatment [SFTT]
- Zinc Outside
- Surface Treatment Document And Classification [STDC]
- Astm A153 Assn Std Single Treatment Response Outside
- Connection Type [AWLS]
- Threaded Internal Pipe 1St End
- Connection Type [AWLS]
- Threaded External Boss 2Nd End
- Connection Style [AHNC]
- Plain (Pipe) 1St End
- Connection Style [AHNC]
- External Seat For Gasket Seal (Boss) 2Nd End
- Nominal Pipe Size Accommodated [AAAR]
- 0.125 Inches 1St End
- Thread Series Designator [THSD]
- Nptf 1St End
- Thread Series Designator [THSD]
- Unf 2Nd End
- Nominal Thread Size [CQJX]
- 0.125 Inches 1St End
- Nominal Thread Size [CQJX]
- 0.438 Inches 2Nd End
- Thread Class [AAJD]
- 2A 2Nd End
- Nominal Overall Length [CWFR]
- 0.781 Inches
Similar Supply Items to 4730-00-289-3585
Freight Information 4730-00-289-3585
4730-00-289-3585 has freight characteristics.. 4730-00-289-3585 has a variance between NMFC and UFC when transported by rail and the description should be consulted.
Packaging Data 4730-00-289-3585
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 5lb to 7.5lb, all dimensions less than 24"
- Above 110G
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Preservative Coating Only
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- Any Suitable Container
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
