4730-00-278-5824

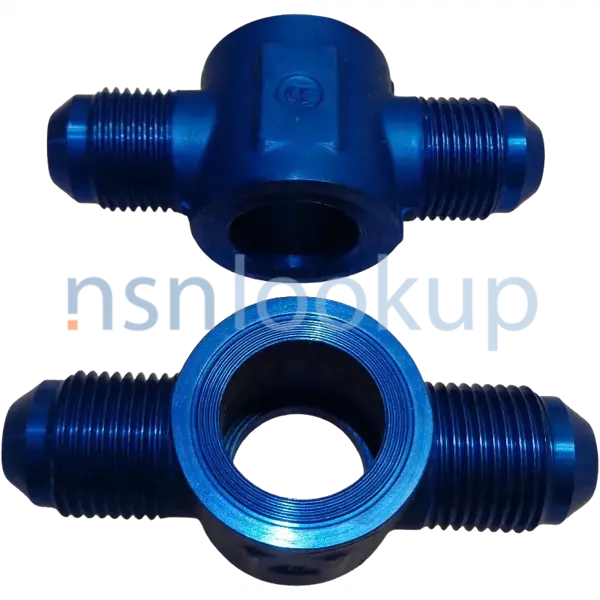

Fluid Pressure Line Multiple Connector

4730002785824 002785824 SAE-AS4875/1 AS4875/1 MIL-F-5509 AS5165-04 AN779-4

A device of varying shapes with two or more connections to accommodate hydraulic or air passage(s) line end connections and/or a BOLT, FLUID PASSAGE(S). View more Fluid Pressure Line Multiple Connector

Managed by United States

NSN Created on 1 Jan 1961

Data Last Changed
September 2024

NATO Update Count
46

NATO Data Quality

4730-00-278-5824 CONNECTOR,MULTIPLE,FLUID PRESSURE LINE 4730002785824 002785824 1/3 — 4730-00-278-5824 Photo 1/3

AHNC Style G19 for 4730-00-278-5824 2/3 — NSN 4730-00-278-5824 (Identification) 2/3

STYL Style D42 for 4730-00-278-5824 3/3 — NSN 4730-00-278-5824 (Identification) 3/3

Marketplace 4730-00-278-5824

Need Help?
Request a Quotation from participating marketplace vendors

Subscribe to View Vendor Details...

AN779-4 CONNECTOR,MULTIPLE,FLUID PRESSURE LINE 25 EA NS

Subscribe to View Vendor Details...

AN779-4 CONNECTOR,MULTIPLE,FLUID PRESSURE LINE 4 EA NS

Subscribe to View Vendor Details...

4730-00-278-5824 CONNECTOR,MULTIPLE,FLUID PRESSURE LINE 13 EA NS

Subscribe to View Vendor Details...

4730-00-278-5824 CONNECTOR,MULTIPLE,FLUID PRESSURE LINE 350 EA NS

Subscribe to View Vendor Details...

AN779-4 CONNECTOR,MULTIPLE,FLUID PRESSURE LINE 1 EA NS

Subscribe to View Vendor Details...

MIL-F-5509 CONNECTOR,MULTIPLE,FLUID PRESSURE LINE 327 EA NS

MILF5509 CONNECTOR,MULTIPLE,FLUID PRESSURE LINE RQST NS

AS4875/1 CONNECTOR,MULTIPLE,FLUID PRESSURE LINE 682 EA NS

4730-00-278-5824 CONNECTOR,MULTIPLE,FLUID PRESSURE LINE 29 EA NS

AS5165-04 CONNECTOR,MULTIPLE,FLUID PRESSURE LINE 124 EA NS

AN779-4 CONNECTOR,MULTIPLE,FLUID PRESSURE LINE 356 EA NS

Subscribe to View Vendor Details...

AN779-4 CONNECTOR,MULTIPLE,FLUID PRESSURE LINE RQST NS

Subscribe to View Vendor Details...

MIL-F-5509 CONNECTOR,MULTIPLE,FLUID PRESSURE LINE RQST NS

Subscribe to View Vendor Details...

AN779-4 CONNECTOR,MULTIPLE,FLUID PRESSURE LINE 1 EA NS

Subscribe to View Vendor Details...

MIL-F-5509 CONNECTOR,MULTIPLE,FLUID PRESSURE LINE 365 EA NS

MILF5509 CONNECTOR,MULTIPLE,FLUID PRESSURE LINE 77 EA NS

AS48751 CONNECTOR,MULTIPLE,FLUID PRESSURE LINE 29 EA NS

Subscribe to View Vendor Details...

002785824.4730 CONNECTOR,MULTIPLE,FLUID PRESSURE LINE 350 EA NS

Subscribe to View Vendor Details...

MILF5509 CONNECTOR,MULTIPLE,FLUID PRESSURE LINE 1 EA NS

MIL-F-5509 CONNECTOR,MULTIPLE,FLUID PRESSURE LINE 2 EA NS

Updated Every Day

4730-00-278-5824 RQST NE

Updated Every Day

4730-00-278-5824 RQST

Updated Every Day

4730-00-278-5824 RQST NE

Restrictions 4730-00-278-5824

4730-00-278-5824 is a Fluid Pressure Line Multiple Connector that does not have a nuclear hardened feature, but does have another critical feature or features such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.

End Users 4730-00-278-5824

US Army (A920)
Effective Date:: 1 Apr 2006
Former MOE Rule:: A181
Supplementary Receivers:: AZ; AMC 1 AMSC T IMC Z IMCACTY CD

US Air Force (FXGC)
Effective Date:: 1 Apr 2006
Former MOE Rule:: FXAX; AMC 1 AMSC T IMC Z IMCACTY SX

US Marine Corps (MC40)
Effective Date:: 1 Apr 2006
Former MOE Rule:: MC01; AMC 1 AMSC T IMC Z IMCACTY PA

US Navy (N9BC)
Effective Date:: 1 Apr 2006
Former MOE Rule:: N9CD
Supplementary Collaborators:: GTKE; AMC 1 AMSC T IMC Z IMCACTY GH

Austria (WB01)
Effective Date:: 1 Feb 2005

Brazil (YA01)
Effective Date:: 1 Aug 2000

Spain (YB01)
Effective Date:: 1 Apr 1991

Singapore (YJ01)
Effective Date:: 1 Apr 1991

Morocco (YP01)
Effective Date:: 1 Nov 2008

Australia (ZA01)
Effective Date:: 1 Oct 2011

Republic of Korea (ZH01)
Effective Date:: 1 Apr 1991

Portugal (ZP01)
Effective Date:: 1 Apr 1991

Italy (ZR01)
Effective Date:: 1 Apr 1991

Greece (ZU01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Dec 1999

Approved Sources 4730-00-278-5824

Part Number
Manufacturer
Status
SAE-AS4875/1: 0U583 - Sae International (Active); Incomplete Reference; RNCC 3 RNVC 1 DAC E
AS5165-04: 0U583 - Sae International (Active); Primary Buy; RNCC 3 RNVC 2 DAC A
AS4875/1: 0U583 - Sae International (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
MIL-F-5509: 81349 - Military Specifications (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
4730002785824: SCY13 - E.C.A Etablissement (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 9
AS5165-04: 81343 - Society Of Automotive Engineers Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC A
AS4875/1: 81343 - Society Of Automotive Engineers Inc (Replaced); Canceled/Obsolete; RNCC 5 RNVC 9 DAC E
AN779-4: 71563 - Collins Engineering Corp (Obsolete); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5
AN779-4: 88044 - Aeronautical Standards Group (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 3
4730002785824: A00AM - E.C.A Etablissement Central Des (Active); NATO Reference; RNCC 6 RNVC 9 DAC 9

Datasheet 4730-00-278-5824

Characteristic
Specifications
FIIG: T385-G
Bolt Hole Diameter [AHNX]: 0.438 Inches Nominal
Bolt Hole Flats Serrations [CGLQ]: Provided
Bolt Hole Fluid Passage [CGLR]: Provided
Connection Style [AHNC]: Flared
Criticality Code Justification [CRTL]: Feat
Fluid Connection Quantity [CGLN]: 2
Fluid Conveyance Type And Size For Which Designed [CGLP]: 1/4 In. Od Tube
End Item Identification [AGAV]: Vehicle Engine; M-60, Avlb M60a1, M45a5
Seat [BJHZ]: Included
Screw Thread Series Designator [AJYP]: Unjf
Seat Angle In Deg [AJFY]: 37.0
Overall Length [ABHP]: 0.812 Inches Nominal
Overall Width [ABMK]: 2.250 Inches Minimum And 2.297 Inches Maximum
Special Features [FEAT]: Weapon System Essential
Specification/Standard Data [ZZZK]: 88044-An779 Government Standard And 81343-As4875/1 Professional/Industrial Association Standard
Style Designator [STYL]: 2 Fluid Connections
Surface Treatment [SFTT]: Cadmium
Thickness [ABNM]: 0.740 Inches Minimum And 0.760 Inches Maximum
Thread Class [AAJD]: 3A
Thread Direction [AAJF]: Right-Hand
Thread Provision [AFEW]: Threaded
Thread Size [ABUJ]: 7/16 In. -20
