4730-00-278-3115

Tube To Boss Elbow

4730002783115 002783115 SAE-AS4841 AS1034-1212 AN821-12 AS4841

A fitting that forms an angle of less that 180 degrees (3.141 radians) from a straight flow. One connecting end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like, to form a seal at the boss. It may have side or heel inlet(s). It is designed to connect a tube or tube fitting to a boss or boss fitting on items such as tanks, housings, valve fittings, or the like. View more Tube To Boss Elbow

Managed by United States

NSN Created on 1 Jan 1961

Data Last Changed
November 2023

NATO Update Count
41

NATO Data Quality

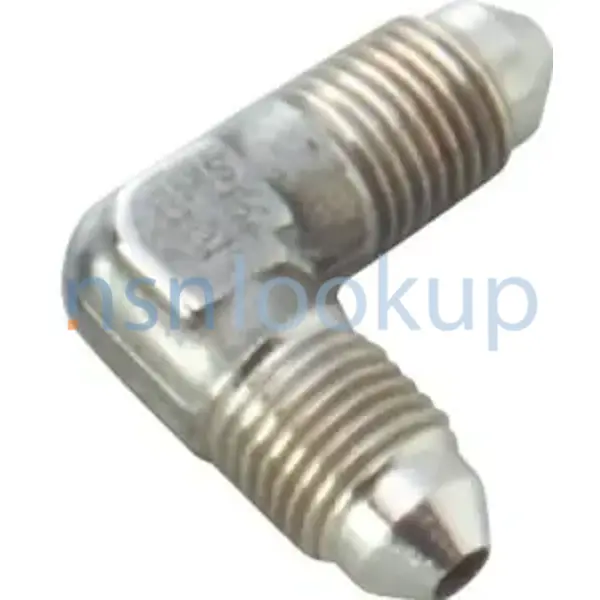

4730-00-278-3115 ELBOW,TUBE TO BOSS 4730002783115 002783115 1/1 — 4730-00-278-3115 Photo 1/1
