4730-00-278-0375

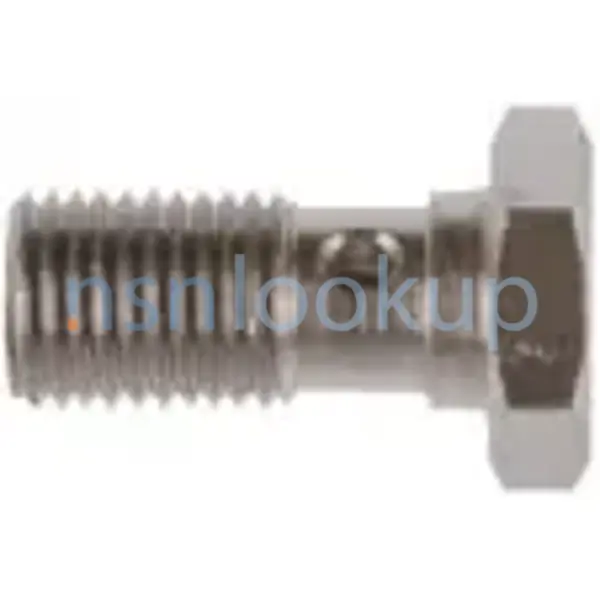

Fluid Passage Bolt
4730002780375 002780375 DB775-4C SAE-AS4875 1-2956-1 AN775-4 AS4875 AS5161 AS5161-04 682901
A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE. View more Fluid Passage Bolt
Managed by United States
NSN Created on 1 Jan 1961
Data Last Changed
June 2025
June 2025
NATO Update Count
65
65
NATO Data Quality
Marketplace 4730-00-278-0375
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
682901 BOLT,FLUID PASSAGE 48 EA NS
1-2956-1 BOLT,FLUID PASSAGE 27 EA NS
AS5161 BOLT,FLUID PASSAGE 534 EA NS
MILF5509 BOLT,FLUID PASSAGE RQST NS
AS5161-04 BOLT,FLUID PASSAGE 106 EA NS
BACB30CR4J BOLT,FLUID PASSAGE 90 EA NS
AS4875 BOLT,FLUID PASSAGE 452 EA NS
DB775-4C BOLT,FLUID PASSAGE 8 EA NS
4730-00-278-0375 BOLT,FLUID PASSAGE 39 EA NS
AN775-4 BOLT,FLUID PASSAGE 136 EA NS
MIL-F-5509 BOLT,FLUID PASSAGE 327 EA NS
BACB30CR4C BOLT,FLUID PASSAGE 18 EA NS
Updated Every Day 4730-00-278-0375 RQST NE
Updated Every Day 4730-00-278-0375 RQST
Updated Every Day 4730-00-278-0375 RQST NE
Related Documents 4730-00-278-0375 5+ Documents (More...)
DB775-4C SAE-AS4875 1-2956-1 AN775-4 AS4875 AS5161 AS5161-04 682901 A boltlike item having a concentric
AN775-4 BOLT,FLUID PASSAGE 3 EA NS Request Quotation Subscribe to View Vendor Details... 682901 BOLT,
FLUID PASSAGE 48 EA NS Request Quotation 1-2956-1 BOLT,FLUID PASSAGE 27 EA NS Request Quotation AS5161
AN775-4 BOLT,FLUID PASSAGE 3 EA NS Request Quotation Subscribe to View Vendor Details... 682901 BOLT,
FLUID PASSAGE 48 EA NS Request Quotation 1-2956-1 BOLT,FLUID PASSAGE 27 EA NS Request Quotation AS5161
| ADPEC : 9999-99-611-0241 is a Fluid Passage Bolt Similar Supply Items to 9999-99-611-0241 4730-00-278-0375
| ADPEC : 9999-99-611-6094 is a Fluid Passage Bolt Similar Supply Items to 9999-99-611-6094 4730-00-278-0375
| ADPEC : 9999-22-600-1225 is a Fluid Passage Bolt Similar Supply Items to 9999-22-600-1225 4730-00-278-0375
| ADPEC : 9999-22-602-2099 is a Fluid Passage Bolt Similar Supply Items to 9999-22-602-2099 4730-00-278-0375
Restrictions 4730-00-278-0375
4730-00-278-0375 is a Fluid Passage Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-278-0375
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-278-0375
- US Army (A920)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZCTCL
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- US Marine Corps (MC40)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- NICD
- Supplementary Collaborators:
- GTKEHD
- Austria (WB01)
- Effective Date:
- 1 Aug 2006
- Poland (WP01)
- Effective Date:
- 1 Aug 2011
- Brazil (YA01)
- Effective Date:
- 1 Aug 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Feb 2015
- Morocco (YP01)
- Effective Date:
- 1 Nov 2008
- Malaysia (YW01)
- Effective Date:
- 1 Aug 1997
- Thailand (YY01)
- Effective Date:
- 1 Feb 2015
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Sep 2004
Approved Sources 4730-00-278-0375
- Part Number
- Manufacturer
- Status
- AS5161
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- AS5161-04
- 0U583 - Sae International (Active)
- Primary Buy
- Primary Buy
- DB775-4C
- 17419 - Deutsch Co The (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- SAE-AS4875
- 0U583 - Sae International (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 1-2956-1
- 00624 - Eaton Aeroquip Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AN775-4
- 00624 - Eaton Aeroquip Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AN775-4
- 06581 - Allan Aircraft Supply Co., Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AN775-4
- 13899 - Hydro-Fitting Manufacturing (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AN775-4
- 14397 - Faber Enterprises, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AN775-4
- 22995 - Crown Fitting Co Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AN775-4
- 88044 - Aeronautical Standards Group (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 4730002780375
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AS4875
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AS5161
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AS5161-04
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AN775-4
- R1120 - Satair A/S (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AS4875
- 0U583 - Sae International (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 682901
- 99167 - Hamilton Sundstrand Corporation (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 4730002780375
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 4730-00-278-0375
- Characteristic
- Specifications
- FIIG
- Specifications
- A121A0
- Distance From First Radial Hole Center To End Of Bolt [BBLB]
- 0.781 Inches Nominal
- End Item Identification [AGAV]
- 10N Aircraft, Tomcat F-14A
- Body Style [AAQL]
- Plain
- Concentric Hole Depth [AAWX]
- 1.156 Inches Nominal
- Concentric Hole Diameter [AAXC]
- 0.172 Inches Nominal
- First Diameter From Wrenching Feature [BBKL]
- 0.435 Inches Nominal
- First End Connection Type [ACKM]
- Threaded External Tube
- First End Nominal Thread Size [CQYM]
- 0.437 Inches
- First End Style Designator [ACKN]
- Flared
- First End Thread Class [ACLK]
- 3A
- First End Thread Direction [ACLL]
- Right-Hand
- First End Thread Length [ATKZ]
- 0.437 Inches Nominal
- First End Thread Series Designator [CQMM]
- Unf
- First End Seat Angle [CQPR]
- 45.0 Degrees Nominal
- First Radial Fluid Hole Diameter [BBKY]
- 0.187 Inches Nominal
- Minimum Tensile Strength [CQBC]
- 25000 Pounds Per Square Inch
- Material [MATT]
- Steel
- Length From Bearing Surface Of Wrenching Feature To End Of First Diameter [BBKR]
- 0.750 Inches Nominal
- Length From Bearing Surface Of Wrenching Feature To Bolt End [BBLD]
- 1.187 Inches Nominal
- Overall Length [ABHP]
- 1.375 Inches Nominal
- Width Across Flats [ASDB]
- 0.688 Inches Nominal
- Wrenching Feature Height [BBLF]
- 0.188 Inches Nominal
- Wrenching Feature Style [BBDF]
- Hexagon
- Specification/Standard Data [ZZZK]
- 81343-As4875 Professional/Industrial Association Standard And 88044-An775 Government Standard
- Surface Treatment [SFTT]
- Cadmium
Weapon Systems (WSDC) 4730-00-278-0375
DLA Procurement Analysis 4730-00-278-0375
- Last Stock Position:
- 1043 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-00-278-0375
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- 4
- Reversal Of Phrase Code A 4730-00-678-3502
- 4
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- CC
- Other Aircraft Categories
Multi-Application Aviation Spares
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
Similar Supply Items to 4730-00-278-0375
Freight Information 4730-00-278-0375
4730-00-278-0375 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 4730-00-278-0375 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 4730-00-278-0375 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 4730-00-278-0375 is not classified as a special type of cargo when transported by water. 4730-00-278-0375 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-00-278-0375
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Plated/Coated Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Procurement History 4730-00-278-0375 15 Records
- Contract
- Date
- CAGE
- Quantity
- Net Price
- Std Price
- CAGE
- SPE7M023V5538
- 25 Aug 2023
- Subscribe
- 1235
- Subscribe
- Subscribe
- Subscribe
- SPE7M023V3366
- 11 May 2023
- Subscribe
- 1006
- Subscribe
- Subscribe
- Subscribe
- SPE7M423P1083P00001
- 03 Jan 2023
- Subscribe
- 1000
- Subscribe
- Subscribe
- Subscribe
- SPE7M318P3865P00001
- 26 Apr 2018
- Subscribe
- 25
- Subscribe
- Subscribe
- Subscribe
- SPE7M018V4005
- 02 Feb 2018
- Subscribe
- 2523
- Subscribe
- Subscribe
- Subscribe
- SPE7M318P1484
- 13 Dec 2017
- Subscribe
- 90
- Subscribe
- Subscribe
- Subscribe
- SPE7M017V8920
- 18 May 2017
- Subscribe
- 2200
- Subscribe
- Subscribe
- Subscribe
- SPE7M317P2217
- 31 Mar 2017
- Subscribe
- 1515
- Subscribe
- Subscribe
- Subscribe
- SPE7M016V6845
- 19 Feb 2016
- Subscribe
- 2267
- Subscribe
- Subscribe
- Subscribe
- SPE7M316M0349
- 22 Oct 2015
- Subscribe
- 1764
- Subscribe
- Subscribe
- Subscribe
- SPE7M314M1849
- 27 Jan 2014
- Subscribe
- 868
- Subscribe
- Subscribe
- Subscribe
- SPE7M314M1079P00001
- 10 Dec 2013
- Subscribe
- 242
- Subscribe
- Subscribe
- Subscribe
- SPE7M013V1709
- 02 May 2013
- Subscribe
- 78
- Subscribe
- Subscribe
- Subscribe
- SPE7M313M0442
- 17 Apr 2013
- Subscribe
- 919
- Subscribe
- Subscribe
- Subscribe
- SPM7MC13M3667
- 31 Jan 2013
- Subscribe
- 81
- Subscribe
- Subscribe
- Subscribe
Contracting Technical Data File (CTDF) 4730-00-278-0375 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
