4730-00-277-5078

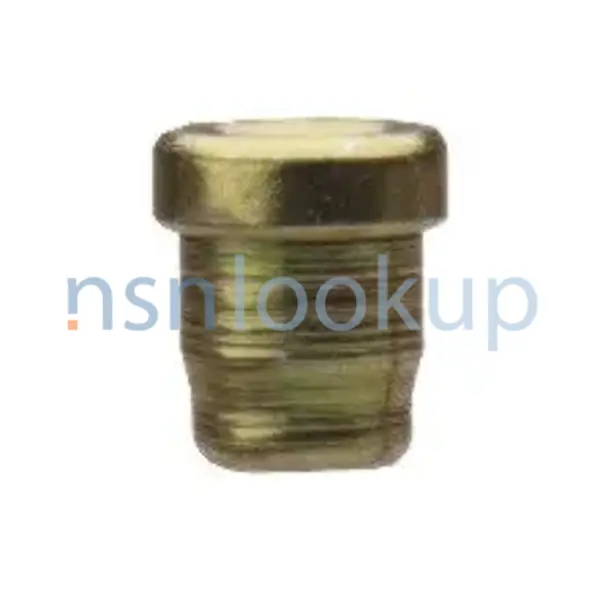

Tube Fitting Locknut
4730002775078 002775078 SAE-AS4841 AS4841 AN6289D10 AS5179D10 10108314
An item with internal machine threads designed to fit the external machine threads of a tube fitting. It has flat faces, one of which has a counterbored recess to accommodate packing, packing or sealing ring(s), gasket(s), and the like. The item, when installed, provides a method of locking and sealing the connection. See also LOCKNUT, PIPE; NUT (1), TUBE COUPLING and NUT (1), PLAIN, HEXAGON. View more Tube Fitting Locknut
Managed by United States
NSN Created on 1 Jan 1963
Data Last Changed
November 2023
November 2023
NATO Update Count
39
39
NATO Data Quality
Marketplace 4730-00-277-5078
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
AN6289D10 LOCKNUT,TUBE FITTING 15 EA NS
AS4841 LOCKNUT,TUBE FITTING 9 EA NS
4730-00-277-5078 LOCKNUT,TUBE FITTING 10 EA NS
AN6289D10 LOCKNUT,TUBE FITTING 55 EA NS
AS5179D10 LOCKNUT,TUBE FITTING 61 EA NS
AS4841 LOCKNUT,TUBE FITTING 631 EA NS
Updated 5 Days Ago
AN6289D10 NUT 83 EA NS
Updated Every Day 4730-00-277-5078 RQST NE
Updated Every Day 4730-00-277-5078 RQST
Updated Every Day 4730-00-277-5078 RQST NE
Related Documents 4730-00-277-5078 5+ Documents (More...)
SAE-AS4841 AS4841 AN6289D10 AS5179D10 10108314 An item with internal machine threads designed to fit
AN6289D10 LOCKNUT,TUBE FITTING 15 EA NS Request Quotation AS4841 LOCKNUT,TUBE FITTING 9 EA NS Request
AS4841 LOCKNUT,TUBE FITTING 55 EA NS Request Quotation AN6289D10 LOCKNUT,TUBE FITTING 64 EA NS Request
AN6289D10 LOCKNUT,TUBE FITTING 15 EA NS Request Quotation AS4841 LOCKNUT,TUBE FITTING 9 EA NS Request
AS4841 LOCKNUT,TUBE FITTING 55 EA NS Request Quotation AN6289D10 LOCKNUT,TUBE FITTING 64 EA NS Request
ADPEC : 9999-99-611-0188 is a Tube Fitting Locknut Similar Supply Items to 9999-99-611-0188 4730-00-277-5078
Upgrade for $1 a day Upgrade your Account Upgrade 4730-01-590-0212Tube Tee4730015900212 015900212 SAE-AS4841
AS4410W202016 SAE AS4410A SAE AS4841 A fitting having three connections with the branch connection fixed
SAE AS4841 TEE,TUBE RQST NS Request Quotation FedMall Updated Every 15 Minutes 4730-01-590-0212 BUY NE
AS4410W202016 SAE AS4410A SAE AS4841 A fitting having three connections with the branch connection fixed
SAE AS4841 TEE,TUBE RQST NS Request Quotation FedMall Updated Every 15 Minutes 4730-01-590-0212 BUY NE
Upgrade for $1 a day Upgrade your Account Upgrade 4730-01-585-3653Tube Tee4730015853653 015853653 SAE-AS4841
SAE AS4410 AS4410W161616 SAE AS4841 A fitting having three connections with the branch connection fixed
) https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-585-3653 Tube Tee 4730015853653015853653,SAE-AS4841
SAE AS4410 AS4410W161616 SAE AS4841 A fitting having three connections with the branch connection fixed
) https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-01-585-3653 Tube Tee 4730015853653015853653,SAE-AS4841
Upgrade for $1 a day Upgrade your Account Upgrade 4730-00-804-1908Boss Reducer4730008041908 008041908 SAE-AS4841
SAE AS5174-0802 SAE AS4841 MS24399-9 A straight fitting having a boss connection of a different size
Upgrade for $1 a day Upgrade your Account Upgrade 4730-01-621-5064Boss Reducer4730016215064 016215064 SAE-AS4841
SAE AS5174-0802 SAE AS4841 MS24399-9 A straight fitting having a boss connection of a different size
Upgrade for $1 a day Upgrade your Account Upgrade 4730-01-621-5064Boss Reducer4730016215064 016215064 SAE-AS4841
Restrictions 4730-00-277-5078
4730-00-277-5078 is a Tube Fitting Locknut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-277-5078
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-277-5078
- US Army (A920)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- CT
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- US Marine Corps (MC40)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- NICD
- Supplementary Collaborators:
- GTKEHD
- Finland (WF01)
- Effective Date:
- 1 Jan 2009
- Poland (WP01)
- Effective Date:
- 1 Aug 2011
- Brazil (YA01)
- Effective Date:
- 1 Dec 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Malaysia (YW01)
- Effective Date:
- 1 Aug 1997
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Jun 2000
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 4730-00-277-5078
- Part Number
- Manufacturer
- Status
- SAE-AS4841
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- AS5179D10
- 0U583 - Sae International (Active)
- Primary Buy
- Primary Buy
- AS4841
- 0U583 - Sae International (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AN6289D10
- 14397 - Faber Enterprises, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AS4841
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AS5179D10
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AN6289D10
- 88044 - Aeronautical Standards Group (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 10108314
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
Datasheet 4730-00-277-5078
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- Thread Series [BZRR]
- Unf
- Nominal Thread Size [CQJX]
- 0.875 Inches
- Thread Quantity Per Inch [CMLP]
- 14
- Thread Class [AAJD]
- 3B
- Thread Direction [AAJF]
- Right-Hand
- Material [MATT]
- Aluminum Alloy 2014 Overall
- Material Document And Classification [MDCL]
- Qq-A-225/4,Alloy 2014,T6 Fed Spec Single Material Response Overall
- Surface Treatment [SFTT]
- Anodize Overall
- Surface Treatment Document And Classification [STDC]
- Mil-A-8625,Type 2,Class 2 Mil Spec Single Treatment Response Overall
- Nut Style [ACTA]
- Tube Fitting Locknut
- Nut Height [ADEA]
- 0.391 Inches Nominal
- Width Across Flats [ASDB]
- 1.125 Inches Nominal
- Packing Recess Diameter [CFPT]
- 1.045 Inches Nominal
- Packing Recess Depth [CFPW]
- 0.054 Inches Nominal
- Nominal Tube Outside Diameter [CQRJ]
- 0.625 Inches
- Specification/Standard Data [ZZZK]
- 88044-An6289 Government Standard
