4730-00-275-9515
Tube Fitting Socket Welded Ferrule
4730002759515 002759515 VC013-8D ST7M197-8D 63052-8B ST7M197
A flanged cylindrical metallic item designed to be slipped over tubing and welded in place. The rear face of the flange forms a bearing surface for the coupling nut, and the front face is of a contour designed to seat against a mating contour on a fitting. When assembled the joint seals at the seat in a manner similar to a seat type union. View more Tube Fitting Socket Welded Ferrule
May 2023
4
Marketplace 4730-00-275-9515
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-275-9515 5+ Documents (More...)
BUY NE FedMall Updated Every Day 4730-00-275-9515 RQST NE Updated Every Day 4730-00-275-9515 RQST
) https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-275-9515 Tube Fitting Socket Welded Ferrule 002759515
-40C VC013-40C ST7M197 A flanged cylindrical metallic item used with a plain end tube and swaged in
002759515 VC013-8D ST7M197 -8D 63052-8B ST7M197 A flanged cylindrical metallic item designed to be slipped
-40C VC013-40C ST7M197 A flanged cylindrical metallic item used with a plain end tube and swaged in place
Tube Fitting Socket Welded Ferrule 002759515 -8D 63052-8B ST7M197 A flanged cylindrical metallic
-16D ST7M197 A flanged cylindrical metallic item designed to be slipped over tubing and welded in place
ST7M197-16D FERRULE,SOCKET WELDED,TUBE FITTING 3 EA NS Request Quotation ST7M19716D FERRULE,SOCKET WELDED
-24D 63052-24B VC013-24D ST7M197 A flanged cylindrical metallic item designed to be slipped over tubing
your Account Upgrade 4730-01-386-3451Tube Coupling Swage Ferrule4730013863451 013863451 63152-40B ST7M197
Restrictions 4730-00-275-9515
4730-00-275-9515 is a Tube Fitting Socket Welded Ferrule that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4730-00-275-9515
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-275-9515
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Supplementary Collaborators:
- GTKE
Approved Sources 4730-00-275-9515
- Part Number
- Manufacturer
- Status
- VC013-8D
- Manufacturer
- 24984 - Hydraflow (Active)
- Primary Buy
- Primary Buy
- ST7M197-8D
- 76301 - The Boeing Company (Active)
- Secondary Buy
- Secondary Buy
- 63052-8B
- 79326 - Transdigm Inc (Active)
- Secondary Buy
- Secondary Buy
- ST7M197
- 76301 - The Boeing Company (Active)
- Informational Drawing
- Informational Drawing
Datasheet 4730-00-275-9515
- Characteristic
- Specifications
- FIIG
- Specifications
- T385-J
- Casehardening Indicator [AASG]
- Not Casehardened

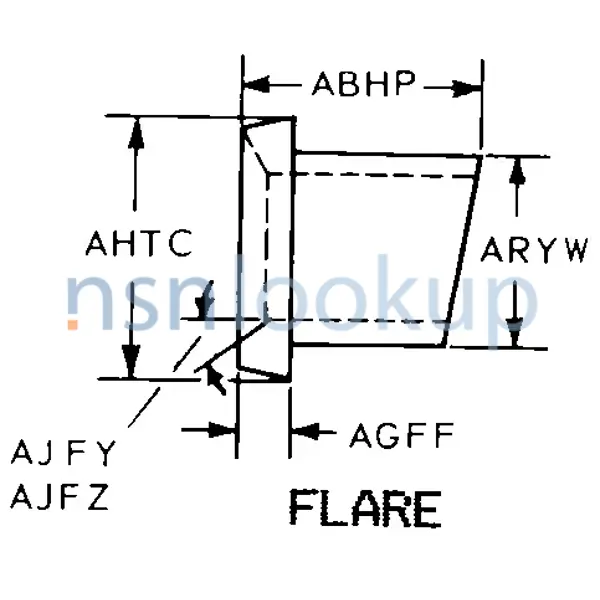

- Flange Outside Diameter [AHTC]
