4730-00-274-3350

Packing Nut

4730002743350 002743350 A1963CPC39 A1964CPC41 A2106CPC7 AD14S46-074PC16 AD14S46-075PC16 AD14S58-074PC16 AR5S46-32PC16 AV4S46-074PC16 BB57S38-025PC13 BB57S58-019PC16 BB55S38-02PC13 BB57S38-024PC13 CL49S58-02PC16 A2039CPC16 A2088CPC16 A2093CPC16 A2099CPC16 A2103CPC16 A2098CPC16 AD14S46-079PC16 AR5S46-072PC16 AR5S46-077PC16 AR5S46-078PC16 AR5S58-36ALT4PC16 BB57S46-038PC16

An item having internal and/or external machine thread(s) (threads other than pipe or hose series), specifically designed to retain, by means or groove(s), shoulder(s), and the like, packing and/or a packing gland within a stuffing box. See also BUSHING, MACHINE THREAD; INVERTED NUT, TUBE COUPLING; and NUT, TUBE COUPLING. Excludes PACKING NUT, STUFFING TUBE; and use with electrical cable, and LOCKNUT, PIPE. View more Packing Nut

Managed by United States

NSN Created on 1 Jan 1961

Data Last Changed
November 2023

NATO Update Count
6

NATO Data Quality

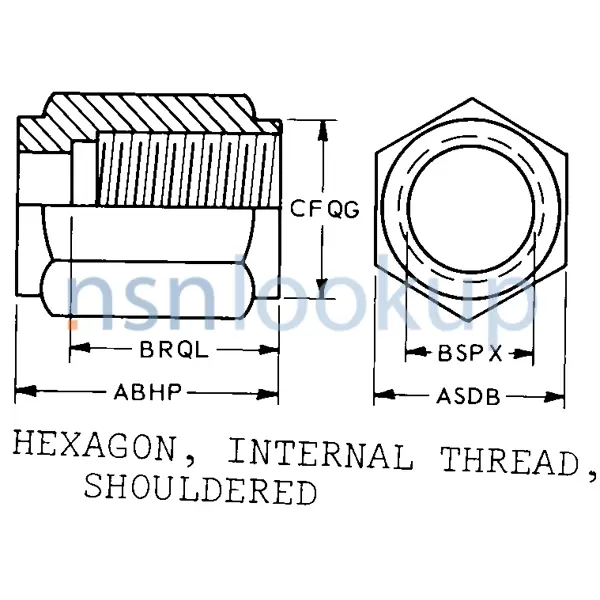

STYL Style C14 for 4730-00-274-3350 1/1 — NSN 4730-00-274-3350 (Identification) 1/1

Marketplace 4730-00-274-3350

Need Help?
Request a Quotation from participating marketplace vendors

Updated Every Day

4730-00-274-3350 RQST NE

Updated Every Day

4730-00-274-3350 RQST

Updated Every Day

4730-00-274-3350 RQST NE

Restrictions 4730-00-274-3350

4730-00-274-3350 is a Packing Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.

End Users 4730-00-274-3350

US Navy (N9BC)
Effective Date:: 1 Apr 2005
Former MOE Rule:: N9CD
Supplementary Collaborators:: HDHX; AMC 3 AMSC H IMC Z IMCACTY GH

Spain (YB01)
Effective Date:: 1 Apr 1991

Turkey (ZW01)
Effective Date:: 1 Nov 1998

Approved Sources 4730-00-274-3350

Part Number
Manufacturer
Status
A1963CPC39: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
A1964CPC41: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
A2106CPC7: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
AD14S46-074PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
AD14S46-075PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
AD14S58-074PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
AR5S46-32PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
AV4S46-074PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
BB57S38-025PC13: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
BB57S58-019PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
BB55S38-02PC13: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
BB57S38-024PC13: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
CL49S58-02PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
A2039CPC16: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
A2088CPC16: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
A2093CPC16: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
A2099CPC16: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
A2103CPC16: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
A2098CPC16: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
AD14S46-079PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
AR5S46-072PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
AR5S46-077PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
AR5S46-078PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
AR5S58-36ALT4PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
BB57S46-038PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
CL40S46-075PC41: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
CL40S46-093PC41: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
A2015CPC16: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
A1962CPC41: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
A1995CPC16: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
AD14S58-70ALT2PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
AR5S58-169PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
AV4S46-079PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
CL49S58-01PC14: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
EA55538-04ALT1PC13: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
A2018CPC16: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
A2029CPC13: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
A2031CPC13: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
A2038CPC16: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
A2058CPC16: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
A2061CPC16: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
A2007CPC16: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
AV4S58-073PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
AV4S58-078PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
AV4S58-50ALT2PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
BB57S38-8ALT1PC13: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
BB57S38-9ALT2PC13: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
BB57S46-044PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
CL55S46-65ALT1PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
DD356S58-134ALT3PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
A2013CPC16: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
A2014CPC16: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
A2055C16: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
A2059CPC16: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
A2086CPC16: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
AR5S46-33PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
AR5S58-067PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
AR5S58-33ALT4PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
AV7S46-133PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
CL40S58-050PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
CL40S58-111ALT1PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
CL47S58-011PC17: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
CV22S46-70ALT1PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
CV22S48-449ALT2PC7: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
A2008CPC16: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
AV7S46-132PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
AV4S46-075PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
BB57S46-039PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
BB57S46-043PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
CL47S58-07PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
CV22S46-64ALT1PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
CV22S46-65ALT1PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
CL55S46-64ALT1PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
CV22S58-61ALT5PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
DD356S46-021PC39: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
A1973CPC17: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
A1980CPC41: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
A2075CPC13: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
AD14S46-080PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
AD14S58-078PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
AD14S58-74ALT1PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
AV4S46-080PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
CV22S46-71ALT1PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
CL55S46-70ALT1PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
CL55S48-449ALT2PC7: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
CL55S58-61ALT5PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
A2016CPC16: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
A2048CPC16: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
A2049CPC16: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
A2054CPC16: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
A2065CPC16: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
A2068CPC16: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
CL40S58-049PC17: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
AR5S46-073PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 4
A2063CPC16: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
A2074CPC13: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
A1972CPC16: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
A1993CPC14: 53553 - Ametek Inc Schutte And Koerting Div (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
BB57S58-016PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
CL49S58-06PC17: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
CL49S58-20ALT1PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
CL55S46-71ALT1PC16: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
DD356S46-011PC41: 80064 - Naval Ship Systems Command (Active); Primary Buy; RNCC 3 RNVC 2 DAC 5
AR5S58-069PC16: 80064 - Naval Ship Systems Command (Active); Canceled/Obsolete; RNCC 5 RNVC 9 DAC 5

Datasheet 4730-00-274-3350

Characteristic
Specifications
FIIG: T385-E
Casehardening Indicator [AASG]: Not Casehardened
Material [MATT]: Copper Alloy 903
Length To Shoulder [BRQL]: 0.625 Inches Nominal
Major Unthreaded Outside Diameter [CFQG]: 1.313 Inches Nominal
Screw Thread Location [BBMM]: Internal
Screw Thread Series Designator [AJYP]: Un
Smallest Inside Diameter [BSPX]: 0.781 Inches Nominal
Overall Length [ABHP]: 0.813 Inches Nominal
Width Across Flats [ASDB]: 1.500 Inches Nominal
Style Designator [STYL]: Hexagon, Internal Thread, Shouldered
Thread Class [AAJD]: 3B
Thread Direction [AAJF]: Right-Hand
Thread Length [AASA]: 0.625 Inches Nominal
Thread Size [ABUJ]: 1.125-16

Subscribe
View Data

DLA Procurement Analysis 4730-00-274-3350

DLA Administrative Lead Time:: Subscribe
DLA Production Lead Time:: Subscribe

Subscribe to View DLA Inventory and Forecast...

Management Data 4730-00-274-3350

Subscribe
View Prices

Effective Date: Organization; Unit of Issue; Unit Price; Qty Unit Pack
Oct 2022: Defense Logistics Agency (DS); EA; Subscribe; 1
Oct 2021: Department of the Navy (DN); EA; Subscribe; 1
Oct 2020: Department of the Navy (DN); EA; Subscribe; 1
Feb 2020: Department of the Navy (DN); EA; Subscribe; 1

Navy

Cognizance:

9B: Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg

NATO Stock Numbers Related to 4730-00-274-3350

4730-99-430-2931 4730-99-762-3698 4730-25-150-0599 4730-21-896-4455 4730-17-025-0287 4730-99-530-3673 4730-99-742-9063 4730-99-712-3506 4730-99-446-2493 4730-15-005-0449 4730-99-559-2810 4730-99-500-2274 4730-99-783-8751 4730-99-558-9380 4730-99-695-3633 4730-99-560-4261 4730-66-155-5761 4730-01-516-1337

Freight Information 4730-00-274-3350

4730-00-274-3350 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 4730-00-274-3350 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 4730-00-274-3350 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 4730-00-274-3350 is not classified as a special type of cargo when transported by water. 4730-00-274-3350 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.

Packaging Data 4730-00-274-3350

Responsible Activity
Packaging Data Source: Primary Inventory Control Activity (PICA); --

Item Pack Level (Unpackaged)

Item Size
Item Weight
Characteristics
Weight/Dimensions Category
Fragility
Item Preservation: --; --; Bare Metal Item; 5lb to 7.5lb, all dimensions less than 24"; Above 110G; --

Unit Pack Level (Packaged)

Quantity per Pack
Unit Size
Unit Weight
Unit Cube
Preservation Method
Cleaning/Drying: 1; --; --; --; Preservative Coating Only; Any Suitable Process

Preservation Material
Wrapping Material
Cushioning/Dunnage
Cushioning Thickness
Container
Special Marking: --; --; --; --; Any Suitable Container; No special marking

Intermediate Pack Level

Quantity of Unit Packs
Container: --

Contracting Technical Data File (CTDF) 4730-00-274-3350 October 2021

Criticality and Quality

Critical Item Code:: X
Flight Safety:
Life Support:
Certified Samples:
Serialization:
First Article Test (FAT):
Certificate of Quality Compliance:
Production Lot Testing:
Special Testing:
Qualified Products List (QPL):

Commercial Properties

Government Furnished Material:
Government Furnished Tooling:
Government Furnished Property:
Price Evaluation Code:
Diminshing Manufacturing Sources:
Warranty:
Commerical Off The Shelf (COTS):
End Item Application:
Auctioning Candidate:
Source of Procurement:
Contract Option:

Restrictions

Boeing Rights Guard:
Export Controlled:
Controlled Technical Data Package (TDP):
Restricted Technical Data Package (TDP):
Contains Classified Material
Weapons System Indicator Code (WSIC):: N

Packaging Requirements

Packaging Determination Table:
Packaging Review Code:
Special Packaging Instruction Number (SPIN):
Special Packaging Instruction Number Revision:
Special Packaging Instruction Number Date:
Pallet Reference Number Required:

Subscribe
View CTDF

Subscribe to View CTDF Details...

Marketplace 4730-00-274-3350

Related Documents 4730-00-274-3350 1+ Documents (More...)

Restrictions 4730-00-274-3350

End Users 4730-00-274-3350

Approved Sources 4730-00-274-3350

Datasheet 4730-00-274-3350

DLA Procurement Analysis 4730-00-274-3350

Management Data 4730-00-274-3350

Navy

NATO Stock Numbers Related to 4730-00-274-3350

Freight Information 4730-00-274-3350

Packaging Data 4730-00-274-3350

Item Pack Level (Unpackaged)

Unit Pack Level (Packaged)

Intermediate Pack Level

Contracting Technical Data File (CTDF) 4730-00-274-3350 October 2021

Criticality and Quality

Commercial Properties

Restrictions

Packaging Requirements
