4730-00-270-3892
Slip Joint Nut
4730002703892 002703892 B16.23 8-633 WW-P-541

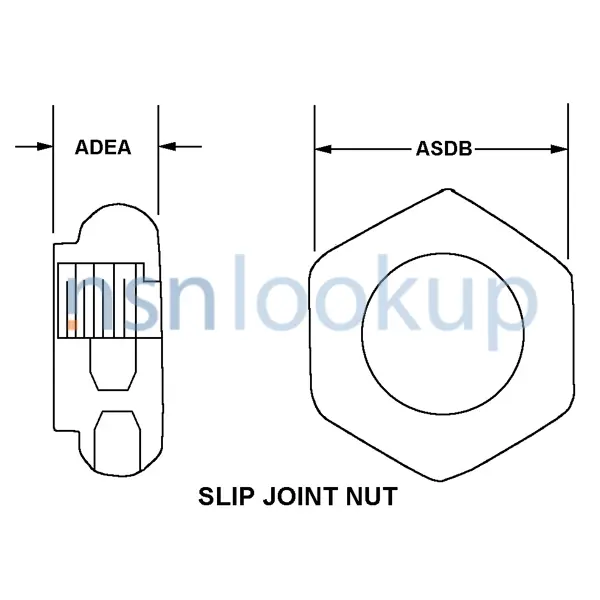

A nut having one female threaded iron pipe size opening and one reduced size nonthreaded opening. It is specifically designed for connecting a nonthreaded end of thin wall tubing to a male threaded pipe or pipe fitting using a compression method consisting of a friction ring and a rubber washer or other equivalent packing. Excludes compression and packing nuts. View more Slip Joint Nut
May 2023
5
Marketplace 4730-00-270-3892
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-270-3892 5+ Documents (More...)
United States (US) 4. 4730-00-270-3892 Marketplace Restrictions Approved Sources Datasheet Management
BUY NE FedMall Updated Every Day 4730-00-270-3892 RQST NE Updated Every Day 4730-00-270-3892 RQST
WW-P-541 FAUCET,SINGLE 8 EA NS Request Quotation Updated Every Day 4510-00-821-8178 RQST NE Updated Every
-541 TY64 A compression type device usually formed of metal, comprising one valvelike unit which WW-P-541
B16.23 Pipe To Tube Straight Adapter 4730011491836 JavaScript in your web browser . 4730-01-149-1836Pipe
Slip Joint Nut 4730002703892 002703892,B16.23 Upgrade for $1 a day Upgrade your Account Upgrade
NUT,SLIP JOINT 92 EA NS Request Quotation B16.23 NUT,SLIP JOINT 92 EA NS Request Quotation 4730-00-270
https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-270-3892 Slip Joint Nut 4730002703892 002703892
8-633 A nut having one female threaded iron pipe size opening and one reduced size nonthreaded opening
https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-270-3892 Slip Joint Nut 4730002703892 002703892
Restrictions 4730-00-270-3892
4730-00-270-3892 is a Slip Joint Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 4730-00-270-3892
- US Army (A920)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- A181
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
Approved Sources 4730-00-270-3892
- Part Number
- Manufacturer
- Status
- B16.23
- Manufacturer
- 05047 - The American Society Of Mechanical (Active)
- Incomplete Reference
- Incomplete Reference
- 8-633
- 14959 - Crane Co (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- WW-P-541
- 81348 - Federal Specifications Promulgated (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4730-00-270-3892
- Characteristic
- Specifications
- FIIG
- Specifications
- A021A0
- Furnished Items [ABFF]
- Friction Ring And Slip Joint Washer
- Material [MATT]
- Copper Alloy Overall
- Nominal Pipe Size Designation [AAGN]
- 0.500 Inches
- Nominal Tube Outside Diameter [CQRJ]
- 0.500 Inches
- Nominal Thread Size [CQJX]
- 0.500 Inches
- Nut Style [ACTA]
- Slip Joint Nut
- Thread Series [BZRR]
- Npsl
- Thread Quantity Per Inch [CMLP]
- 14
- Surface Treatment [SFTT]
- Chromium Overall
- Thread Class [AAJD]
- 2B
- Thread Direction [AAJF]
- Right-Hand
DLA Procurement Analysis 4730-00-270-3892
Management Data 4730-00-270-3892
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4730-00-270-3892
Freight Information 4730-00-270-3892
4730-00-270-3892 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093460. A Sub NMFC of X. It has a NMFC Description of BOLTS/NUTS NOI BBC/ZINC. 4730-00-270-3892 is rated as class 70 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48930 which rates the freight between FCL and LCL. 4730-00-270-3892 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 4730-00-270-3892 is not classified as a special type of cargo when transported by water. 4730-00-270-3892 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-00-270-3892
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM-D5118, Type CF, Class Domestic, Corrugated Fiberboard Box
Contracting Technical Data File (CTDF) 4730-00-270-3892 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
