4730-00-267-3081
Drainage Pipe Trap
4730002673081 002673081 MS90528-4W1 WW-P-491
A device designed to be connected to a drainage system to prevent sewer gas from backing up beyond a desired point by forming a water seal in the line. This is accomplished by its peculiar shape, which is usually in the form of the letter P and S. It is provided with an internal shoulder(s) at the end(s) of its internal threaded or unthreaded portion, whose inside diameter conforms to standard weight wrought iron pipe or copper drainage, waste and vent (DWV) tube. When connected, the mating pipes make up close to the shoulders to eliminate pockets and provide a smooth flow of pipe and/or pipe fitting contents. Excludes TRAP, DRAIN, PLUMBING FIXTURE; and TRAP, SOIL PIPE. View more Drainage Pipe Trap
August 2023
5
Marketplace 4730-00-267-3081
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-267-3081 5+ Documents (More...)
United States (US) 4. 4730-00-267-3081 Marketplace Restrictions Approved Sources Datasheet Management
Every Day 4730-00-267-3081 RQST NE Updated Every Day 4730-00-267-3081 RQST Updated Every Day 4730-00
Pipe Trap 4730002673081 002673081 Upgrade your Account Upgrade 4730-00-267-3081Drainage Pipe Trap4730002673081
002673081 MS90528-4W1 WW-P-491 WWP491 LATERAL,DRAINAGE PIPE 44 EA NS Request Quotation WW-P-491 LATERAL
Drainage Pipe Trap 4730002673081 002673081 day Upgrade your Account Upgrade 4730-00-267-3081Drainage
Pipe Trap4730002673081 002673081 MS90528-4W1 Quotation WWP491 LATERAL,DRAINAGE PIPE 44 EA NS Request
WW-P-491 TEE,DRAINAGE PIPE 6 EA NS Request Quotation WWP491 TEE,DRAINAGE PIPE 44 EA NS Request Quotation
WWP491 TEE-Y,DRAINAGE PIPE 44 EA NS Request Quotation WW-P-491 TEE-Y,DRAINAGE PIPE 6 EA NS Request https
LATERAL,DRAINAGE PIPE 6 EA NS Request WW-P-491 LATERAL,DRAINAGE PIPE 6 EA NS Request Quotation WWP491
LATERAL,DRAINAGE PIPE 6 EA NS Request LATERAL,DRAINAGE PIPE 6 EA NS Request WW-P-491 LATERAL,DRAINAGE
Restrictions 4730-00-267-3081
4730-00-267-3081 is a Drainage Pipe Trap that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-267-3081
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-267-3081
- US Army (A920)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- A181
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- NICD
- Supplementary Collaborators:
- GTJNHD
- Turkey (ZW01)
- Effective Date:
- 1 Dec 2005
Approved Sources 4730-00-267-3081
- Part Number
- Manufacturer
- Status
- MS90528-4W1
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- WW-P-491
- 81348 - Federal Specifications Promulgated (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4730-00-267-3081
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Connection Style [AHNC]
- Drainage (Pipe) All Ends
- Connection Type [AWLS]
- Threaded Internal Pipe All Ends
- Material [MATT]
- Iron Overall
- Nominal Thread Size [CQJX]
- 3.000 Inches All Ends
- Material Document And Classification [MDCL]
- Astm A126 Cl A Assn Std Single Material Response Overall
- Specification/Standard Data [ZZZK]
- 96906-Ms90528 Government Standard
- Style Designator [STYL]

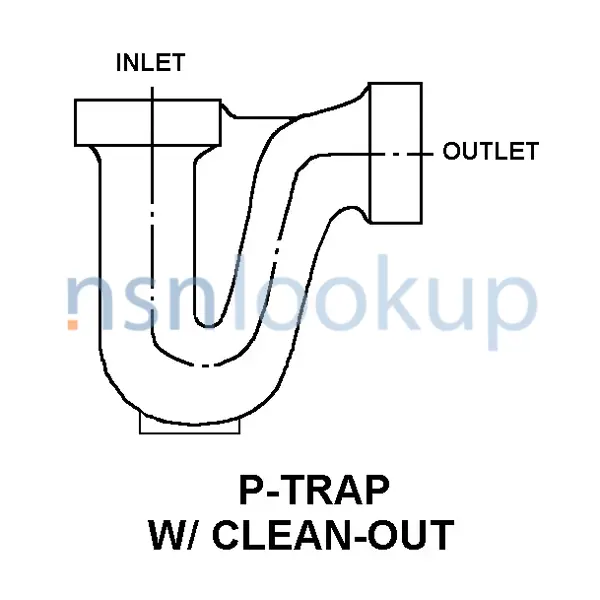

- P-Trap With Clean-Out
- Thread Series Designator [THSD]
- Npt All Ends
DLA Procurement Analysis 4730-00-267-3081
Management Data 4730-00-267-3081
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4730-00-267-3081
Freight Information 4730-00-267-3081
4730-00-267-3081 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052190. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FITTI. 4730-00-267-3081 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30000 which rates the freight between FCL and LCL. 4730-00-267-3081 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 736 for ocean manifesting and military sealift. 4730-00-267-3081 is not classified as a special type of cargo when transported by water. 4730-00-267-3081 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-00-267-3081
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- --
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM-D5118, Type CF, Class Domestic, Corrugated Fiberboard Box
Contracting Technical Data File (CTDF) 4730-00-267-3081 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
