4730-00-247-9507
Pipe Elbow
4730002479507 002479507 808+007 4589K23 05002008

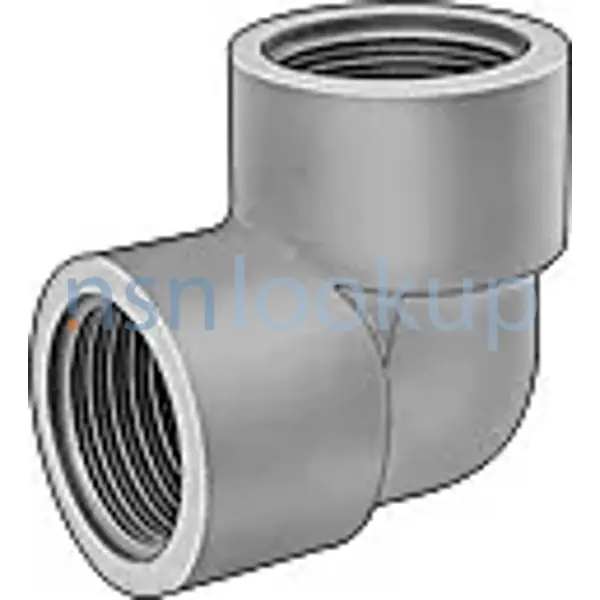

A fitting that forms an angle of less than 180 degrees (3.141 radians) from the straight flow. Both connecting ends have standard pipe threads or are unthreaded and designed to accommodate a pipe. It may have side or heel inlet(s). See also ELBOW, TUBE; and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE. Excludes BEND, SOIL PIPE. View more Pipe Elbow
November 2023
17
Marketplace 4730-00-247-9507
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-247-9507 5+ Documents (More...)
RQST NE Updated Every Day 4730-00-247-9507 RQST NE Updated Every Day 4730-00-247-9507 RQST Updated Every
/fsg-47/fsc-4730/us 4730-00-247-9507 Pipe Elbow 4730002479507 002479507,808+007 808+0074589K2305002008
Pipe Elbow 4730002479507 002479507,808+007 Documents ( More... ) https//www.nsnlookup.com
Navy (DN)NZDiscontinued-Use 4730-00-247-9507Defense Logistics Agency (DS)IZDiscontinued-Use 4730-00-247-9507
Restrictions 4730-00-247-9507
4730-00-247-9507 is a Pipe Elbow that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-247-9507
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-247-9507
- US Army (A920)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZ
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXAX
- US Marine Corps (MC40)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GT
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Mar 2001
Approved Sources 4730-00-247-9507
- Part Number
- Manufacturer
- Status
- 05002008
- Manufacturer
- 61623 - Nibco Inc Chemtrol Div (Active)
- Primary Buy
- Primary Buy
- 05002008
- 14007 - Nibco Inc (Replaced)
- Original Design
- Original Design
- 4589K23
- 39428 - Mcmaster-Carr Supply Co (Active)
- Secondary Buy
- Secondary Buy
- 808+007
- 14889 - George Fischer Sloane, Inc. (Active)
- Advisory Reference
- Advisory Reference
Datasheet 4730-00-247-9507
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Material [MATT]
- Plastic Polyvinyl Chloride Overall
- Connection Type [AWLS]
- Threaded Internal Pipe All Ends
- Connection Style [AHNC]
- Plain (Pipe) All Ends
- Thread Series Designator [THSD]
- Npt All Ends
- Nominal Thread Size [CQJX]
- 0.750 Inches All Ends
- Leg Length [AHSJ]
- 1.656 Inches Nominal All Ends
- Flow Angle [CRFY]
- 90.0 Degrees
DLA Procurement Analysis 4730-00-247-9507
- Last Stock Position:
- 439 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-00-247-9507
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Apr 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Feb 2021
- US Marine Corps (DM)
- EA
- Subscribe
- 1
- EA
- Feb 2020
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- US Marine Corps (DM)
- M
- 0
- Reversal Of Phrase Code Z 4730-01-076-3272
- 0
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 6
- Critical Repair Part to a Non-Combat Essential End Item
- Echelon Management:
- B2
- Material Identification:
- B
- Consumable Repair Parts
- Operational Test:
- No Special Procedures
- Physical Category:
- 1
- Bin
Similar Supply Items to 4730-00-247-9507
Freight Information 4730-00-247-9507
4730-00-247-9507 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 156600. A Sub NMFC of Z. It has a NMFC Description of PLASTIC/RUBBER ARTICLE VIZ:. 4730-00-247-9507 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 77670 which rates the freight between FCL and LCL. 4730-00-247-9507 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 772 for ocean manifesting and military sealift. 4730-00-247-9507 is not classified as a special type of cargo when transported by water. 4730-00-247-9507 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
