4730-00-231-3992

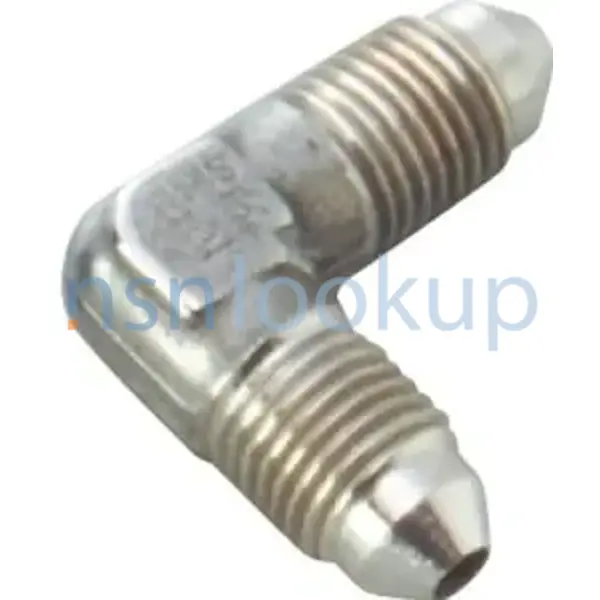

Tube To Boss Elbow
4730002313992 002313992 SAE-AS4841 AS1034-0808 AS1034 AN821-8 AS4841
A fitting that forms an angle of less that 180 degrees (3.141 radians) from a straight flow. One connecting end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like, to form a seal at the boss. It may have side or heel inlet(s). It is designed to connect a tube or tube fitting to a boss or boss fitting on items such as tanks, housings, valve fittings, or the like. View more Tube To Boss Elbow
November 2023
25
Marketplace 4730-00-231-3992
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 4730-00-231-3992 5+ Documents (More...)
AS4841 ELBOW,TUBE TO BOSS 631 EA NS Request Quotation AS1034-0808 ELBOW,TUBE TO BOSS 55 EA NS Request
Quotation AS1034 ELBOW,TUBE TO BOSS 380 EA NS Request Quotation AN821-8 ELBOW,TUBE TO BOSS 132 EA NS
AS1034 AN821-4 A fitting that AS1034-0404 AS4841 AS1034 AN821-4 A fitting that forms an https//www.nsnlookup.com
/fsg-47/fsc-4730/us 4730-00-231-3989 Tube To Boss Elbow 4730002313989 002313989 AS1034-0404 AS4841 AS1034
MS24401K16 AS4841 AS1034K1616 AS1034 A fitting that forms an angle of less that 180 degrees (3.141 radians
AS1034 ELBOW,TUBE TO BOSS 4 EA NS Request Quotation AS4841 ELBOW,TUBE TO BOSS 33 EA NS Request Quotation
To Boss Elbow 4730007203961007203961 -0404 AS4841 AS1034 AN821-4 A fitting that forms an angle of less
/fsg-47/fsc-4730/us 4730-00-231-3992 Tube To Boss Elbow 4730002313992 002313992 $1 a day Upgrade your
AS1034D1010 AS4841 AS1034 AN821-10D A fitting that forms an angle of less that 180 degrees (3.141 radians
AS4841 ELBOW,TUBE TO BOSS 33 EA NS Request Quotation AS1034 ELBOW,TUBE TO BOSS 4 EA NS Request Quotation
Restrictions 4730-00-231-3992
4730-00-231-3992 is a Tube To Boss Elbow that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4730-00-231-3992
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-231-3992
- US Army (A920)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- A181
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GT
- Brazil (YA01)
- Effective Date:
- 1 Aug 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Argentina (YF01)
- Effective Date:
- 1 Jul 2015
- Republic of Korea (ZH01)
- Effective Date:
- 1 Nov 1994
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Mar 2008
Approved Sources 4730-00-231-3992
- Part Number
- Manufacturer
- Status
- SAE-AS4841
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- AS1034-0808
- 0U583 - Sae International (Active)
- Primary Buy
- Primary Buy
- AS1034
- 0U583 - Sae International (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AS1034
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AN821-8
- 88044 - Aeronautical Standards Group (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AS4841
- 0U583 - Sae International (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AS1034-0808
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AS4841
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4730-00-231-3992
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Material [MATT]
- Steel Overall
- Connection Type [AWLS]
- Threaded External Tube All Ends
- Connection Style [AHNC]
- Flared (Tube) All Ends
- Seat Angle [CQRB]
- 37.0 Degrees All Ends
- Nominal Outside Diameter Tube Accommodated [CWFD]
- 0.500 Inches All Ends
- Thread Series Designator [THSD]
- Unjf All Ends
- Nominal Thread Size [CQJX]
- 0.750 Inches All Ends
- Thread Class [AAJD]
- 3A All Ends
- Leg Length [AHSJ]
- 1.250 Inches Nominal All Ends
- Flow Angle [CRFY]
- 90.0 Degrees
- Specification/Standard Data [ZZZK]
- 88044-An821 Government Standard
Weapon Systems (WSDC) 4730-00-231-3992
DLA Procurement Analysis 4730-00-231-3992
- Last Stock Position:
- 21 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-00-231-3992
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4730-00-231-3992
Freight Information 4730-00-231-3992
4730-00-231-3992 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052190. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FITTI. 4730-00-231-3992 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30000 which rates the freight between FCL and LCL. 4730-00-231-3992 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-00-231-3992 is not classified as a special type of cargo when transported by water. 4730-00-231-3992 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-00-231-3992
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- 2lb or less, one dimension 2" or less, other dimensions less than 24"
- Above 110G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- --
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Procurement History 4730-00-231-3992 1 Records
Contracting Technical Data File (CTDF) 4730-00-231-3992 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- H
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
