4730-00-231-3991

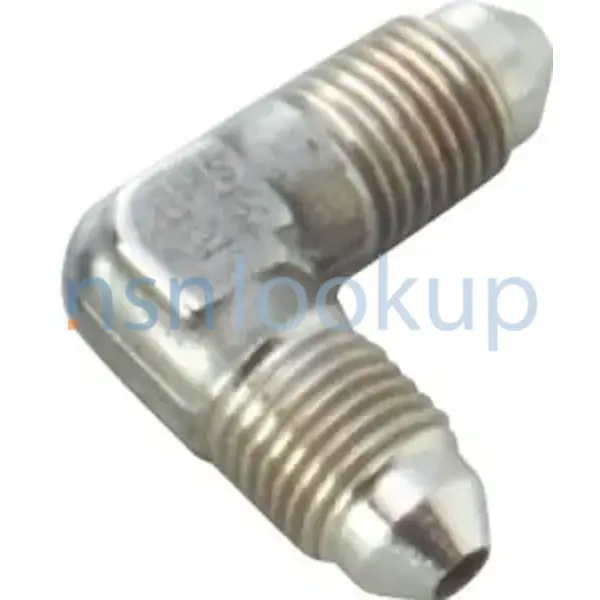

Tube To Boss Elbow

4730002313991 002313991 SAE-AS4841 6ETX 618257 AS1034-0606 AS1034 AS4841 AN821-6M0D AN821-6 MS24401-6 4730004914992 8194674

A fitting that forms an angle of less that 180 degrees (3.141 radians) from a straight flow. One connecting end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like, to form a seal at the boss. It may have side or heel inlet(s). It is designed to connect a tube or tube fitting to a boss or boss fitting on items such as tanks, housings, valve fittings, or the like. View more Tube To Boss Elbow

Managed by United States

NSN Created on 1 Jan 1961

Data Last Changed
November 2023

NATO Update Count
55

NATO Data Quality

4730-00-231-3991 ELBOW,TUBE TO BOSS 4730002313991 002313991 1/1 — 4730-00-231-3991 Photo 1/1
