4730-00-231-3990

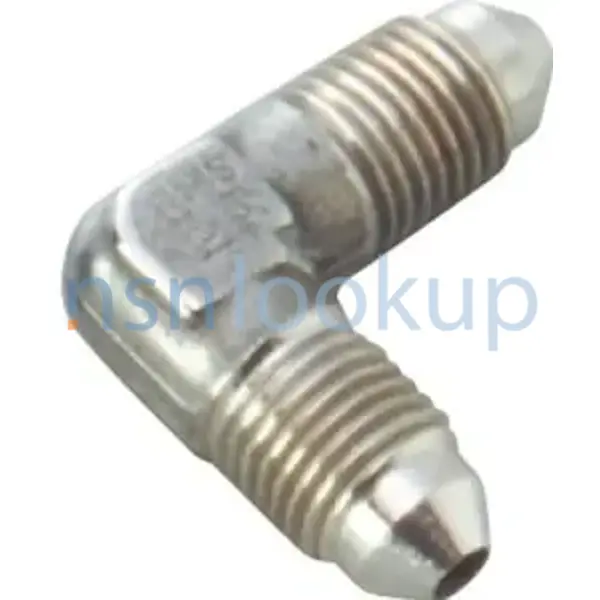

Tube Elbow
4730002313990 002313990 AS1034-0505 AN821-5 AS4841
A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE. View more Tube Elbow
November 2023
42
Marketplace 4730-00-231-3990
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-231-3990 5+ Documents (More...)
AN821-5 ELBOW,TUBE 61 EA NS Request Quotation Updated Every Day 4730-00-231-3990 RQST NE Updated Every
Day 4730-00-231-3990 RQST Updated Every Day 4730-00-231-3990 RQST NE Related Documents 4730-00-231-3990
AN821-5 ELBOW,TUBE 67 EA NS Request Quotation Subscribe to View Vendor Details...
AN821-5 ELBOW,TUBE 440 EA NS Request Quotation Subscribe to View Vendor Details...
Restrictions 4730-00-231-3990
4730-00-231-3990 is a Tube Elbow that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-231-3990
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-231-3990
- US Army (A920)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- A181
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GGGT
- Brazil (YA01)
- Effective Date:
- 1 Jan 2011
- Argentina (YF01)
- Effective Date:
- 1 Jul 2015
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 4730-00-231-3990
- Part Number
- Manufacturer
- Status
- AS1034-0505
- Manufacturer
- 0J583 - Bigger Faster Stronger Inc. (Active)
- Primary Buy
- Primary Buy
- AS1034-0505
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Original Design
- Original Design
- AN821-5
- 00624 - Eaton Aeroquip Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AN821-5
- 30974 - Aerofit, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AN821-5
- 14798 - Designed Metal Connections Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AN821-5
- 71563 - Collins Engineering Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- AN821-5
- 13899 - Hydro-Fitting Manufacturing (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AN821-5
- 14397 - Faber Enterprises, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AN821-5
- 22995 - Crown Fitting Co Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AS4841
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AN821-5
- 88044 - Aeronautical Standards Group (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4730-00-231-3990
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- End Item Identification [AGAV]
- Grumman A10 Aircraft
- Connection Style [AHNC]
- Flared (Tube) All Ends
- Connection Type [AWLS]
- Threaded External Tube All Ends
- Flow Angle [CRFY]
- 90.0 Degrees
- Material [MATT]
- Steel Overall
- Media For Which Designed [MEDA]
- Fluid Single Response
- Nominal Outside Diameter Tube Accommodated [CWFD]
- 0.312 Inches All Ends
- Nominal Thread Size [CQJX]
- 0.500 Inches All Ends
- Leg Length [AHSJ]
- 0.953 Inches Nominal All Ends
- Seat Angle [CQRB]
- 37.0 Degrees All Ends
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Ty 1,Cl 2 Fed Spec Single Treatment Response Overall
- Surface Treatment [SFTT]
- Cadmium Overall
- Thread Class [AAJD]
- 3A All Ends
- Thread Series Designator [THSD]
- Unjf All Ends
