4730-00-231-3989

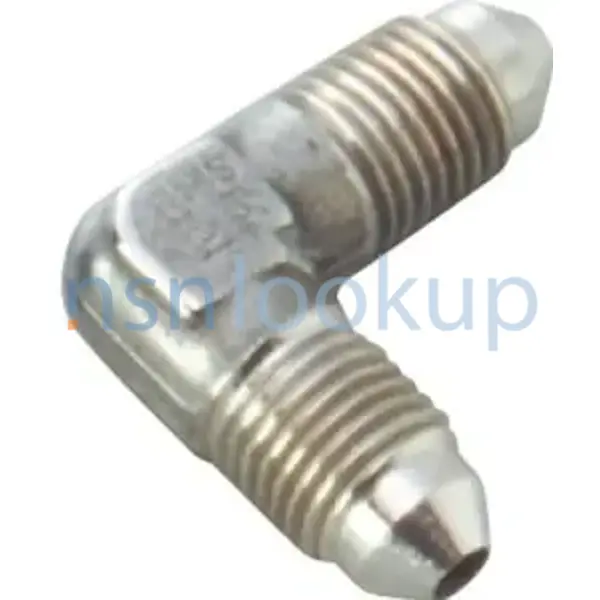

Tube To Boss Elbow
4730002313989 002313989 SAE-AS4841 AS1034-0404 AS4841 AS1034 AN821-4
A fitting that forms an angle of less that 180 degrees (3.141 radians) from a straight flow. One connecting end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like, to form a seal at the boss. It may have side or heel inlet(s). It is designed to connect a tube or tube fitting to a boss or boss fitting on items such as tanks, housings, valve fittings, or the like. View more Tube To Boss Elbow
November 2023
29
Marketplace 4730-00-231-3989
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 4730-00-231-3989 5+ Documents (More...)
AS1034-0404 ELBOW,TUBE TO BOSS 4 EA NS Request Quotation AS4841 ELBOW,TUBE TO BOSS 33 EA NS Request Quotation
AS1034-0404 ELBOW,TUBE TO BOSS 79 EA NS Request Quotation AS1034 ELBOW,TUBE TO BOSS 380 EA NS Request
-0404 AS4841 AS1034 AN821-4 A fitting that AS1034-0404 AS4841 AS1034 AN821-4 A fitting that forms an
SAE-AS4841 AS1034-0404 AS4841 AS1034 AN821-4 A fitting that forms an angle of less that 180 degrees
AS1034 AN821-4 A fitting that AS1034-0404 AS4841 AS1034 AN821-4 A fitting that forms an https//www.nsnlookup.com
/fsg-47/fsc-4730/us 4730-00-231-3989 Tube To Boss Elbow 4730002313989 002313989 AS1034-0404 AS4841 AS1034
-0404 AS4841 AS1034 AN821-4 A fitting that forms an angle of less that 180 degrees (3.141 radians AS1034
-0404 AS4841 AS1034 AN821-4 A fitting that forms an angle of less that 180 degrees (3.141 radians AS1034
AN821-24D AS1034D2424 AS4841 AS1034 A fitting that forms an angle of less that 180 degrees (3.141 radians
AS1034 ELBOW,TUBE TO BOSS 4 EA NS Request Quotation AS4841 ELBOW,TUBE TO BOSS 33 EA NS Request Quotation
Restrictions 4730-00-231-3989
4730-00-231-3989 is a Tube To Boss Elbow that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
