4730-00-231-0003
Soil Pipe Tee
4730002310003 002310003 WWP401

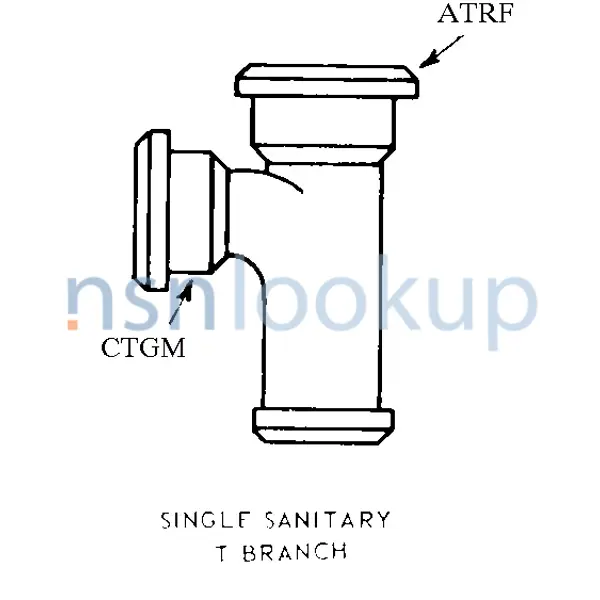

A fitting consisting of a run and a branch. The branch may be either curved or straight, but the axis of the end connection intersects the axis of the run at right angles. It may have side inlets. View more Soil Pipe Tee
May 2023
4
Marketplace 4730-00-231-0003
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-231-0003 5+ Documents (More...)
//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-231-0003 Soil Pipe Tee 4730002310003002310003,WWP401
Soil Pipe Tee 4730002310003002310003,WWP401 NE FedMall Updated Every Day 4730-00-231-0003 RQST
Soil Pipe Tee 4730002310003 002310003,WWP401 FedMall Updated Every 15 Minutes 4730-00-231-0003
Navy (DN)NZDiscontinued-Use 4730-00-231-0003Defense Logistics Agency (DS)IZDiscontinued-Use 4730-00-231-0003
Soil Pipe Tee 4730002310003 002310003,WWP401 NE FedMall Updated Every Day 4730-00-231-0003 RQST
NE Updated Every Day 4730-00-231-0003 RQST Updated Every Day 4730-00-231-0003 RQST NE Related Documents
Soil Pipe Tee 4730002310003 002310003,WWP401 NE FedMall Updated Every Day 4730-00-231-0003 RQST
NE Updated Every Day 4730-00-231-0003 RQST Updated Every Day 4730-00-231-0003 RQST NE Related Documents
Soil Pipe Tee 4730002310003 002310003,WWP401 Every Day 4730-00-231-0003 RQST NE Related Documents
4730-00-231-0003 5+ Documents ( More... ) https NE FedMall Updated Every Day 4730-00-231-0003 RQST NE
Restrictions 4730-00-231-0003
4730-00-231-0003 is a Soil Pipe Tee that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-231-0003
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-231-0003
- US Army (A920)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- A181
Approved Sources 4730-00-231-0003
- Part Number
- Manufacturer
- Status
- WWP401
- Manufacturer
- 81348 - Federal Specifications Promulgated (Active)
- Incomplete Standard
- Incomplete Standard
Datasheet 4730-00-231-0003
- Characteristic
- Specifications
- FIIG
- Specifications
- A21000
- Branch Nominal Pipe Size Accommodated [CTGM]
- 2.000 Inches
- Material [MATT]
- Iron Cast
- Nominal Pipe Size [ATRF]
- 4.000 Inches
- Nondefinitive Spec/Std Data [ZZZT]
- Xh Class
- Wall Thickness Designation [AAGP]
- Extra Heavy Weight
- Style Designator [STYL]
- Single Sanitary T Branch
- Surface Treatment [SFTT]
- Tar
DLA Procurement Analysis 4730-00-231-0003
Management Data 4730-00-231-0003
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
NATO Stock Numbers Related to 4730-00-231-0003
Freight Information 4730-00-231-0003
4730-00-231-0003 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052190. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FITTI. 4730-00-231-0003 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30000 which rates the freight between FCL and LCL. 4730-00-231-0003 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-00-231-0003 is not classified as a special type of cargo when transported by water. 4730-00-231-0003 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-00-231-0003
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- No Requirement
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM-D5118, Type CF, Class Domestic, Corrugated Fiberboard Box
Contracting Technical Data File (CTDF) 4730-00-231-0003 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- N
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
