4730-00-226-8294
Hose Clamp
4730002268294 002268294 0709 R5005-545 R5005 00285-003-00 812240 10237901 105
A clamp in which the body (band or wire) completely encircles an item and distributes a relatively even amount of pressure throughout the entire 360 degrees (6.282 radians) of the periphery of the item to be compressed. Its compression quality is dependent upon an integral screw mechanism, (screw, bolt spring compression and the like mechanical fasteners), or it may be applied by a device not integral with the clamp itself. It is specifically designed to prevent leakage between a hose and its attaching connection(s) when the body of the clamp is round or circular. For square, rectangular, or irregularly shaped items, see CLAMP, HOSE, SPECIAL-SHAPED. Excludes CLAMP, ELECTRICAL; CLAMP, LOOP; CLAMP, FIRE HOSE, SHUTOFF; FERRULE (as modified); and HAND SCREW. View more Hose Clamp
November 2023
10
Marketplace 4730-00-226-8294
Request a Quotation from participating marketplace vendors
Updated Every Day Updated Every Day
Updated Every Day Related Documents 4730-00-226-8294 5+ Documents (More...)
0709 CLAMP,HOSE 3 EA NS Request Quotation Subscribe to View Vendor Details... 105 CLAMP,HOSE 1 EA NS
View Vendor Details... 105 CLAMP,HOSE 2 EA NS Request Quotation Updated Every Day 4730-00-226-8294 RQST
www.nsnlookup.com /fsg-66/fsc-6605/us 6605-01-487-5331 Gins Unit 6605014875331 014875331,812240-0004 812240
/fsc-6605/us 6605-01-487-5331 Gins Unit 6605014875331 014875331,812240-0004 812240-00045VK00143-101812203
Request a Quotation from participating marketplace vendors Request Global Test Supply R5005 REED R5005
https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-226-8294 Hose Clamp 4730002268294 002268294,0709
/fsg-66/fsc-6605/us
https//www.nsnlookup.com /fsg-66/fsc-6605/us 6605-01-587-3152 Inertial Navigation Unit 6605015873152 812240
day Upgrade your Account Upgrade 6605-01-587-3152Inertial Navigation Unit6605015873152 015873152 812240
/fsg-66/fsc-6605/us
6605/us 6605-01-567-4719 Inertial Navigation Unit 6605015674719 self-contained Unit 6605015674719 812240
/fsg-59/fsc-5905/fr 5905-14-216-5053 Thermal Resistor 5905142165053 142165053 Unit 6605015873152 812240
Restrictions 4730-00-226-8294
4730-00-226-8294 is a Hose Clamp that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-226-8294
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-226-8294
- US Army (A920)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZ
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- KE
- Spain (YB01)
- Effective Date:
- 1 Feb 1994
- New Zealand (ZE01)
- Effective Date:
- 1 May 1997
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 4730-00-226-8294
- Part Number
- Manufacturer
- Status
- 0709
- Manufacturer
- 25281 - Oetiker, Inc (Active)
- Primary Buy
- Primary Buy
- R5005-545
- 72216 - United Technologies Automotive Inc (Active)
- Primary Buy
- Primary Buy
- R5005
- 72216 - United Technologies Automotive Inc (Active)
- Secondary Buy
- Secondary Buy
- 00285-003-00
- 57730 - Machida Incorporated (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 812240
- 49185 - Terex American Crane Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 10237901
- 33882 - Tesco Cable Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 105
- 25281 - Oetiker, Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 812240
- 02280 - American Hoist And Derrick Co (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4730-00-226-8294
- Characteristic
- Specifications
- FIIG
- Specifications
- A12700
- Fastening Device Type [AXWJ]
- Ear Clamped
- Material [MATT]
- Steel Overall Or Steel Comp 1010 Overall
- Inside Diameter [AARX]
- 0.359 Inches Nominal
- Material Document And Classification [MDCL]
- Aisi 66 Or Sae1010 Assn Std Single Material Response Overall
- Overall Width [ABMK]
- 0.281 Inches Nominal

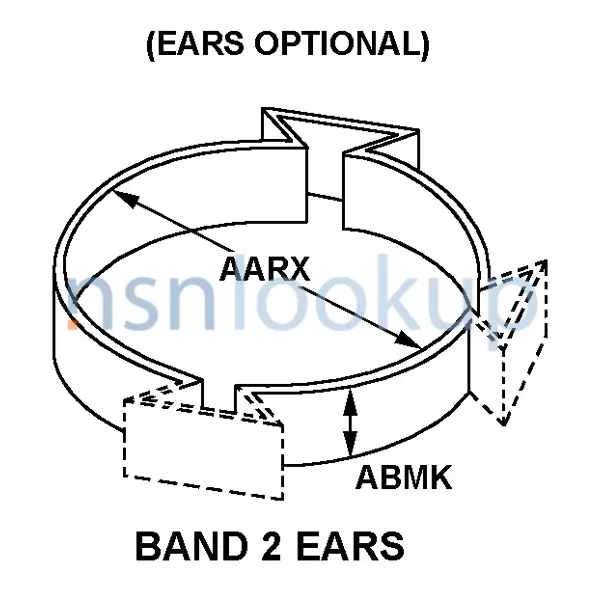

- Style Designator [STYL]
- Band, 2 Ears
- Surface Treatment [SFTT]
- Zinc Overall Or Chromate Zinc Overall
Weapon Systems (WSDC) 4730-00-226-8294
DLA Procurement Analysis 4730-00-226-8294
- Last Stock Position:
- 122 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-00-226-8294
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Air Force
- Fund:
- SF
- Stock fund applicable to items managed for the Air Force by the respective Inventory Control Point
- Budget:
- 9
- 57X4921.070 - General Support DIV - Air Force decentralized managed expense items (ERRC XB3, XF3) with a unit cost of less than $250,000 that are requisitioned/procured at base (retail) level from DLA, GSA, Army, Navy, Depot Maintenance Service, Air Force Industrial Fund (AFMC), local manufacture and commercial vendors
- Aggregation Code:
- SX
- SICA RESIDUAL MMAC-OC-ALC
- Price Validation Code:
- N
- The current standard price in Catalog Management Data (CMD) has not analyzed or coded for LP/LM.
The price has not been analyzed or reviewed for accuracy.
ZOP or Standard price challenges are permissible but must be supported with adequate justification. However, if coded for Local Purchase (LP) or Fabrication/Manufacture as indicated with an (LM) Acquisition Advice Code of “L” or “F”, then it must be evaluated locally where purchased or fabricated.
- Expendability
Recoverability
Repairability: - N
- Expendable. Condemn at User. Stock Fund (except Munitions).
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4730-00-226-8294
Freight Information 4730-00-226-8294
4730-00-226-8294 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 094110. A Sub NMFC of X. It has a NMFC Description of CLAMPS CONDUIT/MUFFLER/PIPE U-BOLT. 4730-00-226-8294 is rated as class 55 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 49780 which rates the freight between FCL and LCL. 4730-00-226-8294 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 713 for ocean manifesting and military sealift. 4730-00-226-8294 is not classified as a special type of cargo when transported by water. 4730-00-226-8294 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-00-226-8294
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
Procurement History 4730-00-226-8294 1 Records
Contracting Technical Data File (CTDF) 4730-00-226-8294 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
