4730-00-226-6896

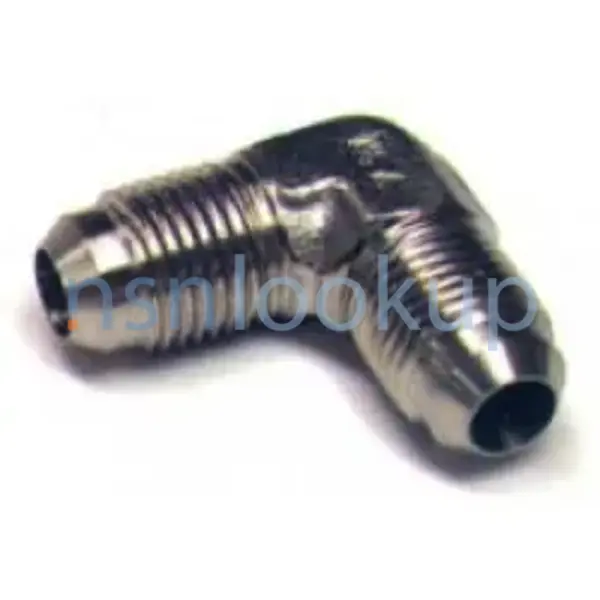

Tube To Boss Elbow
4730002266896 002266896 SAE-AS4841 AS1034J0505 AS4841 AN821-5C AN821-5J
A fitting that forms an angle of less that 180 degrees (3.141 radians) from a straight flow. One connecting end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like, to form a seal at the boss. It may have side or heel inlet(s). It is designed to connect a tube or tube fitting to a boss or boss fitting on items such as tanks, housings, valve fittings, or the like. View more Tube To Boss Elbow
August 2023
16
Marketplace 4730-00-226-6896
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-226-6896 5+ Documents (More...)
AN821-5J ELBOW,TUBE TO BOSS 2862 EA NS Request Quotation AS4841 ELBOW,TUBE TO BOSS 631 EA NS Request
SAE-AS4841 /fsg-47/fsc-4730/us 4730-00-279-0118 Tube Elbow 4730002790118 002790118 AS1038-0202 MIL-F
SAE-AS4841 /fsg-47/fsc-4730/us 4730-00-279-0118 Tube Elbow 4730002790118 002790118 AS1038-0202 MIL-F
004816655 SAE-AS4841 https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-190-0202 Tube Coupling Nut
SAE-AS4841 /fsg-47/fsc-4730/us 4730-00-279-0118 Tube Elbow 4730002790118 002790118 AS1038-0202 MIL-F
004816655 SAE-AS4841 https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-190-0202 Tube Coupling Nut
Restrictions 4730-00-226-6896
4730-00-226-6896 is a Tube To Boss Elbow that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4730-00-226-6896
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-226-6896
- US Army (A920)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- A181
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Malaysia (YW01)
- Effective Date:
- 1 Aug 2000
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Mar 2008
Approved Sources 4730-00-226-6896
- Part Number
- Manufacturer
- Status
- SAE-AS4841
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- AS1034J0505
- 0U583 - Sae International (Active)
- Primary Buy
- Primary Buy
- AS4841
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AS4841
- 0U583 - Sae International (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AN821-5C
- 88044 - Aeronautical Standards Group (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AS1034J0505
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AN821-5J
- 88044 - Aeronautical Standards Group (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4730-00-226-6896
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- End Item Identification [AGAV]
- Aircraft Application
- Connection Style [AHNC]
- Flared (Tube) All Ends
- Connection Type [AWLS]
- Threaded External Tube All Ends
- Flow Angle [CRFY]
- 90.0 Degrees
- Material [MATT]
- Steel Comp 304 Overall
- Nominal Outside Diameter Tube Accommodated [CWFD]
- 0.312 Inches All Ends
- Nominal Thread Size [CQJX]
- 0.500 Inches All Ends
- Leg Length [AHSJ]
- 0.953 Inches Nominal All Ends
- Material Document And Classification [MDCL]
- 66 Fed Std Single Material Response Overall
- Seat Angle [CQRB]
- 37.0 Degrees All Ends
- Thread Series Designator [THSD]
- Unf All Ends
- Specification/Standard Data [ZZZK]
- 81343-As1034j0505 Professional/Industrial Association Standard
- Thread Class [AAJD]
- 3A All Ends
