4730-00-224-7323

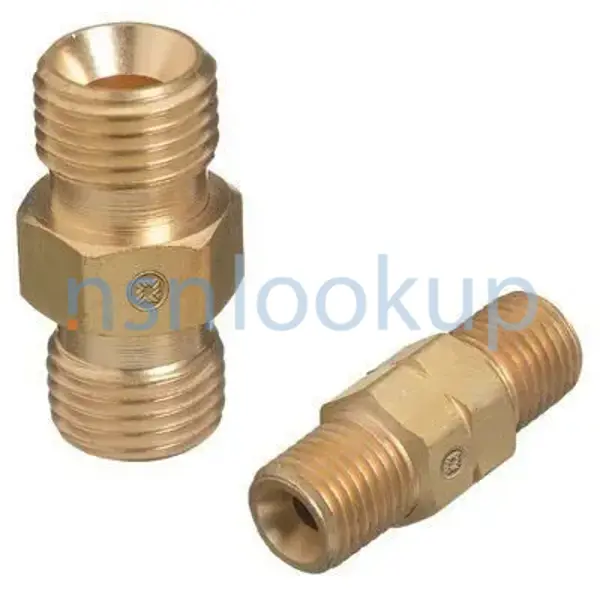

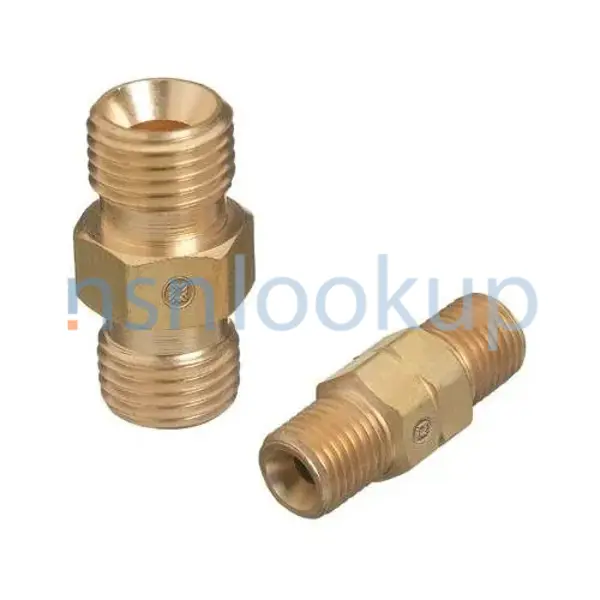

Tube Nipple
4730002247323 002247323 31 0960-0034 C51 CGA-023 ITEM NO. 31
A straight, one-piece fitting used to join a tube or tube fitting to another tube or tube fitting. It may have any type externally threaded tube connections of the same size on both ends and is usually shaped externally at the center to accommodate a wrench. It may include nuts, sleeves, and/or grommets. View more Tube Nipple
November 2023
19
Marketplace 4730-00-224-7323
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-224-7323 5+ Documents (More...)
/fsg-47/fsc-4730/us
C51 NIPPLE,TUBE 1 EA NS Request Quotation Subscribe to View Vendor Details... -31 NIPPLE,TUBE 2 EA NS
10 EA NS Request Quotation C51 NIPPLE,TUBE 10 EA NS Request Quotation 31 NIPPLE,TUBE 10 EA NS Request
C51 RELAY 1 EA NS Request Quotation Subscribe to View Vendor Details...
-47/fsc-4730/us 4730-00-224-7323 Tube Nipple 4730002247323 002247323,31 a day Upgrade your Account Upgrade
Restrictions 4730-00-224-7323
4730-00-224-7323 is a Tube Nipple that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-224-7323
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-224-7323
- US Army (A920)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- A181
- Supplementary Receivers:
- BF
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- FXAX
- NASA (G860)
- Effective Date:
- 1 Feb 1996
- US Marine Corps (MC40)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2006
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTHD
- Spain (YB01)
- Effective Date:
- 1 Oct 2003
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
Approved Sources 4730-00-224-7323
- Part Number
- Manufacturer
- Status
- 31
- Manufacturer
- 16166 - Western Enterprises Div Of Scott And (Active)
- Primary Buy
- Primary Buy
- 0960-0034
- 63026 - Victor Equipment Co (Active)
- Primary Buy
- Primary Buy
- C51
- 52929 - Superior Products, Llc. (Active)
- Secondary Buy
- Secondary Buy
- CGA-023 ITEM NO. 31
- 16166 - Western Enterprises Div Of Scott And (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4730-00-224-7323
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Material [MATT]
- Copper Alloy Overall
- Style Designator [STYL]
- Inverted Flare W/ Center Wrenching Facility
- Connection Type [AWLS]
- Threaded External Gas Fitting All Ends
- Connection Style [AHNC]
- Inverted Flare (Gas Fitting) All Ends
- Seat Angle [CQRB]
- 30.0 Degrees All Ends
- Thread Series Designator [THSD]
- Unf All Ends
- Nominal Thread Size [CQJX]
- 0.562 Inches All Ends
- Thread Class [AAJD]
- 3A All Ends
- Nominal Overall Length [CWFR]
- 1.125 Inches
- Special Features [FEAT]
- Left Hand Threads On Both Ends
Weapon Systems (WSDC) 4730-00-224-7323
DLA Procurement Analysis 4730-00-224-7323
- Last Stock Position:
- 487 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-00-224-7323
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Feb 2020
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 2
- Non-Critical Repair Part
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 4730-00-224-7323
Freight Information 4730-00-224-7323
4730-00-224-7323 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052185. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FIT. 4730-00-224-7323 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29950 which rates the freight between FCL and LCL. 4730-00-224-7323 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-00-224-7323 is not classified as a special type of cargo when transported by water. 4730-00-224-7323 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-00-224-7323
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM - D5118, Fiberboard Box
Procurement History 4730-00-224-7323 1 Records
Contracting Technical Data File (CTDF) 4730-00-224-7323 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- J
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
