4730-00-223-7007

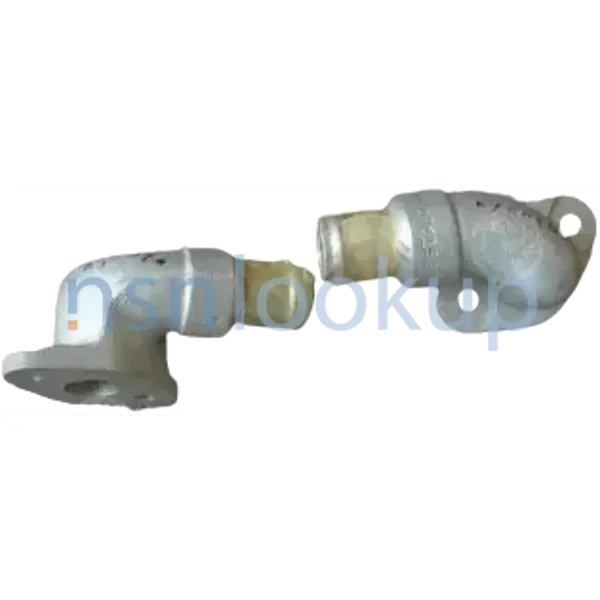

Flange To Hose Elbow
4730002237007 002237007 8761597
A fitting that forms an angle of less than 180 degrees (3.141 radians) from the straight flow. It has a flange connection on one end designed to connect with another flange connection, or a compression type mounting pad. The other end has standard hose threads, an incomplete part of a threaded end connection that grips the hose directly, or is unthreaded and designed toaccommodate a hose. It may have side and/or heel inlet(s). View more Flange To Hose Elbow
July 2025
24
Marketplace 4730-00-223-7007
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-223-7007 1+ Documents (More...)
United States (US) 4. 4730-00-223-7007 Marketplace Restrictions Approved Sources Datasheet Management
RQST NE Updated Every Day 4730-00-223-7007 RQST Updated Every Day 4730-00-223-7007 RQST NE Related
Restrictions 4730-00-223-7007
4730-00-223-7007 is a Flange To Hose Elbow that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 4730-00-223-7007
- US Army (A920)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZ
- US Marine Corps (MC40)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Brazil (YA01)
- Effective Date:
- 1 Mar 2001
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Morocco (YP01)
- Effective Date:
- 1 Dec 2011
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Mar 2002
Approved Sources 4730-00-223-7007
- Part Number
- Manufacturer
- Status
- 8761597
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
- 4730002237007
- SCY13 - E.C.A Etablissement (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 4730002237007
- A00AM - E.C.A Etablissement Central Des (Active)
- NATO Reference
- NATO Reference
Datasheet 4730-00-223-7007
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Bolt Hole Nominal Diameter [CWCQ]
- 0.344 Inches 1St End
- Bolt Hole Quantity [AECS]
- 2 1St End
- Connection Style [AHNC]
- Beaded (Hose) 2Nd End
- Connection Type [AWLS]
- Flange 1St End
- Connection Type [AWLS]
- Unthreaded External Hose 2Nd End
- Flange Face Design [CWDF]
- Plain 1St End
- Flange Shape [ARKN]
- Oval With Holes 1St End
- Flow Angle [CRFY]
- 90.0 Degrees
- Material Document And Classification [MDCL]
- Qq-I-666,Gr 2 Fed Spec Single Material Response Flange
- Nominal Inside Diameter Hose Accommodated [CWDW]
- 1.000 Inches 2Nd End
- Nominal Width [AKGF]
- 1.880 Inches 1St End
- Leg Length [AHSJ]
- 2.190 Inches Nominal 2Nd End
- Leg Length [AHSJ]
- 1.320 Inches Minimum 1St End And 1.360 Inches Maximum 1St End
- Material Document And Classification [MDCL]
- Mil-I-11466,Gr D5506 Mil Spec Single Material Response Tube
- Special Features [FEAT]
- 30 Deg Angle From Center Line Of Flange End To Outlet
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Ty 1,Cl 2 Fed Spec Single Treatment Response Flange Or Qq-Z-325,Ty 2,Cl 2 Fed Spec Single Treatment Response Flange
- Surface Treatment Document And Classification [STDC]
- Qq-P-416,Ty 1,Cl 2 Fed Spec Single Treatment Response Tube Or Qq-Z-325,Ty 2,Cl 2 Fed Spec Single Treatment Response Tube
- Surface Treatment [SFTT]
- Cadmium Flange Or Zinc Flange
- Surface Treatment [SFTT]
- Cadmium Tube Or Zinc Tube
Weapon Systems (WSDC) 4730-00-223-7007
DLA Procurement Analysis 4730-00-223-7007
- Last Stock Position:
- 40 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-00-223-7007
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Jul 2023
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Jun 2023
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Oct 2022
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
- Jan 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Feb 2020
- Department of the Army (DA)
- EA
- Subscribe
- 1
- EA
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 4730-00-223-7007
Freight Information 4730-00-223-7007
4730-00-223-7007 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052190. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FITTI. 4730-00-223-7007 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. 4730-00-223-7007 is rated as class 50 when transported by Less-Than Carload (LCL) rail or ocean freight. It has a Uniform Freight Classification (UFC) number of 30000 which rates the freight between FCL and LCL. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-00-223-7007 is not classified as a special type of cargo when transported by water. 4730-00-223-7007 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-00-223-7007
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- 4.0" H x -- W x -- L
- --
- --
- Physical Protection
- Any Suitable Process
- 4.0" H x -- W x -- L
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Contracting Technical Data File (CTDF) 4730-00-223-7007 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- L
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
