4730-00-204-3457

Tube To Boss Elbow

4730002043457 002043457 SAE-AS4841 AN821-4J AS1034J0404 AS1034 AS4841

A fitting that forms an angle of less that 180 degrees (3.141 radians) from a straight flow. One connecting end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like, to form a seal at the boss. It may have side or heel inlet(s). It is designed to connect a tube or tube fitting to a boss or boss fitting on items such as tanks, housings, valve fittings, or the like. View more Tube To Boss Elbow

4730-00-204-3457 ELBOW,TUBE TO BOSS 4730002043457 002043457

Managed by United States
NSN Created on 1 Jan 1961
Data Last Changed
November 2023
NATO Update Count
53
NATO Data Quality
4730-00-204-3457 ELBOW,TUBE TO BOSS 4730002043457 002043457 1/1

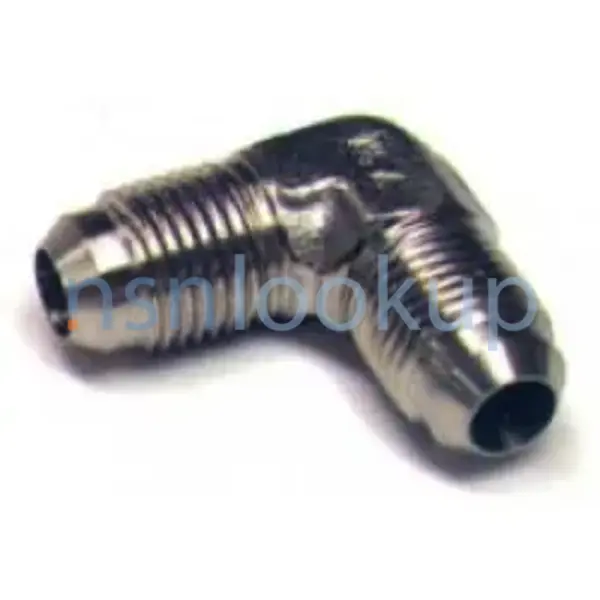

4730-00-204-3457 Photo 1/1

4730-00-204-3457 Stock and Availability Marketplace 4730-00-204-3457

4730-00-204-3457 Related Documents Related Documents 4730-00-204-3457 5+ Documents (More...)

SAE-AS4841 AN821-4J AS1034J0404 AS1034 AS4841 A fitting that forms an angle of less that 180 degrees
AS4841 ELBOW,TUBE TO BOSS 2 EA NS Request Quotation Updated Every Day 4730-00-204-3457 RQST NE Updated
AS1034K0808 AS4841 AN821-8J AS1034 MS24401K8 A fitting that forms an angle of less that 180 degrees
727-5897 4730-00-808-8294 4730-00-231-3987 4730-00-231-3993 4730-00-226-6896 4730-00-194-1039 4730-00-204-3457
727-5897 4730-00-808-8294 4730-00-231-3987 4730-00-231-3993 4730-00-226-6896 4730-00-194-1039 4730-00-204-3457
Upgrade for $1 a day Upgrade your Account Upgrade 4730-00-804-1935Tube Elbow4730008041935 008041935 AS1034J0404
AS1034J0404 ELBOW,TUBE 24 EA NS Request Quotation FedMall Updated Every 15 Minutes 4730-00-804-1935 BUY
Tube To Boss Elbow 4730002043457 002043457 your Account Upgrade 4730-00-204-3457Tube To Boss Elbow4730002043457
$1 a day Upgrade your Account Upgrade 4730-00-143-3894Tube To Boss Elbow4730001433894 001433894 SAE-AS4841
AS1034K0808 AS4841 AN821-8J AS1034 MS24401K8 A fitting that forms an angle of less that 180 degrees
AS4841 ELBOW,TUBE 33 EA NS Request Quotation AS1034 ELBOW,TUBE 4 EA NS Request Quotation Subscribe to

4730-00-204-3457 Demil Restrictions 4730-00-204-3457

DEMIL: A | DEMILI: 1 | CRITICALITY: X | HMIC: N | PMIC: A | EDC: | ADPEC:

4730-00-204-3457 is a Tube To Boss Elbow that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.

4730-00-204-3457 HTS and ScheduleB Import and Export 4730-00-204-3457

4730-00-204-3457 End Users End Users 4730-00-204-3457

US Army (A920)
Effective Date:
1 Apr 2005
US Coast Guard (C911)
Effective Date:
1 Sep 2009
Supplementary Receivers:
XH
US Air Force (FXGC)
Effective Date:
1 Apr 2005
NASA (G170)
Effective Date:
1 Mar 2001
US Navy (N9BC)
Effective Date:
1 Apr 2005
Supplementary Collaborators:
GTKE
Poland (WP)
Poland (WP01)
Effective Date:
1 Aug 2011
Brazil (YA)
Brazil (YA01)
Effective Date:
1 May 2013
Spain (YB)
Spain (YB01)
Effective Date:
1 Apr 1991
Israel (YD01)
Effective Date:
1 Aug 2016
Singapore (YJ01)
Effective Date:
1 Jun 2015
Malaysia (YW)
Malaysia (YW01)
Effective Date:
1 Aug 2000
Australia (ZA)
Australia (ZA01)
Effective Date:
1 Apr 1991
Canada (ZC)
Canada (ZC01)
Effective Date:
1 Apr 1991
New Zealand (ZE)
New Zealand (ZE01)
Effective Date:
1 Apr 1991
France (ZF)
France (ZF01)
Effective Date:
1 Apr 1991
Germany (ZG01)
Effective Date:
1 Jun 2015
Republic of Korea (ZH01)
Effective Date:
1 Oct 2014
United Kingdom (ZK)
United Kingdom (ZK01)
Effective Date:
1 Apr 1991
Portugal (ZP)
Portugal (ZP01)
Effective Date:
1 Apr 1991
Italy (ZR)
Italy (ZR01)
Effective Date:
1 Jun 1997
Norway (ZT)
Norway (ZT01)
Effective Date:
1 Apr 1991
Greece (ZU)
Greece (ZU01)
Effective Date:
1 Mar 2008
Turkey (ZW)
Turkey (ZW01)
Effective Date:
1 Nov 2005
United States of America (ZZ)

4730-00-204-3457 Manufacturers Approved Sources 4730-00-204-3457

Part Number
Manufacturer
Status
SAE-AS4841
0U583 - Sae International (Active)
Incomplete Reference
AN821-4J
13899 - Hydro-Fitting Manufacturing (Active)
Incomplete Secondary Reference
AN821-4J
30974 - Aerofit, Llc (Active)
Incomplete Secondary Reference
AS1034J0404
59680 - B. & E. Manufacturing Co., Inc. (Active)
Incomplete Secondary Reference
AN821-4J
06581 - Allan Aircraft Supply Co., Llc (Active)
Incomplete Secondary Reference
AS1034J0404
96906 - Military Standards (Active)
Canceled/Obsolete
AS1034
0U583 - Sae International (Active)
Canceled/Obsolete
AS1034J0404
0U583 - Sae International (Active)
Canceled/Obsolete
AS4841
0U583 - Sae International (Active)
Canceled/Obsolete
AN821-4J
14397 - Faber Enterprises, Inc. (Active)
Canceled/Obsolete
AN821-4J
22995 - Crown Fitting Co Inc (Active)
Canceled/Obsolete
AS1034J0404
81343 - Society Of Automotive Engineers Inc (Replaced)
Canceled/Obsolete
AN821-4J
71563 - Collins Engineering Corp (Obsolete)
Canceled/Obsolete
AS1034
81343 - Society Of Automotive Engineers Inc (Replaced)
Canceled/Obsolete
AS4841
81343 - Society Of Automotive Engineers Inc (Replaced)
Canceled/Obsolete
AN821-4J
17341 - Tech Aero Inc (Obsolete)
Canceled/Obsolete
AN821-4J
88044 - Aeronautical Standards Group (Active)
Canceled/Obsolete

4730-00-204-3457 Technical Data Datasheet 4730-00-204-3457

Characteristic
Specifications
FIIG
A080B0
End Item Identification [AGAV]
Aircraft Application
Connection Style [AHNC]
Flared (Tube) All Ends
Connection Type [AWLS]
Threaded External Tube All Ends
Flow Angle [CRFY]
90.0 Degrees
Material [MATT]
Steel Comp 304 Overall
Nominal Outside Diameter Tube Accommodated [CWFD]
0.250 Inches 1St End
Nominal Thread Size [CQJX]
0.438 Inches All Ends
Leg Length [AHSJ]
0.890 Inches Minimum All Ends And 0.893 Inches Maximum All Ends
Material Document And Classification [MDCL]
66 Fed Std Single Material Response Overall
Seat Angle [CQRB]
37.0 Degrees All Ends
Specification/Standard Data [ZZZK]
88044-An821 Government Standard
Surface Treatment Document And Classification [STDC]
Mil-F-14072,E300,Ty2 Mil Spec Single Treatment Response Outside
Surface Treatment Document And Classification [STDC]
Mil-S-5002 Mil Spec Single Treatment Response Inside
Surface Treatment [SFTT]
Passivate Overall
Thread Class [AAJD]
3A All Ends
Thread Series Designator [THSD]
Unjf All Ends
