4730-00-202-8986
Packing Nut
4730002028986 002028986 FM-5773 302063-0111 N3-19017-15FM5773 N3-9804PC406 N3-9806PC406 N3-19017-15FM5773D DD445S5103-56PC406
An item having internal and/or external machine thread(s) (threads other than pipe or hose series), specifically designed to retain, by means or groove(s), shoulder(s), and the like, packing and/or a packing gland within a stuffing box. See also BUSHING, MACHINE THREAD; INVERTED NUT, TUBE COUPLING; and NUT, TUBE COUPLING. Excludes PACKING NUT, STUFFING TUBE; and use with electrical cable, and LOCKNUT, PIPE. View more Packing Nut
November 2023
27
Marketplace 4730-00-202-8986
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-202-8986 1+ Documents (More...)
Day 4730-00-202-8986 RQST Updated Every Day 4730-00-202-8986 RQST NE Related Documents 4730-00-202-8986
4730-00-202-8986 RQST Updated Every Day 4730-00-202-8986 RQST NE Related Documents 4730-00-202-8986 Restrictions
Restrictions 4730-00-202-8986
4730-00-202-8986 is a Packing Nut that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
End Users 4730-00-202-8986
- NASA (G900)
- Effective Date:
- 1 Apr 1991
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- NICD
- Supplementary Collaborators:
- GTHD
- Brazil (YA01)
- Effective Date:
- 1 Dec 1999
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 4730-00-202-8986
- Part Number
- Manufacturer
- Status
- 302063-0111
- Manufacturer
- 58529 - The Babcock & Wilcox Company (Replaced)
- Original Design
- Original Design
- N3-19017-15FM5773
- 58529 - The Babcock & Wilcox Company (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- N3-9804PC406
- 58529 - The Babcock & Wilcox Company (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- N3-9806PC406
- 58529 - The Babcock & Wilcox Company (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- N3-19017-15FM5773
- 55819 - Diamond Electronics Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- N3-19017-15FM5773D
- 58529 - The Babcock & Wilcox Company (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- N3-19017-15FM5773D
- 55819 - Diamond Electronics Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- N3-9804PC406
- 55819 - Diamond Electronics Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- N3-9806PC406
- 55819 - Diamond Electronics Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 302063-0111
- 55819 - Diamond Electronics Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- DD445S5103-56PC406
- 80046 - Pacific Electronics (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- N3-9804PC406
- 05073 - Babcock & Wilcox Co (Active)
- Advisory Reference
- Advisory Reference
- N3-9806PC406
- 05073 - Babcock & Wilcox Co (Active)
- Advisory Reference
- Advisory Reference
- 302063-0111
- 17590 - Diamond Power International, Inc. (Active)
- Advisory Reference
- Advisory Reference
- FM-5773
- 17590 - Diamond Power International, Inc. (Active)
- Advisory Reference
- Advisory Reference
Datasheet 4730-00-202-8986
- Characteristic
- Specifications
- FIIG
- Specifications
- T385-E
- Casehardening Indicator [AASG]
- Not Casehardened
- Material [MATT]
- Copper Alloy 464
- Length To Shoulder [BRQL]
- 1.025 Inches Minimum And 1.062 Inches Maximum
- Major Unthreaded Outside Diameter [CFQG]
- 1.312 Inches Nominal
- Screw Thread Location [BBMM]
- Internal
- Screw Thread Series Designator [AJYP]
- Unf
- Smallest Inside Diameter [BSPX]
- 0.516 Inches Nominal
- Overall Length [ABHP]
- 1.188 Inches Nominal
- Width Across Flats [ASDB]
- 1.500 Inches Nominal

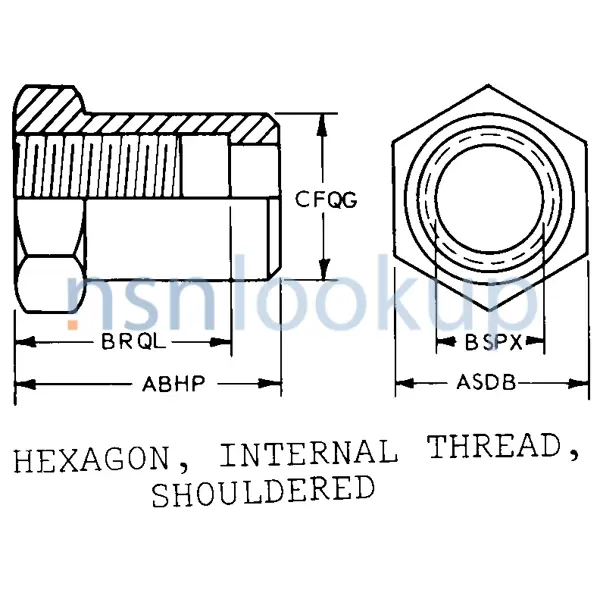

- Style Designator [STYL]
- Hexagon, Internal Thread, Shouldered
- Thread Class [AAJD]
- 3A
- Thread Direction [AAJF]
- Right-Hand
- Thread Length [AASA]
- 0.422 Inches Minimum And 0.500 Inches Maximum
- Thread Size [ABUJ]
- 1 In. -14
Weapon Systems (WSDC) 4730-00-202-8986
DLA Procurement Analysis 4730-00-202-8986
Management Data 4730-00-202-8986
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
NATO Stock Numbers Related to 4730-00-202-8986
Freight Information 4730-00-202-8986
4730-00-202-8986 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 093486. A Sub NMFC of Z. It has a NMFC Description of BOLTS,NUTS OR SCREWS, NOI (SUB 3). 4730-00-202-8986 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 48950 which rates the freight between FCL and LCL. 4730-00-202-8986 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 573 for ocean manifesting and military sealift. 4730-00-202-8986 is not classified as a special type of cargo when transported by water. 4730-00-202-8986 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
