4730-00-194-1045

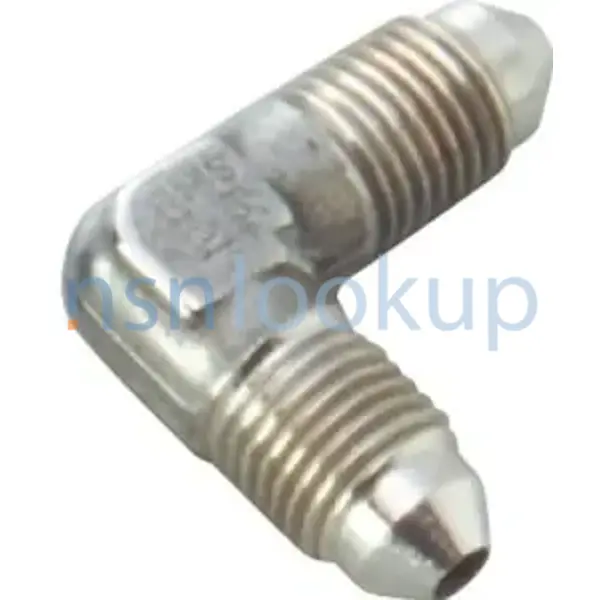

Tube Elbow
4730001941045 001941045 MIL-F-5509 AN821-12D
A fitting that forms an angle of less than 180 degrees (3.141 radians) from a straight flow. Both connecting ends have machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. It may have side or heel inlet(s). See also ELBOW, PIPE and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE. View more Tube Elbow
May 2023
34
Marketplace 4730-00-194-1045
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-194-1045 5+ Documents (More...)
MILF5509 ELBOW,TUBE RQST NS Request Quotation AN821-12D ELBOW,TUBE 96 EA NS Request Quotation MIL-F-5509
AN821-12D ELBOW,TUBE 40 EA NS Request Quotation Subscribe to View Vendor Details... 4730-00-194-1045
Restrictions 4730-00-194-1045
4730-00-194-1045 is a Tube Elbow that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-194-1045
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-194-1045
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTKE
- Romania (WR01)
- Effective Date:
- 1 Jan 2012
- Bulgaria (WU01)
- Effective Date:
- 1 Jan 2010
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Malaysia (YW01)
- Effective Date:
- 1 Aug 1997
- New Zealand (ZE01)
- Effective Date:
- 1 Nov 2003
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jun 1997
- Denmark (ZS01)
- Effective Date:
- 1 Aug 2001
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
Approved Sources 4730-00-194-1045
- Part Number
- Manufacturer
- Status
- AN821-12D
- Manufacturer
- 88044 - Aeronautical Standards Group (Active)
- Definitive Standard
- Definitive Standard
- MIL-F-5509
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
Datasheet 4730-00-194-1045
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Connection Style [AHNC]
- Connection Type [AWLS]
- Threaded External Tube All Ends
- Flow Angle [CRFY]
- 90.0 Degrees
- Material Document And Classification [MDCL]
- Qq-A-200/9 Fed Spec Single Material Response Overall
- Material [MATT]
- Aluminum Alloy 6063 Overall
- Nominal Outside Diameter Tube Accommodated [CWFD]
- 0.750 Inches All Ends
- Nominal Thread Size [CQJX]
- 1.062 Inches All Ends
- Leg Length [AHSJ]
- 1.656 Inches Nominal All Ends
- Seat Angle [CQRB]
- 37.0 Degrees All Ends
- Surface Treatment Document And Classification [STDC]
- Mil-A-8625 Mil Spec Single Treatment Response Inside
- Surface Treatment Document And Classification [STDC]
- Mil-A-8625 Mil Spec Single Treatment Response Outside
- Surface Treatment [SFTT]
- Anodize Inside
- Surface Treatment [SFTT]
- Anodize Outside
- Thread Class [AAJD]
- 3A All Ends
- Thread Series Designator [THSD]
- Unjf All Ends
Weapon Systems (WSDC) 4730-00-194-1045
DLA Procurement Analysis 4730-00-194-1045
- Last Stock Position:
- 3 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-00-194-1045
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Defense Logistics Agency (DS)
- EA
- Subscribe
- 1
- EA
- Oct 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Oct 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- Feb 2020
- Department of the Navy (DN)
- EA
- Subscribe
- 1
- EA
- Oct 2019
- Department of the Air Force (DF)
- EA
- Subscribe
- 1
- EA
- MOE
- USC
- Code
- Statement
- Order of Use
- Jump To Code
- Qty Per Assy
- UOM
- Technical Document
- Quantative Expression
- Code
- Department of the Air Force (DF)
- F
- R
- Refer To S007203961
- S007203961
- R
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4730-00-194-1045
Freight Information 4730-00-194-1045
4730-00-194-1045 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 051400. A Sub NMFC of X. It has a NMFC Description of PIPE FITTINGS ALUMINUM. 4730-00-194-1045 is rated as class 77.5 when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29700 which rates the freight between FCL and LCL. 4730-00-194-1045 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-00-194-1045 is not classified as a special type of cargo when transported by water. 4730-00-194-1045 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-00-194-1045
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- --
- --
- --
- --
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM-D5118, Type CF, Class Domestic, Corrugated Fiberboard Box
Contracting Technical Data File (CTDF) 4730-00-194-1045 October 2021
Criticality and Quality
- Critical Item Code:
- X
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- F
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
