4730-00-194-1041

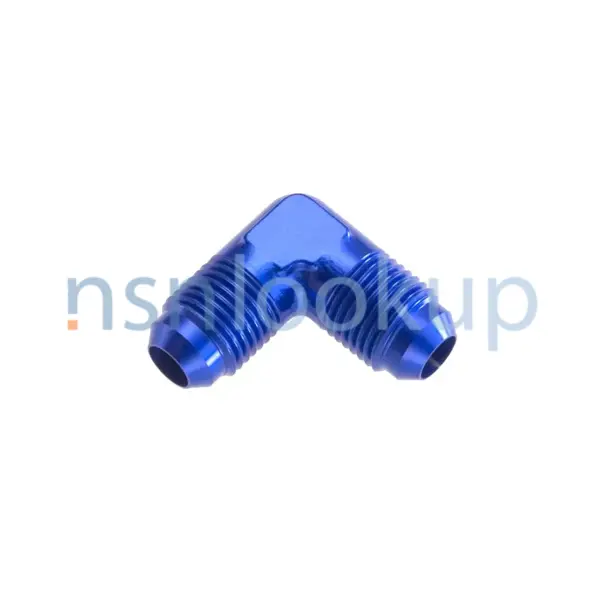

Tube To Boss Elbow

4730001941041 001941041 SAE-AS4841 AN821-40 AN821D4 3111363 AN821-4D AS1034 AS4841 2409-3209419REVEPC23 2409-3209419PC23 AS1034D0404 7500X4 7500-4 S272-1028P14 18394REVEPC23 458 880 803163

A fitting that forms an angle of less that 180 degrees (3.141 radians) from a straight flow. One connecting end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like, to form a seal at the boss. It may have side or heel inlet(s). It is designed to connect a tube or tube fitting to a boss or boss fitting on items such as tanks, housings, valve fittings, or the like. View more Tube To Boss Elbow

Managed by United States

NSN Created on 1 Jan 1963

Data Last Changed
November 2023

NATO Update Count
67

NATO Data Quality

4730-00-194-1041 ELBOW,TUBE TO BOSS 4730001941041 001941041 1/1 — 4730-00-194-1041 Photo 1/1
