4730-00-194-1034

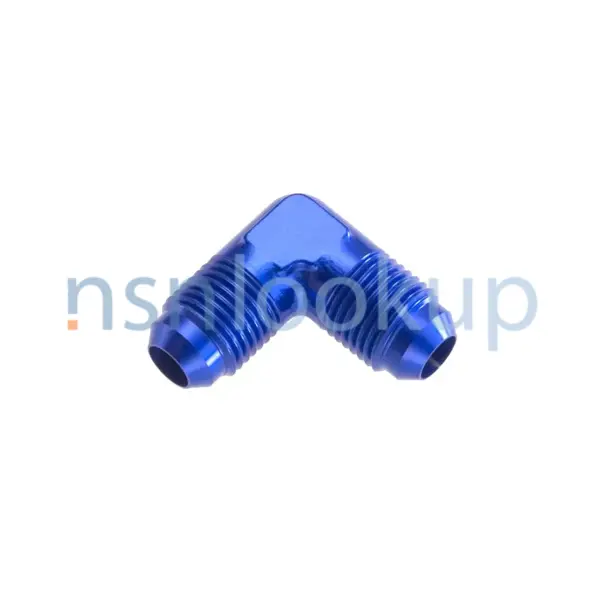

Tube To Boss Elbow
4730001941034 001941034 SAE-AS4841 AN821-60 AN821-6D AS4841 AS1034 AS1034D0606 458 882
A fitting that forms an angle of less that 180 degrees (3.141 radians) from a straight flow. One connecting end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like, to form a seal at the boss. It may have side or heel inlet(s). It is designed to connect a tube or tube fitting to a boss or boss fitting on items such as tanks, housings, valve fittings, or the like. View more Tube To Boss Elbow
Managed by United States
NSN Created on 1 Jan 1961
Data Last Changed
November 2023
November 2023
NATO Update Count
64
64
NATO Data Quality
Marketplace 4730-00-194-1034
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
458 882 ELBOW,TUBE TO BOSS RQST NS
AN821-6D ELBOW,TUBE TO BOSS 95 EA NS
AS1034 ELBOW,TUBE TO BOSS 380 EA NS
AN821-60 ELBOW,TUBE TO BOSS RQST NS
AS4841 ELBOW,TUBE TO BOSS 631 EA NS
AS1034D0606 ELBOW,TUBE TO BOSS 138 EA NS
Updated Every Day 4730-00-194-1034 RQST NE
Updated Every Day 4730-00-194-1034 RQST
Updated Every Day 4730-00-194-1034 RQST NE
Related Documents 4730-00-194-1034 5+ Documents (More...)
SAE-AS4841 AN821-60 AN821-6D AS4841 AS1034 AS1034D0606 458 882 A fitting that forms an angle of less
AN821-6D ELBOW,TUBE TO BOSS 1 EA NS Request Quotation Subscribe to View Vendor Details... 458 882 ELBOW
,TUBE TO BOSS RQST NS Request Quotation AN821-6D ELBOW,TUBE TO BOSS 95 EA NS Request Quotation AS1034
AN821-6D ELBOW,TUBE TO BOSS 1 EA NS Request Quotation Subscribe to View Vendor Details... 458 882 ELBOW
,TUBE TO BOSS RQST NS Request Quotation AN821-6D ELBOW,TUBE TO BOSS 95 EA NS Request Quotation AS1034
SAE-AS4841 7M637BK-4D AS1034W0404V AS1034 10108784 7M637 A fitting that forms an angle of less that
AN821-3D AS1034 AS1034D0303 AS4841 458 879 7500X3 A fitting that forms an angle of less that 180 degrees
Tube To Boss Elbow 4730001941034 001941034 $1 a day Upgrade your Account Upgrade 4730-00-194-1034Tube
AN821-3D AS1034 AS1034D0303 AS4841 458 879 7500X3 A fitting that forms an angle of less that 180 degrees
Tube To Boss Elbow 4730001941034 001941034 $1 a day Upgrade your Account Upgrade 4730-00-194-1034Tube
$1 a day Upgrade your Account Upgrade 4730-00-231-3992Tube To Boss Elbow4730002313992 002313992 SAE-AS4841
AS1034-0808 AS1034 AN821-8 AS4841 A fitting that forms an angle of less that 180 degrees (3.141 radians
AS4841 ELBOW,TUBE TO BOSS 33 EA NS Request Quotation AS1034 ELBOW,TUBE TO BOSS 4 EA NS Request Quotation
AS1034-0808 AS1034 AN821-8 AS4841 A fitting that forms an angle of less that 180 degrees (3.141 radians
AS4841 ELBOW,TUBE TO BOSS 33 EA NS Request Quotation AS1034 ELBOW,TUBE TO BOSS 4 EA NS Request Quotation
$1 a day Upgrade your Account Upgrade 4730-00-231-3989Tube To Boss Elbow4730002313989 002313989 SAE-AS4841
AS1034-0404 AS4841 AS1034 AN821-4 A fitting that forms an angle of less that 180 degrees (3.141 radians
$1 a day Upgrade your Account Upgrade 4730-01-628-7701Tube To Boss Elbow4730016287701 016287701 SAE-AS4841
AS1034-0404 AS4841 AS1034 AN821-4 A fitting that forms an angle of less that 180 degrees (3.141 radians
$1 a day Upgrade your Account Upgrade 4730-01-628-7701Tube To Boss Elbow4730016287701 016287701 SAE-AS4841
$1 a day Upgrade your Account Upgrade 4730-00-840-7624Tube To Boss Elbow4730008407624 008407624 SAE-AS4841
AS1034-1616 AS1034 AS4841 MS24401-16 A fitting that forms an angle of less that 180 degrees (3.141 radians
AS1034 ELBOW,TUBE TO BOSS 4 EA NS Request Quotation AS4841 ELBOW,TUBE TO BOSS 33 EA NS Request Quotation
AS1034-1616 AS1034 AS4841 MS24401-16 A fitting that forms an angle of less that 180 degrees (3.141 radians
AS1034 ELBOW,TUBE TO BOSS 4 EA NS Request Quotation AS4841 ELBOW,TUBE TO BOSS 33 EA NS Request Quotation
Restrictions 4730-00-194-1034
4730-00-194-1034 is a Tube To Boss Elbow that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. This item does not contain a precious metal.
Import and Export 4730-00-194-1034
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-194-1034
- US Army (A920)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- CT
- US Coast Guard (C911)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- C001
- Supplementary Receivers:
- XH
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- NASA (G860)
- Effective Date:
- 1 Apr 1991
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- NICD
- Supplementary Collaborators:
- GTKEJB
- Poland (WP01)
- Effective Date:
- 1 Jul 2006
- Brazil (YA01)
- Effective Date:
- 1 Aug 2000
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Columbia (YC01)
- Effective Date:
- 1 Jul 2015
- Israel (YD01)
- Effective Date:
- 1 Apr 1991
- Singapore (YJ01)
- Effective Date:
- 1 Apr 1991
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Thailand (YY01)
- Effective Date:
- 1 Feb 2015
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- Belgium (ZB01)
- Effective Date:
- 1 Apr 1991
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- New Zealand (ZE01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Portugal (ZP01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Jun 1997
- Denmark (ZS01)
- Effective Date:
- 1 Apr 1991
- Norway (ZT01)
- Effective Date:
- 1 Apr 1991
- Greece (ZU01)
- Effective Date:
- 1 Apr 1991
- Turkey (ZW01)
- Effective Date:
- 1 Nov 2005
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Sep 2004
Approved Sources 4730-00-194-1034
- Part Number
- Manufacturer
- Status
- SAE-AS4841
- Manufacturer
- 0U583 - Sae International (Active)
- Incomplete Reference
- Incomplete Reference
- AS1034D0606
- 0U583 - Sae International (Active)
- Primary Buy
- Primary Buy
- AN821-6D
- 14397 - Faber Enterprises, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AN821-6D
- 30974 - Aerofit, Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AN821-6D
- 00624 - Eaton Aeroquip Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AS4841
- 0U583 - Sae International (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AS1034
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AS4841
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AN821-6D
- 14798 - Designed Metal Connections Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AS1034
- 0U583 - Sae International (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AS1034D0606
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- AN821-6D
- 71563 - Collins Engineering Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- AN821-6D
- 06581 - Allan Aircraft Supply Co., Llc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AN821-6D
- 13899 - Hydro-Fitting Manufacturing (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AN821-6D
- 22995 - Crown Fitting Co Inc (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 458 882
- 77294 - Piper Industrial Manufacturing (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AN821-6D
- 88044 - Aeronautical Standards Group (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- AN821-60
- 88044 - Aeronautical Standards Group (Active)
- Advisory Reference
- Advisory Reference
Datasheet 4730-00-194-1034
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Connection Style [AHNC]
- Flared (Tube) All Ends
- Connection Type [AWLS]
- Threaded External Tube All Ends
- Flow Angle [CRFY]
- 90.0 Degrees
- Material [MATT]
- Aluminum Alloy Overall
- Nominal Outside Diameter Tube Accommodated [CWFD]
- 0.375 Inches All Ends
- Nominal Thread Size [CQJX]
- 0.562 Inches 2Nd End
- Leg Length [AHSJ]
- 1.062 Inches Minimum All Ends And 1.065 Inches Maximum All Ends
- Seat Angle [CQRB]
- 37.0 Degrees All Ends
- Specification/Standard Data [ZZZK]
- 88044-An821 Government Standard
- Surface Treatment [SFTT]
- Anodize Overall
- Thread Class [AAJD]
- 3A All Ends
- Thread Series Designator [THSD]
- Unjf All Ends
