4730-00-186-4967
Fluid Passage Bolt
4730001864967 001864967 8344244
A boltlike item having a concentric hole along the longitudinal centerline which may extend a part or the full length of the item. It has a hole(s) perpendicular to the axis, joining or passing through the concentric hole along the longitudinal centerline. The item is designed to distribute fluid, air, or lubricant through its body to a mating item, such as a CONNECTOR, MULTIPLE, FLUID PRESSURE LINE, bearing(s), bushing(s), or the like. The item must be capable of attaching to a block fitting and/or a tubing line or be designed to accommodate a FITTING, LUBRICATION. Excludes BOLT, INTERNALLY RELIEVED BODY; BLEEDER VALVE, HYDRAULIC SYSTEM; and BUSHING, MACHINE THREAD. See also PIN, VEHICULAR LEAF SPRING SHACKLE. View more Fluid Passage Bolt
August 2023
18
Marketplace 4730-00-186-4967
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-186-4967 2+ Documents (More...)
) 3/4 NSN 4730-00-186-4967 (Identification) 4/4 - - - - 1.
Every Day 4730-00-186-4967 RQST Updated Every Day 4730-00-186-4967 RQST NE Related Documents 4730-00
/www.nsnlookup.com /fsg-53/fsc-5310/de 5310-12-149-9762 Mutter 5310121499762 121499762,8344244-10 8344244
Every Day 5310-12-149-9762 RQST NE Restrictions https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-186-4967
Restrictions 4730-00-186-4967
4730-00-186-4967 is a Fluid Passage Bolt that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-186-4967
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-186-4967
- US Army (A920)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZBD
- US Marine Corps (MC40)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Dec 2013
- Supplementary Collaborators:
- GG
- Brazil (YA01)
- Effective Date:
- 1 Dec 1999
- Kuwait (YK01)
- Effective Date:
- 1 Jan 2015
- Canada (ZC01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Apr 1991
Approved Sources 4730-00-186-4967
- Part Number
- Manufacturer
- Status
- 8344244
- Manufacturer
- 19207 - U S Army Tank Automotive Command (Active)
- Primary Buy
- Primary Buy
Datasheet 4730-00-186-4967
- Characteristic
- Specifications
- FIIG
- Specifications
- A121A0
- Distance From Bolt End To Hole Center [BBKK]
- 0.156 Inches Nominal
- Distance From Centerline To Flat [AASY]
- 0.750 Inches Nominal
- Distance From First Radial Hole Center To End Of Bolt [BBLB]
- 2.343 Inches Nominal
- Body Style [AAQL]
- Shoulder
- Concentric Hole Depth [AAWX]
- 2.250 Inches Nominal
- Concentric Hole Diameter [AAXC]
- 0.339 Inches Minimum And 0.344 Inches Maximum
- Cotter Pin Hole Diameter [ADDV]
- 0.136 Inches Minimum And 0.141 Inches Maximum
- First Diameter From Wrenching Feature [BBKL]
- 1.498 Inches Minimum And 1.500 Inches Maximum
- First End Connection Type [ACKM]
- Threaded External Tube
- First End Nominal Thread Size [CQYM]
- 1.250 Inches
- First End Style Designator [ACKN]

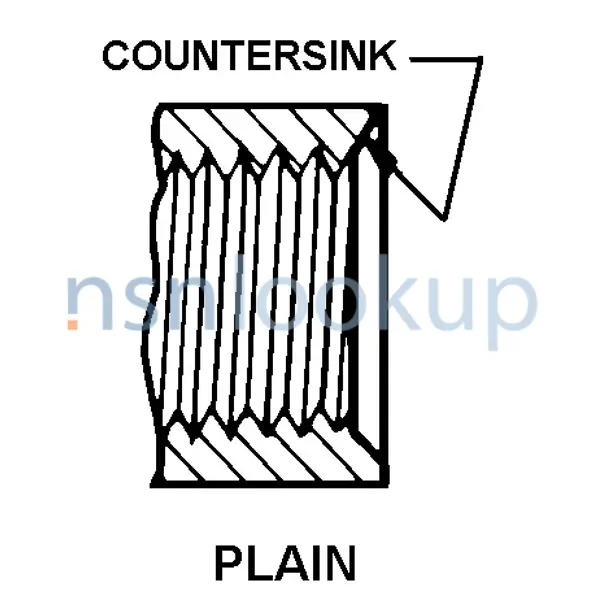

- Plain
- First End Thread Class [ACLK]
- 2A
- First End Thread Direction [ACLL]
- Right-Hand
- First End Thread Length [ATKZ]
- 0.661 Inches Nominal
- First End Thread Series Designator [CQMM]
- Unef
- First Radial Fluid Hole Diameter [BBKY]
- 0.218 Inches Nominal
- Head Diameter [AASL]
- 1.750 Inches Nominal
- Material [MATT]
- Steel Comp 1117 Or Steel Comp 1118 Or Steel Comp 1119 Or Steel Comp 1120
- Length From Bearing Surface Of Wrenching Feature To Bolt End [BBLD]
- 3.906 Inches Nominal
- Length From Bearing Surface Of Wrenching Feature To End Of First Diameter [BBKR]
- 3.115 Inches Minimum And 3.120 Inches Maximum
- Length From Bearing Surface Of Wrenching Feature To End Of Second Diameter [BBKS]
- 3.245 Inches Nominal
- Material Document And Classification [MDCL]
- Astm A108 Assn Std Single Material Response
- Second Diameter From Wrenching Feature [BBKM]
- 1.156 Inches Nominal
- Second End Connection Type [ACLS]
- Threaded Internal Pipe
- Second End Nominal Thread Size [CRNB]
- 0.125 Inches
- Second End Style Designator [ACLT]
- Plain
- Second End Thread Direction [ACMS]
- Right-Hand
- Second End Thread Length [ATLF]
- 0.312 Inches Nominal
- Second End Thread Series Designator [CRPF]
- Npsf
- Overall Length [ABHP]
- 4.410 Inches Nominal
- Wrenching Feature Height [BBLF]
- 0.500 Inches Nominal
- Wrenching Feature Style [BBDF]
- Round With Wrench Flats
- Surface Treatment Document And Classification [STDC]
- Astm B633 Assn Std 1St Treatment Response And Qq-P-416 Ty Ii,Cl 3 Fed Spec 2Nd Treatment Response
- Surface Treatment [SFTT]
- Zinc Or Cadmium
