4730-00-174-5941
Pipe Flange
4730001745941 001745941 ASME B16.5 ASAB16-5 5000S4823-64496
An item solid or split into halves, having a threaded or unthreaded hole for the purpose of connecting or retaining a pipe, tube, or hose fitting. The face of the flange may be smooth, grooved, or serrated and may be drilled for connecting bolts or studs. If the item is unthreaded, the pipe or tube may be retained by welding, brazing, compression, or the like. Excludes FLANGE, PIPE, BLIND; FERRULE, GROOVED CLAMP COUPLING; and ADAPTER (as modified). View more Pipe Flange
November 2023
12
Marketplace 4730-00-174-5941
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-174-5941 5+ Documents (More...)

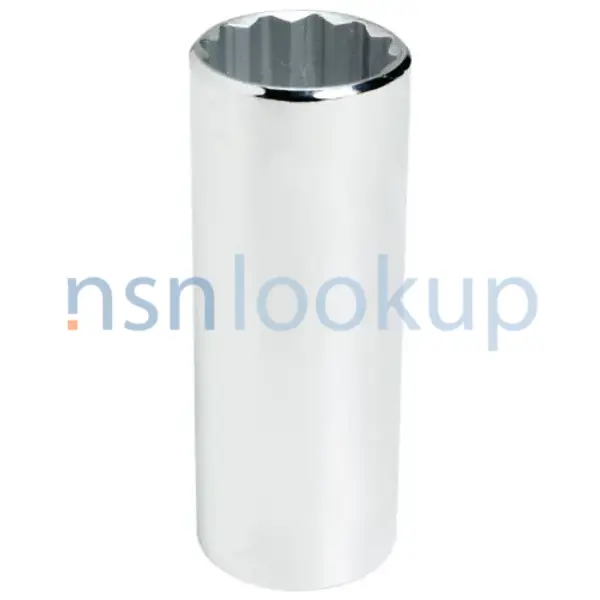

Photo 1/3 NSN 4730-00-174-5941 (Identification) 2/3 NSN 4730-00-174-5941 (Identification) 3/3 -
ASAB16-5 FLANGE 12 EA SV Request Quotation Subscribe to View Vendor Details... 5000S4823-64496 FLANGE
B16.11 ELBOW,PIPE 36 EA NS Request Quotation Subscribe to View Vendor Details... 5000S4823-64496
B16.11 ELBOW,PIPE 36 EA NS Request Quotation Subscribe to View Vendor Details... 5000S4823-64496
ASAB16-5 FLANGE,PIPE 71 EA NS Request Quotation Subscribe to View Vendor Details...
Pipe Flange 4730001745941 001745941 a day Upgrade your Account Upgrade 4730-00-174-5941Pipe Flange4730001745941
ASME-B16.5 FLANGE,PIPE 3 EA NS Request Quotation ASA-B16.5 FLANGE,PIPE 5 EA NS Request Quotation Updated
An item solid or split into halves, having a threaded or unthreaded hole for the ASME-B16.5 B16-5-
Restrictions 4730-00-174-5941
4730-00-174-5941 is a Pipe Flange that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-174-5941
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-174-5941
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- NICD
- Supplementary Collaborators:
- GTHD
Approved Sources 4730-00-174-5941
- Part Number
- Manufacturer
- Status
- ASME B16.5
- Manufacturer
- 80204 - American National Standards (Active)
- Incomplete Reference
- Incomplete Reference
- ASAB16-5
- 80204 - American National Standards (Active)
- Incomplete Reference
- Incomplete Reference
- 5000S4823-64496
- 71905 - Derbyshire Machine & Tool Co (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 5000S4823-64496
- 03958 - Mindeco Corp (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 5000S4823-64496
- 80064 - Naval Ship Systems Command (Active)
- Informational Drawing
- Informational Drawing
Datasheet 4730-00-174-5941
- Characteristic
- Specifications
- FIIG
- Specifications
- A23300
- Bolt Circle Diameter [ABKG]
- 3.500 Inches Nominal
- Bolt Hole Quantity [AECS]
- 4
- Bolt Hole Diameter [AHNX]
- 0.750 Inches Nominal
- Departure From Cited Designator [ZZZX]
- As Modified By Flange,Pipe,1 In. Nom Pipe Size
- Face Seating Surface Condition [AKWE]
- Machined
- Flange Diameter [ABKK]
- 4.875 Inches Nominal
- Flange Section Style [AJEM]
- Raised Face, Socket Neck
- Material Document And Classification [MDCL]
- Mil-S-872 Mil Spec Single Material Response
- Material [MATT]
- Steel
- Maximum Operating Temp And Media For Which Designed [CRWH]
- 850.0 Deg Fahrenheit Steam And 425.0 Deg Fahrenheit Water
- Maximum Operating Pressure And Media For Which Designed [CQCJ]
- 600.0 Pounds Per Square Inch Steam And 1000.0 Pounds Per Square Inch Water
- Neck Height [AJEG]
- 0.500 Inches Nominal
- Nominal Pipe Size For Which Designed [ACSU]
- 1.000 Inches
- Raised Face Diameter [AJEE]
- 2.750 Inches Nominal
- Raised Face Height [AJED]
- 0.250 Inches Nominal
- Socket Diameter [ABXP]
- 1.330 Inches Nominal
- Style Designator [STYL]
- Round, One Bolt Hole Circle
- Thickness [ABNM]
- 0.688 Inches Nominal
DLA Procurement Analysis 4730-00-174-5941
- Last Stock Position:
- 62 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-00-174-5941
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4730-00-174-5941
Freight Information 4730-00-174-5941
4730-00-174-5941 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052190. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FITTI. 4730-00-174-5941 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30000 which rates the freight between FCL and LCL. 4730-00-174-5941 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-00-174-5941 is not classified as a special type of cargo when transported by water. 4730-00-174-5941 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-00-174-5941
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- Special Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- --
- --
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- ASTM-D5118, Type CF, Class Weather-Resistant, Corrugated Fiberboard Box
