4730-00-163-0237

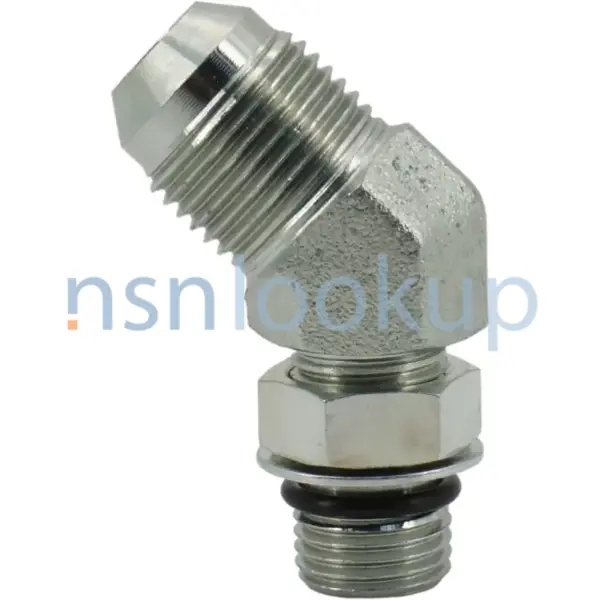

Tube To Boss Elbow
4730001630237 001630237 MIL-DTL-18866 4V5BXS 4-4 070320CA J514 9L8868 13211E8916-4 MS51528B4 MS51528A4 4BCAXC 4BCAYW 705KV2 MIL-F-18866 10395896 13211E8916
A fitting that forms an angle of less that 180 degrees (3.141 radians) from a straight flow. One connecting end has machine threads (straight threads other than pipe or hose series) designed to accommodate a tube or is unthreaded and designed to accommodate a tube. The other end has external or internal machine threads (straight threads other than pipe or hose series) and is designed to facilitate a gasket, preformed packing, washer, or the like, to form a seal at the boss. It may have side or heel inlet(s). It is designed to connect a tube or tube fitting to a boss or boss fitting on items such as tanks, housings, valve fittings, or the like. View more Tube To Boss Elbow
Managed by United States
NSN Created on 12 Nov 1971
Data Last Changed
March 2025
March 2025
NATO Update Count
63
63
NATO Data Quality
Marketplace 4730-00-163-0237
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
10395896 ELBOW,TUBE TO BOSS 117 EA NS
MS51528A4 ELBOW,TUBE TO BOSS 117 EA NS
4V5BXS ELBOW,TUBE TO BOSS 117 EA NS
MIL-F-18866 ELBOW,TUBE TO BOSS 143 EA NS
MILF18866 ELBOW,TUBE TO BOSS RQST NS
MS51528B4 ELBOW,TUBE TO BOSS 143 EA NS
MS51528A4 ELBOW,TUBE TO BOSS 399 EA NS
J514 ELBOW,TUBE TO BOSS 640 EA NS
Updated 50 Days Ago
9L8868 ELBOW, TUBE TO BOSS 1 EA NS
MIL-F-18866H ELBOW, TUBE TO BOSS 8 EA NS
MS51528A4 ELBOW, TUBE TO BOSS 10 EA NS
MS51528A4 ELBOW, TUBE TO BOSS 30 EA NS
J514 ELBOW,TUBE TO BOSS 416 EA NS
MILF18866 ELBOW,TUBE TO BOSS 7 EA NS
MIL-F-18866 ELBOW,TUBE TO BOSS 12 EA NS
4V5BXS RQST NE
Updated Every Day 4730-00-163-0237 RQST NE
Updated Every Day 4730-00-163-0237 RQST
Updated Every Day 4730-00-163-0237 RQST NE
Related Documents 4730-00-163-0237 5+ Documents (More...)
MIL-DTL-18866 4V5BXS 4-4 070320CA J514 9L8868 13211E8916-4 MS51528B4 MS51528A4 4BCAXC 4BCAYW 705KV2
MIL-F-18866 10395896 13211E8916 A fitting that forms an angle of less that 180 degrees (3.141 radians
Quotation MS51528B4 ELBOW,TUBE TO BOSS 143 EA NS Request Quotation MS51528A4 ELBOW,TUBE TO BOSS 399
MIL-F-18866 10395896 13211E8916 A fitting that forms an angle of less that 180 degrees (3.141 radians
Quotation MS51528B4 ELBOW,TUBE TO BOSS 143 EA NS Request Quotation MS51528A4 ELBOW,TUBE TO BOSS 399
12V50X-SS 13211E8916 -3 2415851-12 12V50XSS MS51528B12 MIL-F-18866 13211E8916 A fitting that forms
13211E8916 -5 24V5BX-S 2065TA-24-24S 24-070320CA J514 10504079 MS51528B24 MS51528A24 MIL-F-18866
MS51528B12 https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-163-0237 Tube To Boss Elbow 4730001630237
13211E8916 -5 24V5BX-S 2065TA-24-24S 24-070320CA J514 10504079 MS51528B24 MS51528A24 MIL-F-18866
MS51528B12 https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-163-0237 Tube To Boss Elbow 4730001630237
12V50X-SS 13211E8916-3 2415851-12 12V50XSS MS51528B12 MIL-F-18866 13211E8916 A fitting that forms
-5 24V5BX-S 2065TA-24-24S 24-070320CA J514 10504079 MS51528B24 MS51528A24 MIL-F-18866 MIL-F-18866 NIPPLE
,TUBE Request Quotation MIL-F MIL-F-18866 TRW291110-2 J514 https//www.nsnlookup.com /fsg-47/fsc-4730/
-5 24V5BX-S 2065TA-24-24S 24-070320CA J514 10504079 MS51528B24 MS51528A24 MIL-F-18866 MIL-F-18866 NIPPLE
,TUBE Request Quotation MIL-F MIL-F-18866 TRW291110-2 J514 https//www.nsnlookup.com /fsg-47/fsc-4730/
J514.
MS51528A4 ELBOW,TUBE TO BOSS 117 EA NS Request Quotation Subscribe to View Vendor Details...
MIL-F-18866 ELBOW,TUBE TO BOSS 143 EA NS Request Quotation J514 ELBOW,TUBE TO BOSS 640 EA NS Request
MS51528A4 ELBOW,TUBE TO BOSS 117 EA NS Request Quotation Subscribe to View Vendor Details...
MIL-F-18866 ELBOW,TUBE TO BOSS 143 EA NS Request Quotation J514 ELBOW,TUBE TO BOSS 640 EA NS Request
13211E8916-5 24V5BX-S 2065TA-24-24S 24-070320CA J514 10504079 MS51528B24 MS51528A24 MIL-F-18866
J514.
MIL-F-18866 ELBOW,TUBE TO BOSS 12 EA NS Request Quotation J514 ELBOW,TUBE TO BOSS 416 EA NS Request Quotation
J514.
MIL-F-18866 ELBOW,TUBE TO BOSS 12 EA NS Request Quotation J514 ELBOW,TUBE TO BOSS 416 EA NS Request Quotation
Restrictions 4730-00-163-0237
4730-00-163-0237 is a Tube To Boss Elbow that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-163-0237
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-163-0237
- US Army (A920)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- A181
- Supplementary Receivers:
- AZBD
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- US Marine Corps (MC40)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- HDKE
- Finland (WF01)
- Effective Date:
- 1 Feb 2016
- Lithuania (WI01)
- Effective Date:
- 1 Feb 2001
- Brazil (YA01)
- Effective Date:
- 1 Aug 2000
- Israel (YD01)
- Effective Date:
- 1 Aug 2016
- Australia (ZA01)
- Effective Date:
- 1 Apr 1991
- France (ZF01)
- Effective Date:
- 1 Apr 1991
- Germany (ZG01)
- Effective Date:
- 1 Apr 1991
- Republic of Korea (ZH01)
- Effective Date:
- 1 Mar 1997
- United Kingdom (ZK01)
- Effective Date:
- 1 Apr 1991
- Netherlands (ZN01)
- Effective Date:
- 1 Apr 1991
- Italy (ZR01)
- Effective Date:
- 1 Apr 1991
- Denmark (ZS01)
- Effective Date:
- 1 Sep 1997
- Greece (ZU01)
- Effective Date:
- 1 May 2006
- Turkey (ZW01)
- Effective Date:
- 1 Aug 1993
- NATO Maintenance and Supply Agency (ZX01)
- Effective Date:
- 1 Apr 1991
Approved Sources 4730-00-163-0237
- Part Number
- Manufacturer
- Status
- MS51528A4
- Manufacturer
- 96906 - Military Standards (Active)
- Definitive Standard
- Definitive Standard
- MIL-DTL-18866
- 81349 - Military Specifications (Active)
- Incomplete Standard
- Incomplete Standard
- 4V5BXS
- 30780 - Parker-Hannifin Corporation (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 4-4 070320CA
- 0U583 - Sae International (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- J514
- 0U583 - Sae International (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 9L8868
- 11083 - Caterpillar Inc (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- MS51528A4
- 0FW39 - Bae Systems Tactical Vehicle Systems (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 13211E8916-4
- 19207 - U S Army Tank Automotive Command (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- J514
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 4-4 070320CA
- 81343 - Society Of Automotive Engineers Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 4V5BXS
- 98441 - Parker Hannifin Corp (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- MIL-F-18866
- 81349 - Military Specifications (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- 10395896
- A486G - Nimikkeistokeskus Ncb Finland (Active)
- NATO Reference
- NATO Reference
- MS51528B4
- 96906 - Military Standards (Active)
- Advisory Reference
- Advisory Reference
- 13211E8916
- 19207 - U S Army Tank Automotive Command (Active)
- Informational Drawing
- Informational Drawing
- 4BCAXC
- 70434 - Anchor Swan Corp (Obsolete)
- Transferred
- Transferred
- 4BCAYW
- 70434 - Anchor Swan Corp (Obsolete)
- Transferred
- Transferred
- 4BCAXC
- 63906 - Contitech Usa, Inc. (Active)
- Transferred
- Transferred
- 4BCAYW
- 63906 - Contitech Usa, Inc. (Active)
- Transferred
- Transferred
- 705KV2
- 05415 - Linde Lift Truck Corp. (Replaced)
- Transferred
- Transferred
Datasheet 4730-00-163-0237
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Connection Style [AHNC]
- Double Threaded Section W/ Gasket And Locknut Sealing (Boss) 2Nd End
- Connection Style [AHNC]
- Flared (Tube) 1St End
- Connection Type [AWLS]
- Threaded External Boss 2Nd End
- Connection Type [AWLS]
- Threaded External Tube 1St End
- Furnished Items And Quantity [TMQY]
- 1 Flared Sleeve And 1 Locknut And 1 Preformed Packing And 1 Short Coupling Nut And 1 Flat Washer
- Flow Angle [CRFY]
- 45.0 Degrees
- Material [MATT]
- Steel Overall
- Maximum Operating Pressure [CQGM]
- 3000.0 Pounds Per Square Inch Single Response
- Nominal Outside Diameter Tube Accommodated [CWFD]
- 0.250 Inches 1St End
- Nominal Thread Size [CQJX]
- 0.438 Inches All Ends
- Leg Length [AHSJ]
- 1.050 Inches Nominal 2Nd End
- Leg Length [AHSJ]
- 0.720 Inches Nominal 1St End
- Seat Angle [CQRB]
- 37.0 Degrees 1St End
- Specification/Standard Data [ZZZK]
- 81349-Mil-F-18866 Government Specification
- Surface Treatment Document And Classification [STDC]
- J514 Assn Std Single Treatment Response Overall
- Thread Class [AAJD]
- 2A All Ends
- Thread Series Designator [THSD]
- Unf All Ends
