4730-00-162-9775

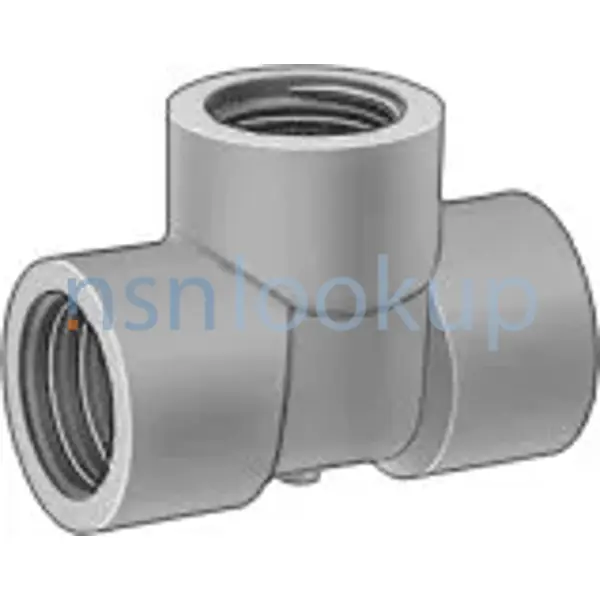

Pipe Tee
4730001629775 001629775 4589K42 05014007 9805-005
A fitting having three connections with the branch connection fixed at 90 degrees (1.5705 radians) to the run. The connections have standard pipe threads or 1s unthreaded and designed to accommodate a pipe. It may have side inlet(s). It is used as a junction at the intersection of pipe or pipe fittings. View more Pipe Tee
November 2023
20
Marketplace 4730-00-162-9775
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-162-9775 5+ Documents (More...)
Updated Every Day 4589K42 RQST NE Updated Every Day 4730-00-162-9775 RQST NE Updated Every Day 4730-
( More... ) https//www.nsnlookup.com /fsg-47/fsc-4730/us 4730-00-162-9775 Pipe Tee 4730001629775 001629775,4589K42
Pipe Tee 4730001629775 001629775,4589K42 Related Documents 4730-00-162-9775 2+ Documents https/
AssyUOMTechnical DocumentQuantative ExpressionDefense Logistics Agency (DS)IAConsolidated With 4730-00-162-9775
Restrictions 4730-00-162-9775
4730-00-162-9775 is a Pipe Tee that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-162-9775
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-162-9775
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- NASA (G860)
- Effective Date:
- 1 Apr 1991
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Supplementary Collaborators:
- GT
Approved Sources 4730-00-162-9775
- Part Number
- Manufacturer
- Status
- 4589K42
- Manufacturer
- 39428 - Mcmaster-Carr Supply Co (Active)
- Primary Buy
- Primary Buy
- 05014007
- 14007 - Nibco Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 9805-005
- 14889 - George Fischer Sloane, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
Datasheet 4730-00-162-9775
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Material [MATT]
- Plastic Chlorinated Polyvinylchloride Overall
- Material Document And Classification [MDCL]
- Astmd-1784,Class 23447-B Assn Std Single Material Response Overall
- Media For Which Designed [MEDA]
- Water Single Response
- Maximum Operating Pressure [CQGM]
- 2000.0 Pounds Per Square Inch Single Response
- Maximum Operating Temp [AEHZ]
- 85.0 Deg Celsius Single Response
- Connection Type [AWLS]
- Threaded Internal Pipe All Ends
- Connection Style [AHNC]
- Plain (Pipe) All Ends
- Thread Series Designator [THSD]
- Npt All Ends
- Nominal Thread Size [CQJX]
- 0.500 Inches All Ends
- Pipe Wall Thickness Designation For Which Designed [CWFG]
- Schedule 80 All Ends
- Leg Length [AHSJ]
- 1.375 Inches Nominal All Ends
Weapon Systems (WSDC) 4730-00-162-9775
DLA Procurement Analysis 4730-00-162-9775
- Last Stock Position:
- 212 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-00-162-9775
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Defense Logistics Agency (DS)
- EA
- Subscribe
- EA
- Jan 2022
- Defense Logistics Agency (DS)
- EA
- Subscribe
- EA
- Dec 2021
- Defense Logistics Agency (DS)
- EA
- Subscribe
- EA
- Nov 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- Jan 2021
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
- Feb 2020
- Department of the Air Force (DF)
- EA
- Subscribe
- EA
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4730-00-162-9775
Freight Information 4730-00-162-9775
4730-00-162-9775 has freight characteristics managed by Germany.It has a National Motor Freight Classification (NMFC) of 156600. A Sub NMFC of Z. It has a NMFC Description of PLASTIC/RUBBER ARTICLE VIZ:. 4730-00-162-9775 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 77670 which rates the freight between FCL and LCL. 4730-00-162-9775 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 772 for ocean manifesting and military sealift. 4730-00-162-9775 is not classified as a special type of cargo when transported by water. 4730-00-162-9775 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-00-162-9775
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Bare Metal Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- --
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- No Requirement
- Not Applicable
- Bags made of material conforming to MIL-P-130, MIL-DTL-17667, MIL-PRF-121, or any material authorized by MIL-DTL-117. Closure may be by staples, tape, adhesive or heat seal
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
Contracting Technical Data File (CTDF) 4730-00-162-9775 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- Z
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
