4730-00-144-4948

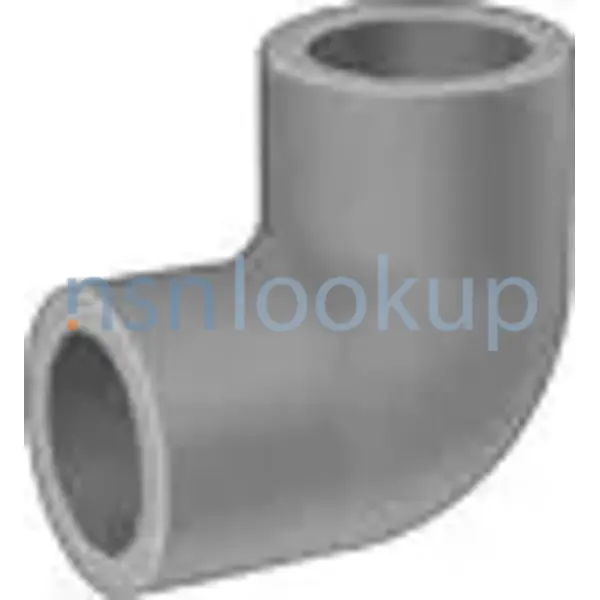

Pipe Elbow
4730001444948 001444948 ASTMD2467 01001009 806-010 0031120-010 4881K23 806-010PVC N31110 8134
A fitting that forms an angle of less than 180 degrees (3.141 radians) from the straight flow. Both connecting ends have standard pipe threads or are unthreaded and designed to accommodate a pipe. It may have side or heel inlet(s). See also ELBOW, TUBE; and CONNECTOR, MULTIPLE, FLUID PRESSURE LINE. Excludes BEND, SOIL PIPE. View more Pipe Elbow
Managed by United States
NSN Created on 15 Jan 1973
Data Last Changed
November 2023
November 2023
NATO Update Count
26
26
NATO Data Quality
Marketplace 4730-00-144-4948
Need Help?
Request a Quotation from participating marketplace vendors
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-144-4948 5+ Documents (More...)
ASTMD2467 01001009 806-010 0031120-010 4881K23 806-010PVC N31110 8134 A fitting that forms an angle
to View Vendor Details... -8134 ELBOW,PIPE RQST NS Request Quotation 8134 ELBOW,PIPE RQST NS Request
Quotation Updated Every Day 4881K23 RQST NE Updated Every Day 4730-00-144-4948 RQST NE Updated Every
to View Vendor Details... -8134 ELBOW,PIPE RQST NS Request Quotation 8134 ELBOW,PIPE RQST NS Request
Quotation Updated Every Day 4881K23 RQST NE Updated Every Day 4730-00-144-4948 RQST NE Updated Every
Upgrade for $1 a day Upgrade your Account Upgrade 4730-01-253-7323Pipe Elbow4730012537323 012537323 4881K23
Request a Quotation from participating marketplace vendors Request Updated Every Day 4881K23 RQST NE
Pipe Elbow 4730001444948 001444948 Upgrade 4730-00-144-4948Pipe Elbow4730001444948 001444948 ASTMD2467
Request a Quotation from participating marketplace vendors Request Updated Every Day 4881K23 RQST NE
Pipe Elbow 4730001444948 001444948 Upgrade 4730-00-144-4948Pipe Elbow4730001444948 001444948 ASTMD2467
Vendor Details... 8-060-10 ELBOW,PIPE RQST NS Request Quotation Subscribe to View Vendor Details... 8134
NS Request Quotation 8/134 ELBOW,PIPE 2 EA NS Request Quotation Subscribe to View Vendor Details... 8134
ELBOW,PIPE 52 EA NS Request Quotation Subscribe to View Vendor Details... 8134 ELBOW,PIPE 197 EA NS
NS Request Quotation 8/134 ELBOW,PIPE 2 EA NS Request Quotation Subscribe to View Vendor Details... 8134
ELBOW,PIPE 52 EA NS Request Quotation Subscribe to View Vendor Details... 8134 ELBOW,PIPE 197 EA NS
Vendor Details... 8-060-10 ELBOW,PIPE RQST NS Request Quotation Subscribe to View Vendor Details... 8134
Request Quotation 806010 ELBOW,PIPE 10 EA NS Request Quotation Subscribe to View Vendor Details... 8134
ELBOW,PIPE 52 EA NS Request Quotation Subscribe to View Vendor Details... 8134 ELBOW,PIPE 197 EA NS
Request Quotation 806010 ELBOW,PIPE 10 EA NS Request Quotation Subscribe to View Vendor Details... 8134
ELBOW,PIPE 52 EA NS Request Quotation Subscribe to View Vendor Details... 8134 ELBOW,PIPE 197 EA NS
: 9999-99-601-3138 is a Pipe Elbow Similar Supply Items to 9999-99-601-3138 4730-01-321-6408 4730-00-144-4948
Restrictions 4730-00-144-4948
4730-00-144-4948 is a Pipe Elbow that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-144-4948
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-144-4948
- US Army (A920)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- A181
- US Air Force (FXGC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- FXAX
- NASA (G26X)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- G26C
- Supplementary Receivers:
- 26
- NASA (G860)
- Effective Date:
- 1 Apr 1991
- US Marine Corps (MC40)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- MC01
- US Navy (N9BC)
- Effective Date:
- 1 Apr 2005
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTHXHD
- Poland (WP01)
- Effective Date:
- 1 Jun 2006
- Spain (YB01)
- Effective Date:
- 1 Apr 1991
- Australia (ZA01)
- Effective Date:
- 1 May 2014
- Canada (ZC01)
- Effective Date:
- 1 Sep 2000
- Greece (ZU01)
- Effective Date:
- 1 Jun 2005
- Turkey (ZW01)
- Effective Date:
- 1 Nov 1998
Approved Sources 4730-00-144-4948
- Part Number
- Manufacturer
- Status
- ASTMD2467
- Manufacturer
- 81346 - American Society For Testing And (Active)
- Incomplete Reference
- Incomplete Reference
- 01001009
- 61623 - Nibco Inc Chemtrol Div (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 806-010
- 61623 - Nibco Inc Chemtrol Div (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 806-010
- 96405 - Lasco Industries (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 0031120-010
- 54119 - Cleveland Service Center (Active)
- Incomplete Secondary Reference
- Incomplete Secondary Reference
- 806-010PVC
- 14889 - George Fischer Sloane, Inc. (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- N31110
- 11321 - Celanese Piping Systems Inc Sub Of (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 8134
- 27286 - Eslon Thermoplastics Inc (Obsolete)
- Canceled/Obsolete
- Canceled/Obsolete
- 01001009
- 14007 - Nibco Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 806-010
- 14007 - Nibco Inc (Replaced)
- Canceled/Obsolete
- Canceled/Obsolete
- 4881K23
- 39428 - Mcmaster-Carr Supply Co (Active)
- Transferred
- Transferred
Datasheet 4730-00-144-4948
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Material [MATT]
- Plastic Polyvinyl Chloride Overall
- Maximum Operating Pressure [CQGM]
- 630.0 Pounds Per Square Inch Single Response
- Maximum Operating Temp [AEHZ]
- 65.6 Deg Celsius Single Response
- Connection Type [AWLS]
- Unthreaded Internal Pipe 1St End
- Connection Style [AHNC]
- Socket (Pipe) 1St End
- Nominal Pipe Size Accommodated [AAAR]
- 1.000 Inches 1St End
- Pipe Wall Thickness Designation For Which Designed [CWFG]
- Schedule 80 1St End
- Leg Length [AHSJ]
- 1.875 Inches Nominal All Ends
- Reduced Passage Nominal Inside Diameter [CWFN]
- 0.750 Inches All Ends
Weapon Systems (WSDC) 4730-00-144-4948
DLA Procurement Analysis 4730-00-144-4948
- Last Stock Position:
- 3600 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-00-144-4948
- Effective Date
- Organization
- Unit of Issue
- Unit Price
- Qty Unit Pack
- Unit of Issue
- Oct 2022
- Defense Logistics Agency (DS)
- FY
- Subscribe
- 1
- FY
- Nov 2021
- Department of the Air Force (DF)
- FY
- Subscribe
- 1
- FY
- Oct 2021
- US Marine Corps (DM)
- FY
- Subscribe
- 1
- FY
- Nov 2020
- Department of the Air Force (DF)
- FY
- Subscribe
- 1
- FY
- Feb 2020
- Department of the Air Force (DF)
- FY
- Subscribe
- 1
- FY
Army
- Materiel Category and Inventory Manager:
- J
- Ground Forces Support Materiel (DLA/GSA Items)
- Appropriation and Budget Activity:
- 2
- Stock Fund Secondary Items
- Management Inventory Segment:
- 2
- Non-Repairable Items(Exclusive of Insurance and Provisioning Items)
This code will be used to identify items, which are not reparable.
- Weapons System / End Item / Homogeneous Group:
- 00
- DLA/GSA Material
DLA/GSA-Managed Items that cannot be identified to a specific Army Weapons Systems/End Item
- Accounting Requirements:
- X
- Expendable item.An item of Army property coded with an ARC of X in the AMDF. Expendable items require no formal accountability after issue from a stock record account.Commercial and fabricated items similar to items coded X in the AMDF are considered expendable items.
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Marine Corps
- Stores Account:
- 1
- Stock Fund Account Item
- Combat Essentiality:
- 5
- Critical Repair Part to a Combat Essential End Item
- Echelon Management:
- B2
- Operational Test:
- No Special Procedures
Similar Supply Items to 4730-00-144-4948
Freight Information 4730-00-144-4948
4730-00-144-4948 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052190. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FITTI. 4730-00-144-4948 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 30000 which rates the freight between FCL and LCL. 4730-00-144-4948 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-00-144-4948 is not classified as a special type of cargo when transported by water. 4730-00-144-4948 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-00-144-4948
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- Non-Metallic Item
- Over 10lb
- Less than 85G
- No Requirement
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- Physical Protection
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- --
- No Requirement
- Not Applicable
- PPP-B-566, PPP-B-676, or ASTM-D5118, Folding, Setup or Fiberboard Box
- No special marking
- --
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- --
Procurement History 4730-00-144-4948 3 Records
Contracting Technical Data File (CTDF) 4730-00-144-4948 October 2021
Criticality and Quality
- Critical Item Code:
- Flight Safety:
- Life Support:
- Certified Samples:
- Serialization:
- First Article Test (FAT):
- Certificate of Quality Compliance:
- Production Lot Testing:
- Special Testing:
- Qualified Products List (QPL):
Commercial Properties
- Government Furnished Material:
- Government Furnished Tooling:
- Government Furnished Property:
- Price Evaluation Code:
- Diminshing Manufacturing Sources:
- Warranty:
- Commerical Off The Shelf (COTS):
- End Item Application:
- Auctioning Candidate:
- Source of Procurement:
- Contract Option:
Restrictions
- Boeing Rights Guard:
- Export Controlled:
- Controlled Technical Data Package (TDP):
- Restricted Technical Data Package (TDP):
- Contains Classified Material
- Weapons System Indicator Code (WSIC):
- S
Packaging Requirements
- Packaging Determination Table:
- Packaging Review Code:
- N
- Special Packaging Instruction Number (SPIN):
- Special Packaging Instruction Number Revision:
- Special Packaging Instruction Number Date:
- Pallet Reference Number Required:
