4730-00-126-7917

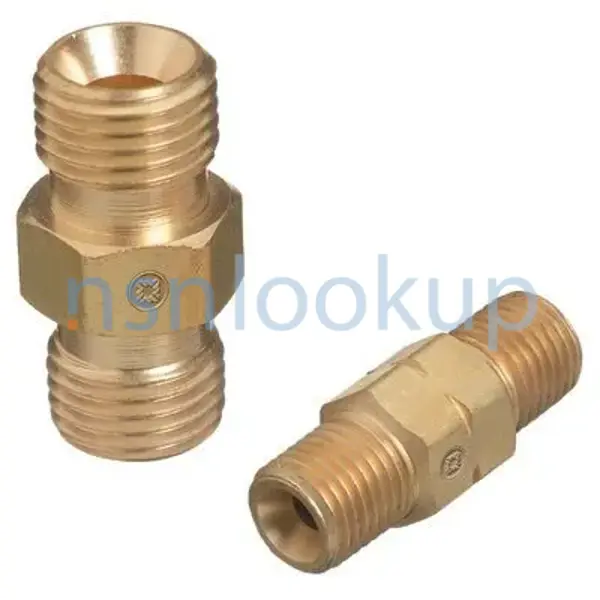

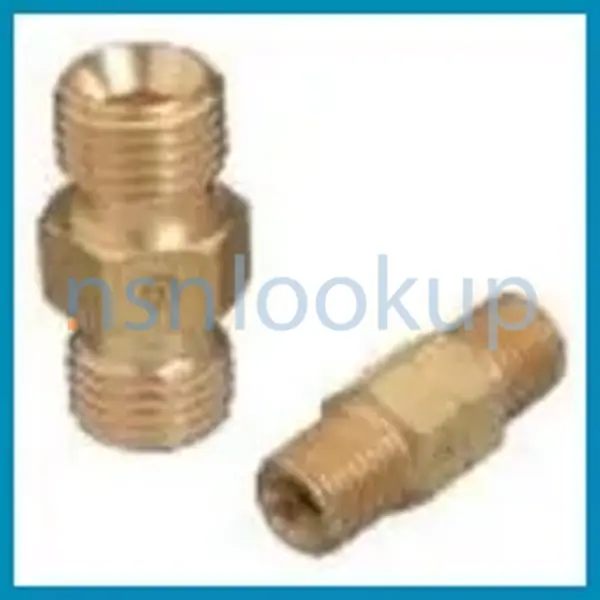

Tube Nipple
4730001267917 001267917 COUPLER,RH ITEM 30 C50 WES-30
A straight, one-piece fitting used to join a tube or tube fitting to another tube or tube fitting. It may have any type externally threaded tube connections of the same size on both ends and is usually shaped externally at the center to accommodate a wrench. It may include nuts, sleeves, and/or grommets. View more Tube Nipple
November 2023
7
Marketplace 4730-00-126-7917
Request a Quotation from participating marketplace vendors
Related Documents 4730-00-126-7917 5+ Documents (More...)
C50 NIPPLE,TUBE 10 EA NS Request Quotation 30 NIPPLE,TUBE 10 EA NS Request Quotation Subscribe to View
WES-30 NIPPLE,TUBE 2 EA NS Request Quotation C50 NIPPLE,TUBE 3 EA NS Request Quotation 30 NIPPLE,TUBE
/2 49045705 Managed by Denmark NSN Created on 30 May 1995 Data Last Changed January 2023 NATO Update
www.nsnlookup.com /fsg-65/fsc-6520/dk 6520-22-123-5743 50 Diamond Lamineer 6520221235743221235743 LTA-C50
Restrictions 4730-00-126-7917
4730-00-126-7917 is a Tube Nipple that does not have a nuclear hardened feature or any other critical feature such as tolerance, fit restriction or application. Demilitarization of this item has been confirmed and is not currently subject to changes. This item is considered a low risk when released from the control of the Department of Defense. The item may still be subject to the requirements of the Export Administration Regulations (EAR) and the Code of Federal Regulations (CFR). This item is not suspected to be hazardous. The precious metals content of this item is unknown.
Import and Export 4730-00-126-7917
- Schedule B
- Subscribe to View Schedule B
- HTS Code
- Subscribe to View HTS Code
End Users 4730-00-126-7917
- US Air Force (FXGC)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- FXAX
- NASA (G860)
- Effective Date:
- 1 Apr 1991
- US Navy (N9BC)
- Effective Date:
- 1 Aug 2004
- Former MOE Rule:
- N9CD
- Supplementary Collaborators:
- GTJNHXHD
- Spain (YB01)
- Effective Date:
- 1 Oct 2003
Approved Sources 4730-00-126-7917
- Part Number
- Manufacturer
- Status
- 30
- Manufacturer
- 16166 - Western Enterprises Div Of Scott And (Active)
- Primary Buy
- Primary Buy
- C50
- 52929 - Superior Products, Llc. (Active)
- Secondary Buy
- Secondary Buy
- WES-30
- 16166 - Western Enterprises Div Of Scott And (Active)
- Canceled/Obsolete
- Canceled/Obsolete
- COUPLER,RH ITEM
- 16166 - Western Enterprises Div Of Scott And (Active)
- Advisory Reference
- Advisory Reference
Datasheet 4730-00-126-7917
- Characteristic
- Specifications
- FIIG
- Specifications
- A080B0
- Connection Style [AHNC]
- Inverted Flare (Tube) All Ends
- Connection Type [AWLS]
- Threaded External Tube All Ends
- Material [MATT]
- Copper Alloy Overall Or Copper Alloy 360 Overall
- Media For Which Designed [MEDA]
- Fluid 1St Response
- Media For Which Designed [MEDA]
- Gas 2Nd Response
- Nominal Outside Diameter Tube Accommodated [CWFD]
- 0.375 Inches All Ends
- Nominal Overall Length [CWFR]
- 1.258 Inches
- Nominal Thread Size [CQJX]
- 0.562 Inches All Ends
- Leg Length [AHSJ]
- 0.465 Inches Nominal 2Nd End
- Leg Length [AHSJ]
- 0.475 Inches Nominal 1St End
- Seat Angle [CQRB]
- 12.0 Degrees All Ends
- Style Designator [STYL]
- Inverted Flare W/ Center Wrenching Facility
- Thread Class [AAJD]
- 2A All Ends
- Thread Series Designator [THSD]
- Unf All Ends
Weapon Systems (WSDC) 4730-00-126-7917
DLA Procurement Analysis 4730-00-126-7917
- Last Stock Position:
- 404 In Stock
- DLA Administrative Lead Time:
- Subscribe
- DLA Production Lead Time:
- Subscribe
Management Data 4730-00-126-7917
Navy
- Cognizance:
- 9B
- Navy-owned stocks of DLA material
Naval Inventory Control Point, Mechanicsburg
Similar Supply Items to 4730-00-126-7917
Freight Information 4730-00-126-7917
4730-00-126-7917 has freight characteristics.It has a National Motor Freight Classification (NMFC) of 052185. A Sub NMFC of Z. It has a NMFC Description of PIPE,TUBING,OR PIPE OR TUBING FIT. 4730-00-126-7917 is rated as a variable freight class when transported by Less-Than Truckload (LTL) freight. It has a Uniform Freight Classification (UFC) number of 29950 which rates the freight between FCL and LCL. 4730-00-126-7917 has a variance between NMFC and UFC when transported by rail and the description should be consulted. It has a Water Commodity Code (WCC) of 576 for ocean manifesting and military sealift. 4730-00-126-7917 is not classified as a special type of cargo when transported by water. 4730-00-126-7917 is not a consolidation and does not exceed 84" in any dimension. It should be compatible with a standard 72" Aircraft Cargo Door when transported by air.
Packaging Data 4730-00-126-7917
- Responsible Activity
- Packaging Data Source
- Primary Inventory Control Activity (PICA)
- --
Item Pack Level (Unpackaged)
- Item Size
- Item Weight
- Characteristics
- Weight/Dimensions Category
- Fragility
- Item Preservation
- Item Weight
- --
- --
- --
- --
- --
- --
Unit Pack Level (Packaged)
- Quantity per Pack
- Unit Size
- Unit Weight
- Unit Cube
- Preservation Method
- Cleaning/Drying
- Unit Size
- 1
- --
- --
- --
- --
- Any Suitable Process
- --
- Preservation Material
- Wrapping Material
- Cushioning/Dunnage
- Cushioning Thickness
- Container
- Special Marking
- Wrapping Material
- No Requirement
- No Requirement
- --
- --
- --
- No special marking
- No Requirement
Intermediate Pack Level
- Quantity of Unit Packs
- Container
- Any Suitable Fiber Box
